How do you measure a standard-size excavator boom and arm?

Excavators are essential machines in the construction and mining industries, known for their versatility and power. At the heart of an excavator's functionality lies its boom and arm, which together form the digging mechanism. Understanding how to accurately measure these components is crucial for various reasons, including maintenance, replacement, and performance optimization. In this comprehensive guide, we'll explore the intricacies of measuring standard size excavator booms and arms, ensuring you have the knowledge to maintain and operate your equipment effectively.

How to measure the length of the boom accurately?

Measuring the length of an excavator boom requires precision and attention to detail. The boom is the larger of the two main components that make up the excavator's arm assembly. It's the part that connects to the excavator's main body and supports the stick (or arm). Here's a step-by-step guide to accurately measure the boom length:

1. Preparation: Ensure the excavator is on level ground and the boom is fully extended and lowered to a horizontal position. This positioning allows for the most accurate measurement.
2. Identify measurement points: The boom length is typically measured from the center of the boom foot pin (where it connects to the excavator body) to the center of the boom-to-arm pin (where the boom connects to the stick).
3. Use appropriate tools: A long tape measure or laser distance meter is ideal for this task. For larger excavators, you might need a helper to hold the other end of the tape measure.
4. Take multiple measurements: To ensure accuracy, take at least three measurements and calculate the average. This helps account for any slight discrepancies in your measuring technique.
5. Account for curvature: Some booms have a slight curve. In this case, measure along the outer edge of the boom to get the most accurate length.
6. Record the measurements: Note down the measurements, including the unit of measurement (usually in feet and inches or meters).

It's important to note that boom lengths can vary significantly between different excavator models and sizes. Standard-size excavator booms typically range from 15 to 30 feet (4.5 to 9 meters) for medium to large excavators, but always refer to the manufacturer's specifications for your particular model.

What is the correct method to measure an excavator arm?

The excavator arm, also known as the stick, is the second major component of the digging mechanism. It connects to the boom at one end and the bucket at the other. Measuring the arm accurately is just as crucial as measuring the boom. Here's the correct method to measure an excavator arm:

1. Position the excavator: Similar to measuring the boom, ensure the excavator is on level ground. Extend the arm fully and position it horizontally.
2. Identify measurement points: The arm length is measured from the center of the boom-to-arm pin to the center of the arm-to-bucket pin.
3. Use proper tools: Again, a long tape measure or laser distance meter will be most effective. For consistency, use the same tool you used to measure the boom.
4. Measure carefully: Stretch the tape measure from one pin center to the other. Ensure the tape is straight and not sagging.
5. Take multiple measurements: As with the boom, take at least three measurements and calculate the average for the most accurate result.
6. Consider arm configuration: Some excavators have different arm options (e.g., standard reach, long reach). Make sure you're aware of which configuration you're measuring.
7. Record the results: Note down the measurements, including the unit and any specific details about the arm configuration.

Standard-size excavator arms typically range from 8 to 20 feet (2.4 to 6 meters), depending on the size and model of the excavator. The arm length is often shorter than the boom length, but this can vary based on the excavator's design and intended use.

How does measurement accuracy impact performance and maintenance?

Accurate measurements of the excavator boom and arm are not just about having the right numbers on paper. They have significant implications for both the performance of the machine and its maintenance requirements. Let's explore how measurement accuracy impacts these crucial aspects:

Performance Impact:

1. Digging depth and reach: Precise measurements ensure that operators know the exact capabilities of their machine. This knowledge allows for more efficient planning and execution of excavation tasks.
2. Load calculation: The lengths of the boom and arm are crucial factors in calculating the excavator's lifting capacity. Inaccurate measurements could lead to overloading, which is dangerous and can damage the machine.
3. Fuel efficiency: Understanding the exact dimensions of the boom and arm helps operators work within the machine's optimal range, potentially improving fuel efficiency.
4. Precision in operations: In tasks requiring high precision, such as in urban construction or landscaping, knowing the exact reach and movement range of the excavator is essential for avoiding accidents and completing tasks efficiently.

Maintenance Impact:

1. Part replacement: When components of the boom or arm need replacement, accurate measurements ensure that the correct parts are ordered and fitted. This prevents costly mistakes and reduces downtime.
2. Wear and tear assessment: Regular measurements can help detect changes in the boom and arm dimensions over time, indicating wear or deformation that might require attention.
3. Hydraulic system maintenance: The boom and arm lengths affect the hydraulic system's performance. Accurate measurements help in maintaining the correct hydraulic pressure and fluid levels.
4. Alignment checks: Precise measurements are crucial for checking and maintaining proper alignment of the boom and arm, which is essential for optimal performance and longevity of the equipment.
5. Warranty and compliance: Many manufacturers require accurate reporting of component measurements for warranty claims or regulatory compliance. Inaccurate measurements could lead to denied claims or non-compliance issues.

Moreover, accurate measurements play a vital role in the overall lifecycle management of the excavator. They contribute to more precise scheduling of maintenance activities, better forecasting of part replacements, and more accurate budgeting for repairs and upgrades. This proactive approach to maintenance, based on accurate data, can significantly extend the lifespan of the excavator and improve its resale value.

In the rapidly evolving construction industry, where efficiency and precision are paramount, the importance of accurate measurements cannot be overstated. As excavators become more advanced, incorporating technologies like GPS and machine control systems, the need for precise dimensional data becomes even more critical. These systems rely on accurate boom and arm measurements to function correctly, further emphasizing the need for meticulous measurement practices.

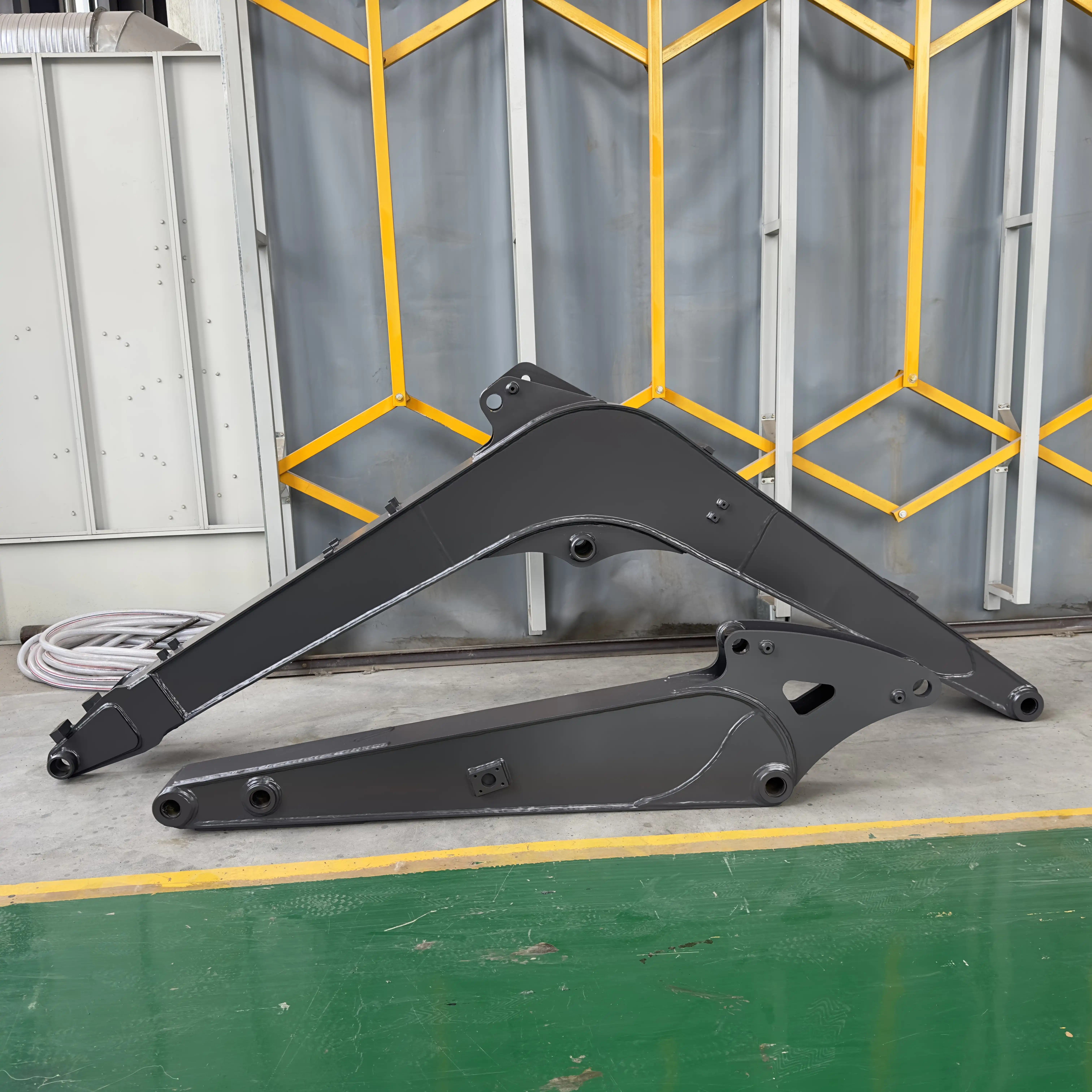

Standard Size Excavator Boom And Arm

Understanding how to measure a standard size excavator boom and arm is crucial for optimal performance, efficient maintenance, and safe operation. By following the correct measurement techniques for both the boom and arm, operators and maintenance teams can ensure their excavators are working at peak efficiency. The impact of accurate measurements extends far beyond mere numbers, influencing everything from day-to-day operations to long-term equipment management strategies.

For those seeking high-quality excavator components, Tiannuo Machinery stands at the forefront of the industry. As a leading company in excavator multifunctional equipment, Tiannuo Machinery offers standard size excavator booms and arms that meet the highest standards of quality and performance. Their products, made from high-strength steel, boast impressive specifications including a maximum reach of up to 15 meters and a lifting capacity of up to 30 tons.

What sets Tiannuo Machinery apart is not just the quality of its products, but also its commitment to customer satisfaction. They offer customization services to meet specific needs, ensuring that each client gets exactly what their project requires. Safety is paramount in their design philosophy, with features like overload protection and reinforced stability built into every boom and arm.

Furthermore, Tiannuo Machinery stands behind their products with a 1-year warranty, providing peace of mind to their customers. Their standard size excavator booms and arms are compatible with all major excavator brands, making them a versatile choice for any fleet.

For more information or to discuss your specific excavator equipment needs, don't hesitate to reach out to Tiannuo Machinery. You can contact their manager at arm@stnd-machinery.com, or get in touch with their team at rich@stnd-machinery.com and tn@stnd-machinery.com. Their expertise and high-quality products can help elevate your excavation projects to new heights of efficiency and performance.
