What is the arm length of an excavator?

January 14, 2025

Excavators are versatile machines used in construction, mining, and various other industries. One of the key components that determine an excavator's capabilities is its arms length. Understanding the arm length of an excavator is crucial for selecting the right machine for specific job requirements. In this comprehensive guide, we'll explore the concept of excavator arm length, standard options, and how it impacts performance.

blog-1280-1280

What are the standard arm length options for excavators?

Excavator arm lengths typically come in three standard configurations: short, standard, and long. These options allow operators to choose the most suitable arm length for their specific applications. Let's delve into each of these options:

1. Short Arm: A short arm provides increased breakout force and lifting capacity. It's ideal for tasks that require maximum digging power in confined spaces. Short arms are commonly used in applications such as trenching, excavating in tight areas, and heavy lifting operations.

2. Standard Arm: The standard arm length offers a balance between digging depth and breakout force. It's the most versatile option, suitable for a wide range of applications. Standard arms are commonly used in general excavation, landscaping, and utility work.

3. Long Arm: A long arm provides increased reach and digging depth. It's ideal for applications that require extended reach, such as deep excavation, slope finishing, and working on large job sites. Long arms are also useful for loading trucks and reaching over obstacles.

It's important to note that the specific lengths for short, standard, and long arms can vary depending on the excavator's size and manufacturer. For instance, a standard arm length for a 20-ton excavator might be considered long for a 10-ton machine. Therefore, it's crucial to consult the manufacturer's specifications when selecting an arms length.

How does arm length impact digging depth and reach?

The arm length of an excavator significantly influences its digging depth and reach capabilities. Understanding this relationship is crucial for selecting the right excavator for your project. Let's examine how excavator arm length affects these important performance metrics:

1. Digging Depth: Generally, a longer arm allows for greater digging depth. This is particularly beneficial when working on projects that require deep excavation, such as installing underground utilities or digging foundations. However, it's important to note that while a longer arm increases digging depth, it may reduce the machine's lifting capacity and breakout force.

2. Reach: Arm length directly impacts the excavator's horizontal reach. A longer arm provides extended reach, allowing operators to work at a greater distance from the machine. This can be advantageous when working on large job sites, reaching across obstacles, or loading trucks positioned farther away from the excavator.

3. Breakout Force: Shorter arms typically offer greater breakout force. This is because the force is applied over a shorter distance, resulting in increased power. Higher breakout force is beneficial for tasks that involve breaking through tough materials or lifting heavy loads.

4. Lifting Capacity: Arm length also affects an excavator's lifting capacity. Generally, shorter arms provide better lifting performance due to the reduced leverage effect. This makes shorter arms more suitable for heavy lifting tasks.

5. Maneuverability: Shorter arms offer better maneuverability in confined spaces. This can be particularly advantageous when working in urban environments or on job sites with limited space.

When selecting an excavator, it's crucial to consider the trade-offs between these factors. For instance, while a longer arm provides greater reach and digging depth, it may sacrifice some lifting capacity and breakout force. Conversely, a shorter arm offers increased power and maneuverability but with reduced reach.

Can arm length be customized for specific applications?

While standard arm lengths are suitable for many applications, there are situations where customized arm lengths may be necessary. Many manufacturers offer customization options to meet specific project requirements. Here's what you need to know about customizing excavator arm lengths:

1. Manufacturer Customization: Some excavator manufacturers offer custom arm length options beyond their standard short, medium, and long configurations. These custom options can be tailored to meet specific project needs, providing a balance between reach, digging depth, and power that's optimized for particular applications.

2. Aftermarket Solutions: There are aftermarket companies that specialize in modifying excavator arms. These modifications can include extending or shortening the arm length to meet specific requirements. However, it's important to note that such modifications should only be carried out by experienced professionals to ensure the structural integrity and safety of the machine are maintained.

3. Application-Specific Arms: Some manufacturers produce application-specific arms designed for particular tasks. For example, there are specially designed arms for demolition work that offer extended reach while maintaining the necessary strength to handle attachments like hydraulic breakers or shears.

4. Telescopic Arms: For applications requiring variable reach, some manufacturers offer telescopic arms. These arms can extend and retract, providing flexibility in reach and digging depth. Telescopic arms are particularly useful in applications where the working range varies frequently.

5. Considerations for Customization: When considering a custom arm length, it's important to take into account factors such as the machine's hydraulic system capacity, counterweight requirements, and overall stability. Changing the arm length can significantly affect the excavator's performance and safety characteristics.

6. Regulatory Compliance: Any modifications to an excavator's arm must comply with relevant safety standards and regulations. It's crucial to ensure that any customization doesn't compromise the machine's safety features or operational integrity.

7. Cost Implications: Custom arm lengths or modifications typically come at a higher cost compared to standard options. It's important to weigh the benefits of customization against the additional investment.

While customization offers flexibility, it's essential to carefully evaluate your specific needs and consult with experts before opting for a custom arm length. In many cases, selecting the appropriate standard arm length option (short, medium, or long) can sufficiently meet project requirements without the need for customization.

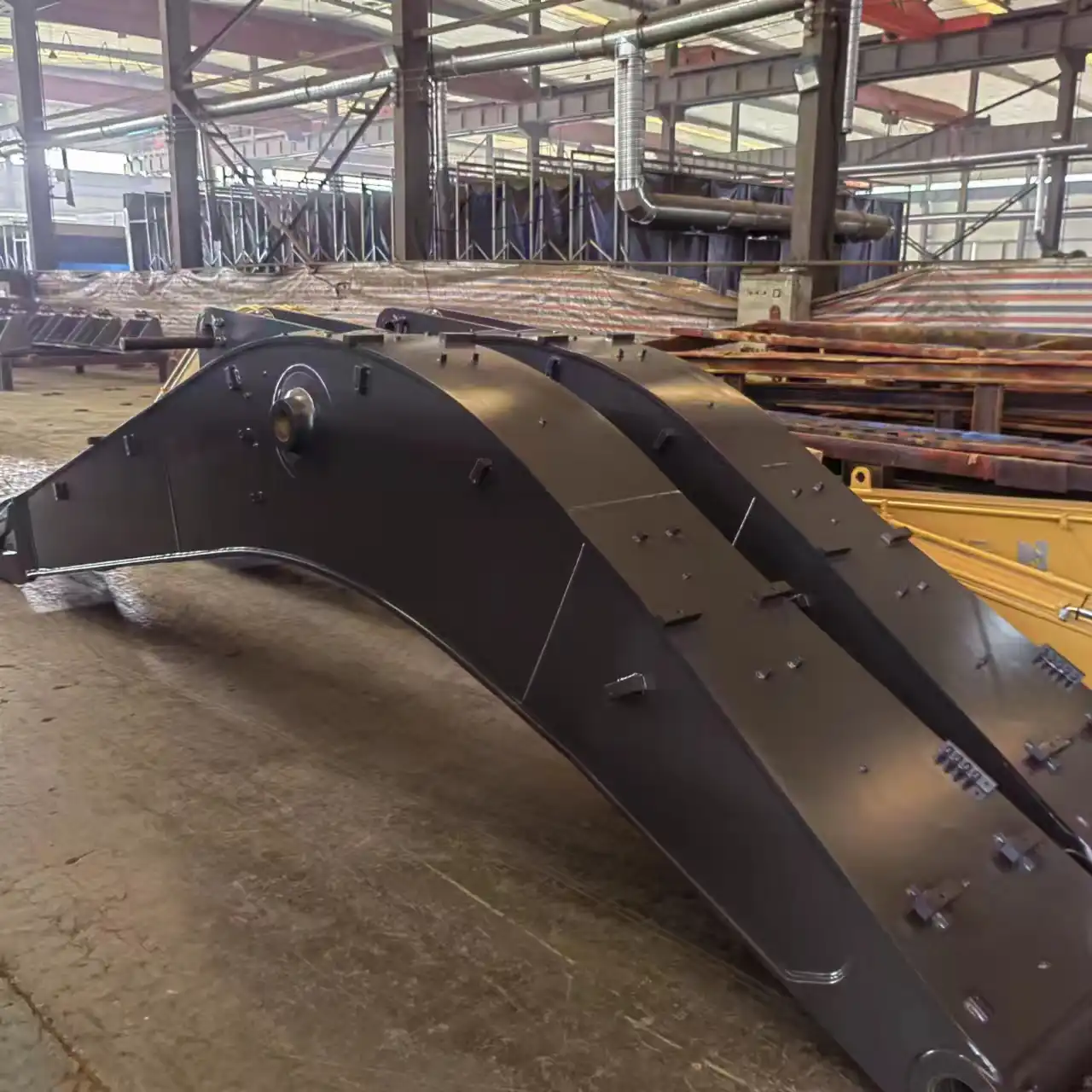

Standard Size Excavator Boom And Arm

Understanding the nuances of excavator arm lengths is crucial for optimizing performance and efficiency in various construction and earthmoving applications. Whether you opt for a standard arm length or a custom solution, the key is to align your choice with your specific project requirements and operational needs.

Tiannuo Machinery is a leading company in the field of excavator multifunctional equipment. Our expertise extends to standard size excavator boom and arm solutions, crafted from high-strength steel to ensure durability and performance. Our products boast impressive capabilities, including a maximum reach of up to 15 meters and a lifting capacity of up to 30 tons. Compatibility is a key feature of our offerings, as our boom and arm solutions are designed to work seamlessly with all major excavator brands.

We understand that every project has unique requirements, which is why we offer customization services to meet your specific needs. Safety is at the forefront of our design philosophy, with features such as overload protection and reinforced stability integrated into our products. To ensure your peace of mind, we provide a 1-year warranty on our boom and arm solutions.

For more information or to discuss your specific excavator arm requirements, please don't hesitate to reach out to our team. You can contact our manager at arm@stnd-machinery.com, or get in touch with our team members at rich@stnd-machinery.com and tn@stnd-machinery.com. Let us help you optimize your excavator's performance with our expertly crafted boom and arm solutions.
