What is the boom and arm on an excavator?

January 14, 2025

Excavators are essential machines in the construction and mining industries, known for their versatility and power. At the heart of an excavator's functionality lies two crucial components: the boom and arm. These elements work in tandem to provide the machine with its characteristic reach and digging capabilities. In this comprehensive guide, we'll explore the intricacies of the standard size excavator boom and arm, their functions, and why their design is critical for various excavation tasks.

blog-3072-3072



What is the primary function of the excavator boom?

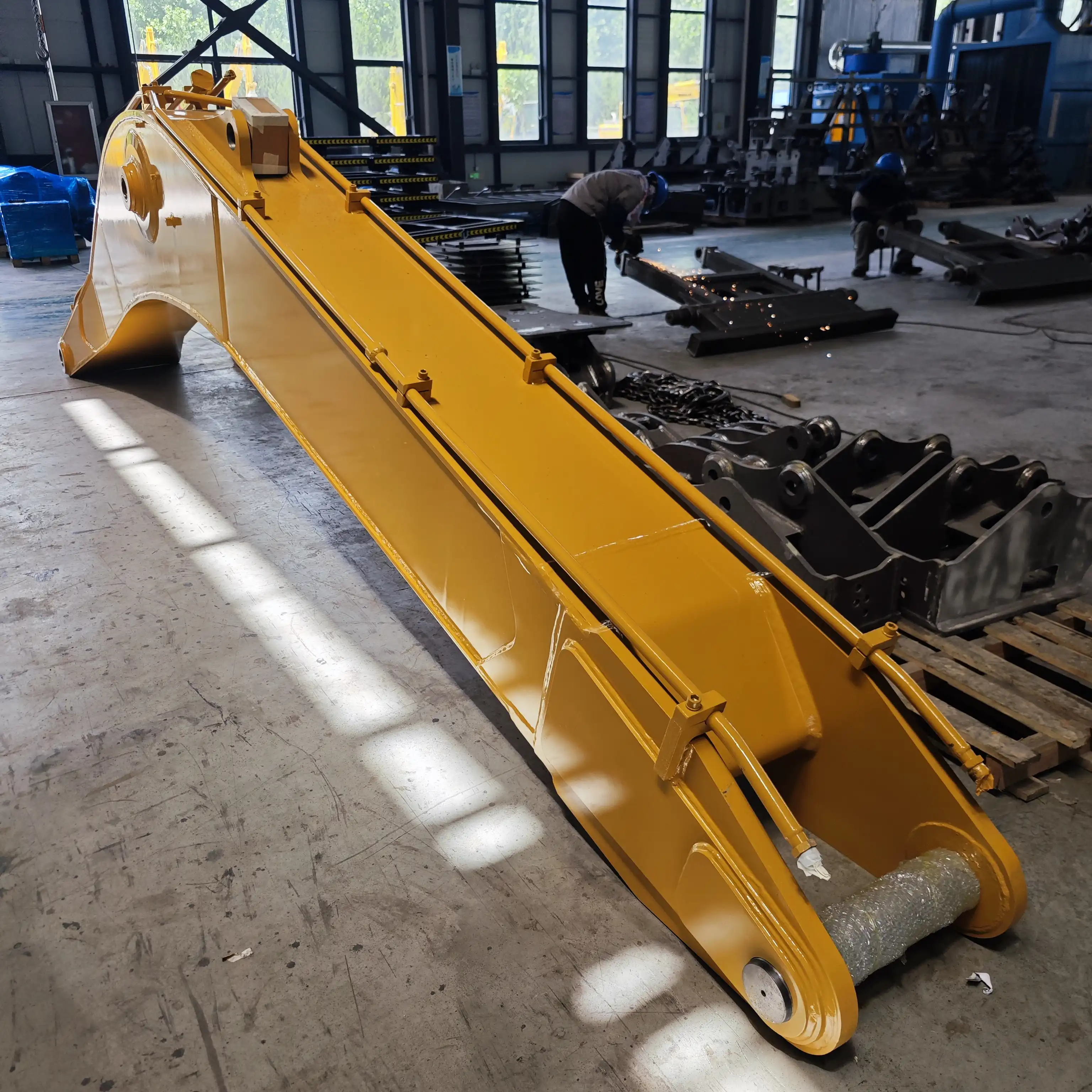

The boom is the long, articulated arm that extends from the excavator's main body. It serves as the primary support structure for the entire digging assembly. The boom's primary function is to provide reach and lift capacity to the excavator, allowing it to access areas that would otherwise be out of range.

Typically made from high-strength steel, the boom is designed to withstand immense stress and pressure during operation. Its robust construction enables it to support heavy loads and resist the forces exerted during digging and lifting operations. The boom's length and design can vary depending on the size and intended use of the excavator, but standard size excavator booms generally range from 15 to 30 feet in length.

One of the key features of the excavator boom is its ability to move vertically. This movement, controlled by hydraulic cylinders, allows the operator to adjust the height of the digging assembly. By raising or lowering the boom, the excavator can reach different depths and heights, making it suitable for a wide range of applications, from shallow trenching to deep excavation.

Moreover, the boom plays a crucial role in the excavator's overall stability. Its weight and position relative to the machine's center of gravity help counterbalance the forces generated during operation, preventing the excavator from tipping over when handling heavy loads or reaching out to maximum distances.

How does the excavator's arm complement the boom?

While the boom provides the primary reach and lift, the arm, also known as the stick, complements these functions by offering additional maneuverability and precision. The arm is attached to the end of the boom and serves as the connection point for the bucket or other attachments.

The arm's primary role is to control the extension and retraction of the digging assembly. By moving the arm in and out, the operator can fine-tune the excavator's reach and digging depth. This ability is crucial for tasks that require precise positioning, such as digging trenches to specific depths or placing pipes in exact locations.

Like the boom, the arm is constructed from high-strength steel to withstand the stresses of excavation work. The length of the arm can vary, but standard size excavator arms typically range from 8 to 15 feet. The choice of arm length depends on the specific requirements of the job – longer arms provide greater reach but may sacrifice some lifting capacity, while shorter arms offer increased power at the expense of reach.

Another essential function of the arm is its ability to rotate or curl. This movement, controlled by hydraulic cylinders, allows the bucket or attachment to be positioned at various angles. This flexibility is crucial for tasks such as grading, where precise control of the bucket's angle is necessary to achieve the desired surface finish.

The combination of the excavator boom and arm movements creates a wide range of motion, allowing the excavator to perform complex maneuvers. For instance, the operator can use the boom to lift the digging assembly while simultaneously extending the arm to reach into tight spaces or around obstacles. This coordinated movement is what gives excavators their remarkable versatility on job sites.

Why are boom and arm design critical for excavation tasks?

The design of the boom and arm is a critical factor in determining an excavator's performance and suitability for various tasks. Engineers must carefully balance several factors when designing these components to ensure optimal functionality and efficiency.

One of the primary considerations in excavator boom and arm design is the balance between reach and lifting capacity. A longer boom and arm assembly provides greater reach, allowing the excavator to access areas farther from its base. However, this extended reach can come at the cost of reduced lifting capacity, as the forces acting on the boom and arm increase with distance. Designers must find the optimal balance that provides sufficient reach without compromising the machine's lifting abilities.

The material selection for the boom and arm is another crucial aspect of their design. High-strength steel is typically used due to its excellent strength-to-weight ratio. This allows the boom and arm to be both strong and relatively lightweight, maximizing the excavator's performance while minimizing fuel consumption. Some manufacturers are also exploring the use of advanced materials like carbon fiber composites to further reduce weight without sacrificing strength.

The hydraulic system that powers the boom and arm movements is another critical design element. Engineers must ensure that the hydraulic cylinders and valves are sized appropriately to provide smooth, precise control over the boom and arm movements. This is essential for tasks that require fine manipulation, such as grading or placing objects with precision.

Durability is another key factor in boom and arm design. These components are subjected to intense stress and wear during operation, so they must be built to withstand years of heavy use. This often involves reinforcing key stress points, using wear-resistant materials in high-friction areas, and designing the components to distribute loads evenly.

Finally, the design of the boom and arm must take into account the various attachments that may be used with the excavator. The connection points and hydraulic systems must be versatile enough to accommodate a wide range of tools, from standard buckets to specialized attachments like hydraulic hammers or grapples.

Standard Size Excavator Boom And Arm

The boom and arm are the backbone of an excavator's functionality, providing the reach, power, and precision necessary for a wide range of excavation tasks. Their design is a complex balancing act, requiring careful consideration of factors such as reach, lifting capacity, durability, and versatility. As excavator technology continues to evolve, we can expect to see further innovations in boom and arm design, leading to even more efficient and capable machines.

Tiannuo Machinery is a leading company in the field of excavator multifunctional equipment. You can contact our manager at arm@stnd-machinery.com, as well as our team at rich@stnd-machinery.com and tn@stnd-machinery.com for any inquiries. Our hotsale product is the standard size excavator boom and arm, which is made of high-strength steel. It boasts a maximum reach of up to 15 meters and a lifting capacity of up to 30 tons. This boom and arm is compatible with all major excavator brands. We also offer customization services to meet your specific needs. Safety is a top priority, so our product features overload protection and reinforced stability. Additionally, we provide a 1-year warranty to ensure your satisfaction.

References

  • Haddock, K. (2002). Giant Earthmovers: An Illustrated History. MBI Publishing Company.
  • Nichols, H. L., & Day, D. A. (2010). Moving the Earth: The Workbook of Excavation. McGraw-Hill Professional.
  • Peurifoy, R. L., Schexnayder, C. J., Shapira, A., & Schmitt, R. (2018). Construction Planning, Equipment, and Methods. McGraw-Hill Education.
