What models does the ballast blaster undercutter work with?

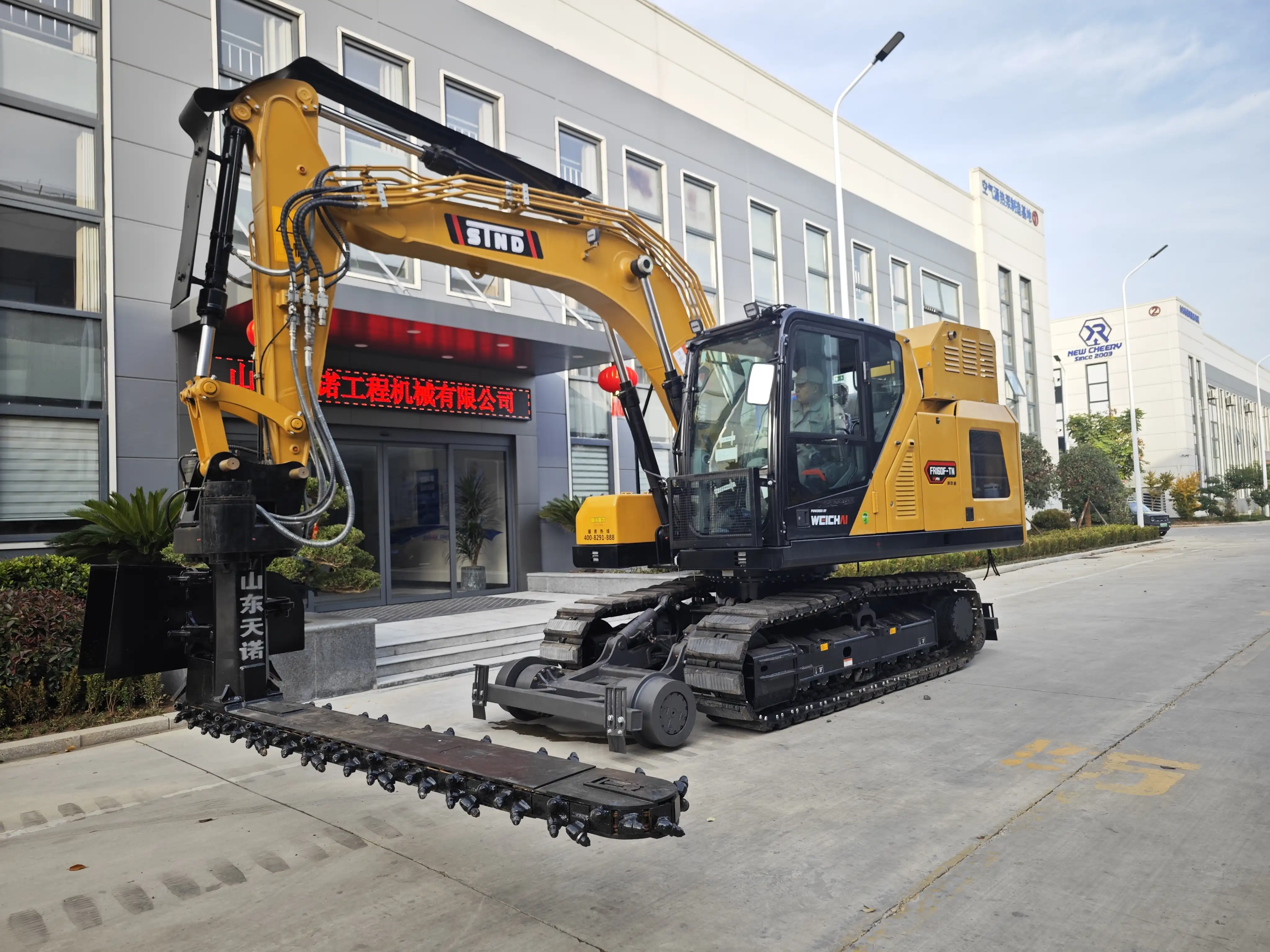

The Tiannuo ballast blaster undercutter (model FR-160F-TN) is specifically designed to work with excavator models in the 135-185 class range. This compatibility ensures optimal performance when maintaining railway tracks and removing contaminated ballast under sleepers. The machine's design allows it to integrate seamlessly with these mid-to-large sized excavators, providing the necessary power, stability, and hydraulic capacity required for effective ballast cleaning operations. With its 360° rotation capability and impressive cleaning length of ≥2800mm, this attachment transforms compatible excavators into specialized railway maintenance equipment. The excavator-mounted design offers significant advantages over standalone machines, including increased mobility between work sites, reduced setup time, and the ability to operate in confined spaces where larger dedicated machines cannot access.
Is the Ballast Blaster Compatible with All Excavator Models?
Excavator Size Classifications
The ballast blaster undercutter from Tiannuo Machinery is specifically engineered to work with excavator models in the 135-185 class range. This classification typically refers to excavators weighing between 13.5 and 18.5 metric tons. These mid-sized excavators provide the ideal balance of power, stability, and maneuverability required for railway ballast maintenance operations.
Excavators below the 135 class generally lack the necessary hydraulic power, stability, and lifting capacity to operate the FR-160F-TN ballast blaster effectively. The attachment's substantial weight and the forces involved in ballast extraction require a robust base machine. Conversely, excavators above the 185 class, while having ample power, may prove too large and cumbersome for typical railway maintenance environments where space is often limited.
Recommended Manufacturer Models
Within the specified 135-185 class range, several manufacturer models demonstrate excellent compatibility with the Tiannuo ballast blaster undercutter. These include various 14-ton, 15-ton, 16-ton, and 18-ton excavator models from major manufacturers. The attachment's universal mounting system accommodates the standard quick-coupler systems found on these machines.
The hydraulic system requirements align perfectly with the standard specifications of excavators in this size category, ensuring smooth operation without overtaxing the base machine's capabilities. This compatibility extends to both newer and older model excavators within the specified weight range, provided they meet the minimum hydraulic flow and pressure requirements.
Special Adaptation Options
For customers operating excavators that fall slightly outside the recommended 135-185 class range, Tiannuo offers customization services to adapt the ballast blaster undercutter for specific applications. These adaptations may include:
①Modified mounting brackets to ensure proper fitment
②Hydraulic flow control systems for larger excavators
③Reinforced structural components for applications requiring additional durability
④Custom excavation length options beyond the standard ≥2800mm specification
These adaptations enable railway maintenance contractors to utilize their existing equipment fleet more effectively, potentially eliminating the need to purchase new excavators specifically for ballast maintenance operations.
What Are the Technical Requirements for Excavator Compatibility?
Hydraulic System Requirements
The FR-160F-TN ballast blaster undercutter depends on the host excavator's hydraulic system to power its operations. For optimal performance, the excavator should provide:
①Primary hydraulic circuit: 120-160 L/min flow rate
②Operating pressure: 280-320 bar
③Secondary auxiliary circuit: 60-80 L/min for additional functions
④Hydraulic oil temperature stability within 40-80°C during operation
These specifications ensure that the ballast blaster's cutting mechanisms, conveyor systems, and rotational functions operate at peak efficiency. Excavators in the 135-185 class range typically provide sufficient hydraulic capacity, but it's essential to verify these parameters before implementation.
Modern excavators often feature programmable hydraulic settings that can be adjusted to match the specific requirements of the ballast blaster. This programmability allows operators to save optimal hydraulic settings for quick recall when switching between different attachments, improving operational efficiency.
Structural and Mechanical Considerations
Beyond hydraulic compatibility, several structural and mechanical factors determine whether an excavator can effectively utilize the ballast blaster:
Lifting capacity: The excavator must be able to safely handle the 1500-1800 kg weight of the ballast blaster attachment
Boom configuration: Standard mono booms with adjustable stick arms provide the optimal reach and maneuverability
Counterweight: Sufficient counterbalancing to maintain stability during ballast extraction operations
Undercarriage: Track width and ground pressure appropriate for railway maintenance environments
Swing capability: Full 360° rotation to allow precise positioning alongside railway tracks
The excavator's stick arm length also plays a crucial role in determining the effective working reach of the combined unit. The optimal stick length falls between 2.4-2.9 meters, providing sufficient reach while maintaining stability during operation.
Control System Integration
Modern excavators feature sophisticated electronic control systems that must interface properly with specialized attachments like the ballast blaster undercutter. Key compatibility requirements include:
①Proportional auxiliary hydraulic controls for precise operation
②Programmable work modes for optimized performance
③Hydraulic line quick couplers that match the ballast blaster's connections
④Cabin displays capable of monitoring attachment performance metrics
⑤Optional telematics integration for maintenance tracking and usage analytics
Advanced control features like programmable flow rates and pressure settings allow operators to fine-tune the ballast blaster's performance based on specific track conditions and material density. This adaptability significantly improves both productivity and precision during railway maintenance operations.
How to Ensure Proper Hydraulic and Structural Fit with Your Excavator?
Consultation and Pre-Purchase Assessment
Before investing in a ballast blaster undercutter, it's essential to conduct a thorough compatibility assessment of your existing excavator fleet. Tiannuo Machinery offers comprehensive consultation services to evaluate your equipment and determine the best fit for your specific needs.
This assessment typically includes:
①Review of excavator specifications against ballast blaster requirements
②Hydraulic system evaluation to confirm flow rates and pressure capability
③Mechanical inspection of mounting points and structural integrity
④Operational environment analysis to ensure suitability for your railway maintenance projects
⑤Customization recommendations if standard configurations aren't optimal
Many railway contractors find value in scheduling a demonstration where Tiannuo technicians can temporarily install the ballast blaster on their excavator to evaluate real-world performance before finalizing a purchase decision. This hands-on approach eliminates uncertainty about compatibility and operational effectiveness.
Installation and Calibration Process
Proper installation of the ballast blaster undercutter is critical for both performance and safety. The process typically involves:
①Verification of hydraulic fittings and connection points
②Mounting bracket installation specific to the excavator model
③Hydraulic line routing to prevent pinching or excessive wear
④Electrical connection of any monitoring or control systems
⑤Initial calibration of flow rates and pressure settings
⑥Test operation under controlled conditions
⑦Final adjustments based on performance data
Tiannuo provides detailed installation guides specific to various excavator models within the compatible range. These guides include model-specific mounting instructions, hydraulic setup diagrams, and calibration procedures to ensure optimal performance from the first operation.
Ongoing Maintenance for System Compatibility
Maintaining optimal compatibility between your excavator and the ballast blaster requires regular attention to several key areas:
①Hydraulic fluid analysis to ensure proper viscosity and cleanliness
②Filter inspection and replacement on accelerated schedules
③Connection point inspection for wear or loosening
④Hydraulic hose condition monitoring
⑤Mounting bracket stress inspection
⑥Control system calibration verification
Implementing a preventative maintenance program specifically designed for ballast cleaning operations can significantly extend the service life of both the excavator and the attachment. Tiannuo provides comprehensive maintenance documentation and support to help operators develop effective maintenance protocols tailored to their specific equipment combinations and operational environments.
FAQ
①Q: Can the ballast blaster undercutter be fitted to road-rail excavators?
A: Yes, the FR-160F-TN is compatible with road-rail converted excavators in the 135-185 class range, offering enhanced mobility along tracks.
②Q: What is the minimum hydraulic flow rate needed for effective operation?
A: The ballast blaster requires a minimum hydraulic flow of 120 L/min for optimal performance, though it can operate at reduced efficiency with flows as low as 100 L/min.
③Q: Is additional counterweight required when using this attachment?
A: Most excavators in the recommended class range have sufficient counterweight as standard, but operations on uneven terrain may benefit from supplemental counterweighting.
④Q: How long does it take to install the ballast blaster on a compatible excavator?
A: With proper preparation, experienced technicians can complete the installation in approximately 4-6 hours, including initial calibration and testing.
Contact Tiannuo
The Tiannuo ballast blaster undercutter offers exceptional compatibility with excavators in the 135-185 class range, providing railway maintenance contractors with a versatile and efficient solution for ballast cleaning operations. By understanding the specific technical requirements and ensuring proper installation and maintenance, operators can maximize the performance and longevity of this specialized attachment.
Whether you're looking to expand your railway maintenance capabilities or seeking a more efficient approach to ballast cleaning, the FR-160F-TN represents an advanced solution that integrates seamlessly with your existing equipment fleet. For more information about compatibility with specific excavator models or to arrange a consultation, contact Tiannuo Machinery at arm@stnd-machinery.com.
