What is the effective cleaning length of the ballast blaster undercutter?
The effective cleaning length of Tiannuo's ballast blaster undercutter is ≥2800mm (customizable), allowing it to efficiently clean and maintain extended sections of railway track in a single operation. This substantial cleaning reach enables railway maintenance crews to restore ballast functionality across significant portions of track without frequent repositioning of equipment. The FR-160F-TN model is specifically designed to excavate ballast under railway sleepers to a depth of up to 200mm, ensuring thorough cleaning and proper drainage restoration. With its 360° rotation capability, this railway maintenance equipment can access difficult areas around tracks, making it an essential tool for maintaining railway infrastructure integrity and operational safety. The generous effective cleaning length represents a critical specification that directly impacts maintenance efficiency, project timelines, and overall cost-effectiveness.
What Does 'Effective Cleaning Length' Mean in Ballast Undercutting?
Technical Parameter
In railway maintenance, effective cleaning length refers to the maximum lateral distance that a ballast blaster undercutter can excavate and clean in a single setup position. This measurement indicates how much track section can be maintained without needing to reposition the equipment. For railway maintenance teams, this specification directly translates to operational efficiency - the longer the effective cleaning length, the fewer repositioning operations required, resulting in faster project completion.

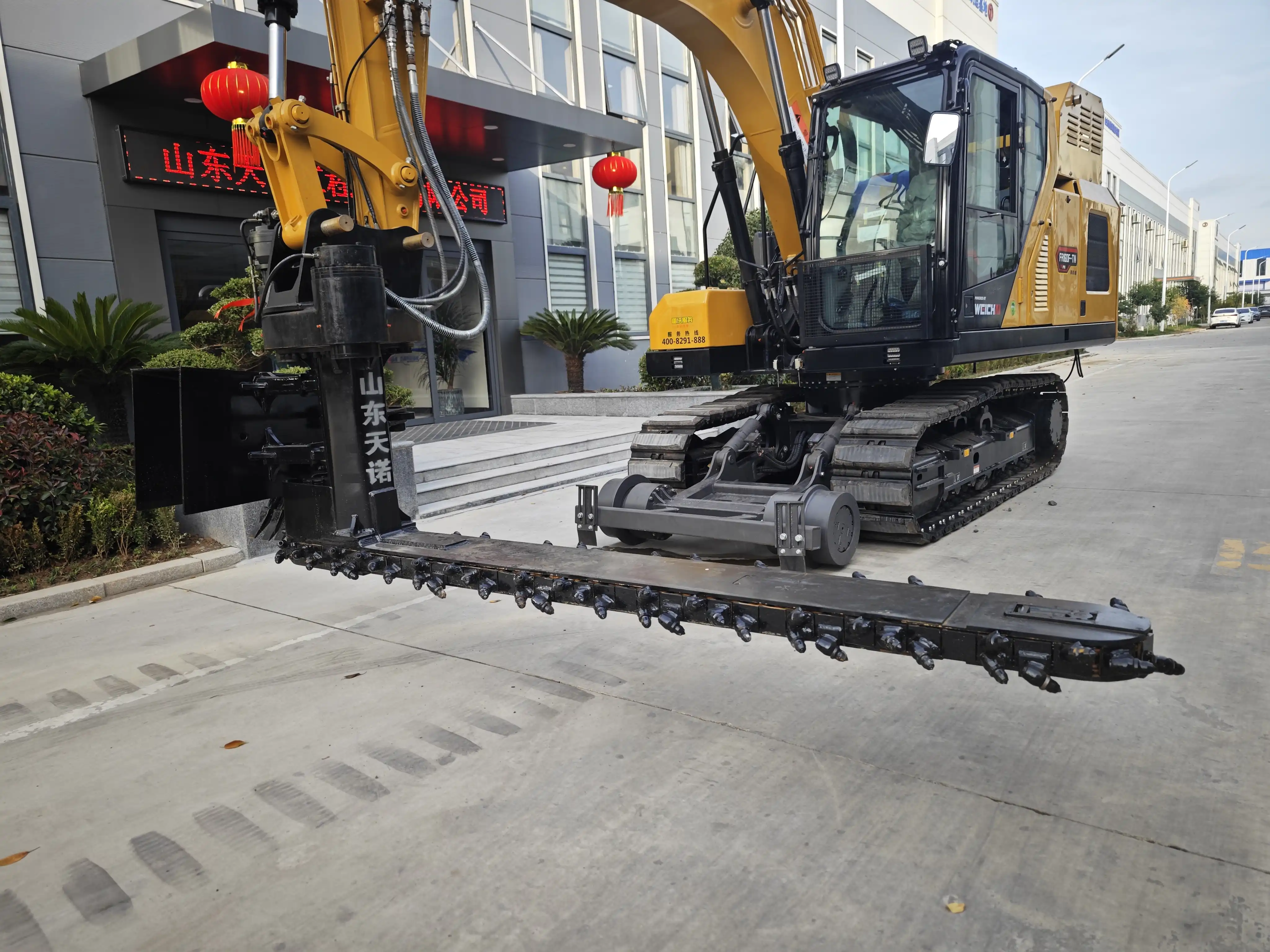

The effective cleaning length encompasses the actual working area where the cutting chain or excavation mechanism can reach beneath the track structure to remove, screen, and replace contaminated ballast. This measurement is particularly important because it determines how much of the track bed can be restored in a single operation cycle.
Key Components Affecting Cleaning Length
Several design factors influence the effective cleaning length of a ballast undercutter:
①Cutting chain design and extension capability
②Hydraulic system power and reach
③Machine frame and boom structure
④Stabilizing mechanisms that allow extended reach without compromising balance
⑤Excavator base specifications when mounted as an attachment
Railway maintenance professionals evaluate these components when selecting the appropriate undercutter for specific project requirements. The excavation mechanism must maintain consistent cleaning performance across the entire effective length to ensure uniform ballast quality throughout the cleaned section.
Industry Standards and Expectations
Within the railway maintenance industry, effective cleaning length standards vary based on project scale and track layout complexity. Traditionally, smaller undercutters might offer cleaning lengths of 1500-2000mm, while advanced models like Tiannuo's ballast undercutters provide significantly greater reach at ≥2800mm.
This extended reach capability represents an important advancement in railway maintenance technology, as it allows maintenance crews to clean longer continuous sections of track. By reducing the number of machine repositioning operations required, these longer effective cleaning lengths contribute to more efficient maintenance schedules and reduced track downtime.
What Is the Standard Cleaning Range of Tiannuo's Ballast Blaster Undercutter?

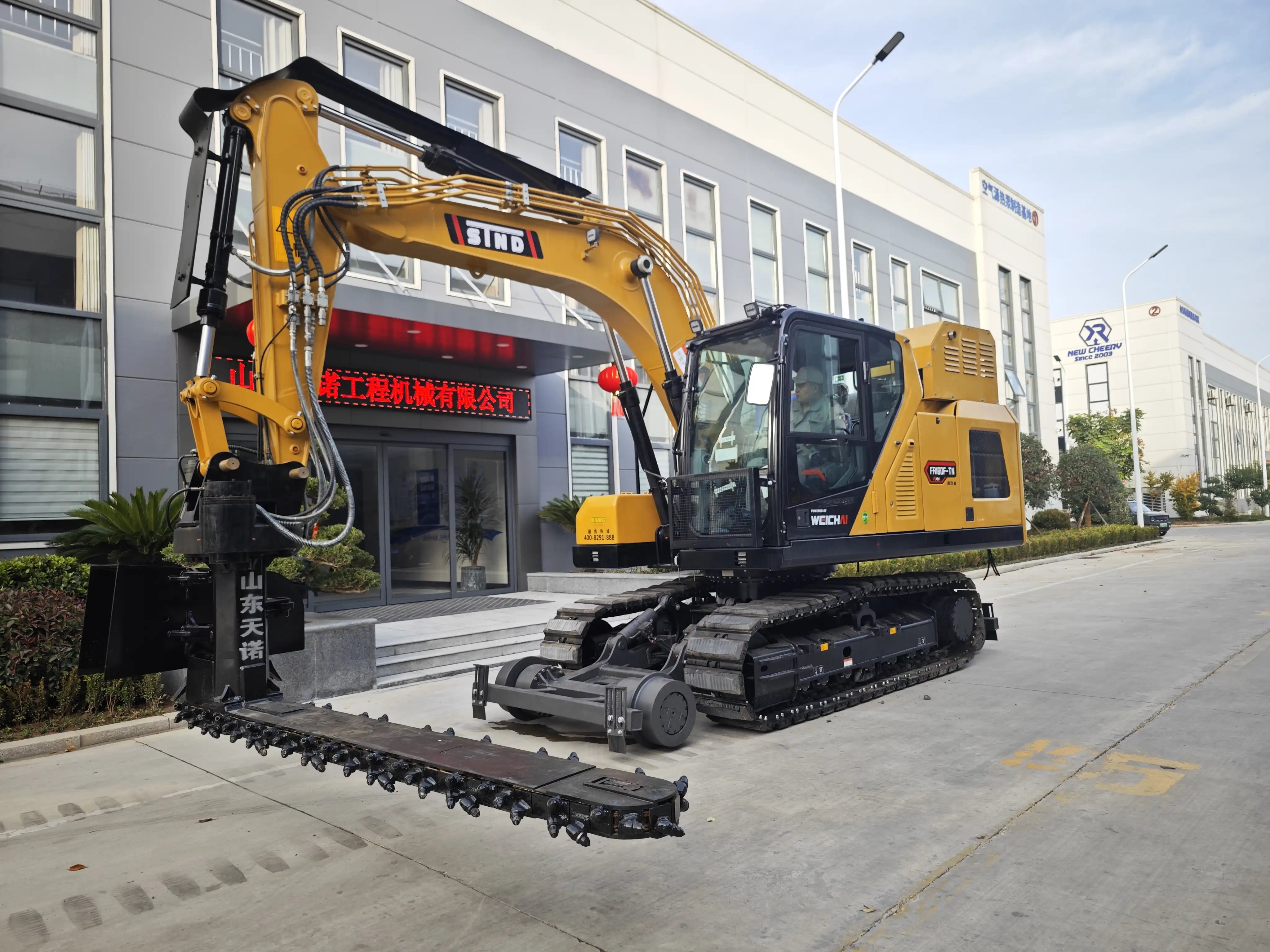

Tiannuo's FR-160F-TN ballast blaster undercutter boasts an impressive cleaning length of ≥2800mm, placing it at the higher end of industry capabilities. This specification allows maintenance crews to clean nearly three meters of track in a single operation, significantly reducing the time required for large-scale track maintenance projects.
The technical specifications that complement this extensive cleaning length include:
①Applicable excavator models: 135-185 class
②360° cleaning machine rotation angle
③Slag removal depth: ≤200mm (under sleeper)
④Dimensions: 4000×1100×1650mm (L×W×H)
⑤Mining efficiency: >20m/h
These specifications collectively enable the FR-160F-TN to handle complex railway maintenance requirements with exceptional efficiency. The combination of deep excavation capability and extensive lateral reach makes it particularly valuable for comprehensive track restoration projects.
Customization Options for Various Project Requirements
While the standard cleaning length is ≥2800mm, Tiannuo recognizes that different railway maintenance projects may have unique requirements. The company offers customization options to adjust the effective cleaning length based on:
①Track gauge variations
②Specific regional railway standards
③Space constraints in urban or tunnel environments
④Special project requirements for historic railway preservation
This flexibility allows railway operators to optimize their maintenance equipment for their specific infrastructure. By offering customizable solutions rather than one-size-fits-all equipment, Tiannuo ensures that maintenance crews have precisely the right tools for their particular challenges.
Comparison with Industry Alternatives
When compared to other ballast cleaning solutions in the market, Tiannuo's ≥2800mm cleaning length represents a significant advantage. Many competing models offer effective cleaning lengths of 1800-2500mm, requiring more frequent repositioning during maintenance operations.
The extended reach provides several comparative advantages:
①Reduced setup/teardown cycles
②Lower labor costs per meter of cleaned track
③Faster project completion timeframes
④Increased daily production capacity
More consistent cleaning quality across longer track sections
These advantages make Tiannuo's ballast undercutters particularly valuable for large-scale railway maintenance projects where efficiency and production capacity are critical factors in project planning and budgeting.
How Does the Cleaning Length Impact Operational Efficiency on Site?
Time and Cost Calculations
The effective cleaning length of a ballast blaster undercutter directly influences the economics of railway maintenance operations. With Tiannuo's ≥2800mm reach capability, maintenance crews can achieve substantial time and cost savings:
Consider a 1-kilometer track maintenance project:
①With a 2000mm cleaning length machine: Requires approximately 500 positioning operations
②With Tiannuo's ≥2800mm cleaning length: Requires about 357 positioning operations
This 28% reduction in repositioning translates to significant labor and time savings. Each repositioning operation typically requires:
①Equipment shutdown and safety procedures
②Physical movement and realignment
③Setup and calibration before resuming work
When calculating the total project timeline, these saved operations can reduce overall project duration by 15-25%, depending on track conditions and crew experience. The financial impact includes reduced equipment rental periods, lower labor costs, and minimized track downtime - critical factors for railway operators balancing maintenance needs with operational schedules.
Real-World Application Scenarios
The extended cleaning length proves particularly valuable in several common railway maintenance scenarios:
Mainline Track Rehabilitation
When maintaining high-traffic mainlines, minimizing disruption is critical. The longer cleaning length allows maintenance teams to complete more work during limited maintenance windows, reducing the number of traffic disruptions required to complete the project.
Remote Location Maintenance
For tracks in difficult-to-access locations, equipment mobility presents significant challenges. The extended reach reduces the frequency of equipment movement, making maintenance of remote sections more practical and cost-effective.
Urban Transit Systems
In densely populated areas where transit systems operate with minimal service interruptions, maintenance windows are often limited to overnight hours. The increased efficiency enables teams to complete more maintenance within these restricted timeframes.
Heavy Haul Corridors
On routes carrying heavy freight, ballast degradation occurs more rapidly and requires more frequent maintenance. The extended cleaning length helps maintenance crews keep pace with these demanding maintenance schedules.
Operational Planning Advantages
Railway maintenance supervisors gain significant planning advantages when utilizing equipment with extended cleaning reach:
①More predictable project timelines due to fewer variables in the repositioning process
②Simplified resource allocation with fewer crew members needed for equipment positioning
③Reduced equipment wear from less frequent movement and setup
④Lower fuel consumption from optimized equipment operation
⑤Ability to complete more maintenance within scheduled track possession windows
These planning advantages translate into more reliable maintenance schedules, better coordination with train operations, and ultimately, a more resilient railway infrastructure. By maximizing the effective work performed during each maintenance window, railway operators can maintain higher overall system reliability while minimizing service disruptions.
FAQ
①What is the maximum ballast excavation depth of Tiannuo's ballast blaster undercutter?
Tiannuo's FR-160F-TN model can excavate ballast to a depth of ≤200mm beneath the railway sleepers, allowing for thorough cleaning and restoration of the ballast bed.
②How does the 360° rotation capability benefit railway maintenance operations?
The full rotation capability enables the undercutter to access difficult areas around tracks, work efficiently in confined spaces, and maintain proper positioning regardless of track configuration or surrounding obstacles.
③What types of contaminants can the ballast blaster undercutter remove?
The equipment effectively removes dirt, mud, vegetation, coal dust, oil contamination, and other debris that accumulates in railway ballast over time, restoring proper drainage and track stability.
④Can the ballast blaster undercutter be used on different track gauges?
Yes, Tiannuo offers customization options to accommodate various track gauges and regional railway standards, making their equipment suitable for railway systems worldwide.
Tiannuo's Ballast Blaster Undercutters
Its effective cleaning length represents a critical specification that directly impacts maintenance efficiency, project timelines, and overall cost-effectiveness. Tiannuo's advanced FR-160F-TN model, with its ≥2800mm cleaning length, offers railway maintenance teams a significant advantage in tackling infrastructure renewal projects with greater speed and efficiency.
This extended reach capability, combined with the machine's 360° rotation and substantial excavation depth, provides railway operators with a powerful tool for maintaining track integrity and ensuring safe, reliable rail operations. By reducing the number of repositioning operations required during maintenance activities, these machines help railway companies minimize service disruptions while maximizing the effectiveness of their maintenance investments.
For railway maintenance teams looking to optimize their operations with advanced equipment solutions, Tiannuo's ballast blaster undercutters represent an ideal combination of reach, power, and reliability. To learn more about these advanced railway maintenance solutions and how they can benefit your operations, contact Tiannuo's expert team at arm@stnd-machinery.com.
