What is the high-vibration hydraulic ballast tamping machine's recommended tamping pressure?

The high-vibration hydraulic ballast tamping machine is a crucial piece of equipment in railway maintenance, designed to ensure track stability and longevity. One of the most critical aspects of its operation is maintaining the correct tamping pressure. This article will delve into the recommended tamping pressure, how it's regulated, the factors that influence it, and why it's essential for track stability.

Recommended Tamping Pressure for High-Vibration Hydraulic Ballast Tamping Machines

The recommended tamping pressure for a high-vibration hydraulic ballast tamping machine typically ranges from 110 to 140 bar (1,595 to 2,030 psi). However, it's important to note that this range can vary depending on several factors, including the specific machine model, track conditions, and ballast characteristics. Some advanced models may operate at pressures up to 160 bar (2,320 psi) for particularly challenging track sections.

The tamping pressure is a critical parameter that directly affects the efficiency and effectiveness of the ballast consolidation process. Too low pressure may result in inadequate compaction, while excessive pressure can lead to ballast degradation and potential damage to the track structure. Therefore, operators must carefully calibrate and monitor the tamping pressure to achieve optimal results.

Modern high-vibration hydraulic ballast tamping machines often come equipped with sophisticated pressure monitoring systems. These systems allow operators to continuously observe and adjust the tamping pressure in real-time, ensuring that it remains within the recommended range throughout the maintenance operation. This level of precision contributes significantly to the overall quality and durability of the track maintenance work.

Regulation of Tamping Pressure in Hydraulic Ballast Tamping Machines

The regulation of tamping pressure in a high-vibration hydraulic ballast tamping machine is a complex process that involves several components and systems working in harmony. At the heart of this regulation is the hydraulic system, which is responsible for generating and controlling the pressure applied during the tamping operation.

The primary components involved in pressure regulation include:

1. Hydraulic pump: This device generates the initial hydraulic pressure required for the tamping operation.
2. Pressure relief valves: These safety devices prevent the system from exceeding maximum pressure limits.
3. Pressure control valves: These valves allow for fine-tuning of the pressure applied to the tamping tools.
4. Pressure sensors: These devices continuously monitor the system pressure and provide feedback to the control unit.
5. Electronic control unit: This sophisticated computer system processes input from various sensors and adjusts the hydraulic system accordingly.

The process of regulating tamping pressure typically follows these steps:

1. The operator inputs the desired tamping pressure based on track conditions and maintenance requirements.
2. The electronic control unit activates the hydraulic pump to generate the initial pressure.
3. Pressure sensors continuously monitor the system pressure and send this information to the control unit.
4. The control unit compares the actual pressure with the desired pressure and makes adjustments as necessary.
5. Pressure control valves open or close to increase or decrease pressure as directed by the control unit.
6. This process continues in real-time throughout the tamping operation, ensuring consistent pressure application.

Advanced high-vibration hydraulic ballast tamping machines may also incorporate adaptive pressure control systems. These systems can automatically adjust the tamping pressure based on real-time feedback from the track, including measurements of ballast resistance and track geometry. This level of automation helps to optimize the tamping process and achieve more consistent results across varying track conditions.

It's worth noting that while the pressure regulation system is highly automated, skilled operators play a crucial role in its effective operation. Operators must be trained to interpret machine feedback, recognize signs of improper pressure application, and make manual adjustments when necessary. This combination of advanced technology and human expertise ensures the best possible outcomes in track maintenance operations.

Factors Influencing Ideal Tamping Pressure and Its Importance for Track Stability

The ideal tamping pressure for a high-vibration hydraulic ballast tamping machine is not a fixed value but rather a range that can be influenced by various factors. Understanding these factors is crucial for railway maintenance teams to achieve optimal track stability and longevity. Let's explore some of the key factors that influence the ideal tamping pressure:

1. Ballast Material: The type and quality of ballast used can significantly affect the ideal tamping pressure. Harder, more angular ballast materials may require higher pressures to achieve proper compaction, while softer or more rounded materials might need lower pressures to prevent over-compaction or degradation.
2. Track Condition: The existing condition of the track plays a crucial role in determining the appropriate tamping pressure. Newly laid tracks or those with severe alignment issues may require higher pressures to achieve the desired level of compaction and alignment. Conversely, well-maintained tracks might need lower pressures for routine maintenance.
3. Subgrade Characteristics: The nature of the subgrade (the layer beneath the ballast) can influence the ideal tamping pressure. Softer subgrades may require lower pressures to prevent excessive settlement, while firmer subgrades can withstand higher pressures.
4. Environmental Conditions: Factors such as temperature and moisture content can affect the behavior of the ballast during tamping. For instance, wet conditions might necessitate adjustments to the tamping pressure to achieve proper compaction without causing ballast pumping.
5. Track Usage: The type and frequency of traffic on the track can influence the ideal tamping pressure. High-speed lines or those with heavy freight traffic may require more aggressive tamping pressures to ensure long-term stability.
6. Machine Characteristics: Different models of high-vibration hydraulic ballast tamping machines may have varying optimal pressure ranges based on their design and capabilities.
7. Local Regulations and Standards: Railway authorities in different regions may have specific guidelines or standards regarding tamping pressures that must be adhered to.

Maintaining the correct pressure during the tamping process is paramount for ensuring track stability. Here's why it's so essential:

1. Optimal Compaction: The right tamping pressure ensures that the ballast is compacted to the ideal density. This creates a stable foundation for the track, reducing the likelihood of settlement and misalignment over time.
2. Uniform Support: Consistent tamping pressure across the track length promotes uniform support for the rails and sleepers. This uniformity is crucial for maintaining proper track geometry and preventing localized stress points.
3. Ballast Longevity: Applying the correct pressure helps preserve the integrity of the ballast material. Excessive pressure can lead to ballast degradation, while insufficient pressure may result in inadequate interlocking of ballast particles.
4. Track Geometry Maintenance: Proper tamping pressure helps in achieving and maintaining the desired track geometry, including correct super-elevation on curves and proper cross-level.
5. Ride Quality: A well-tamped track with the right pressure application contributes to smoother train operations, enhancing passenger comfort and reducing wear on rolling stock.
6. Safety: Ultimately, maintaining the correct tamping pressure is a critical factor in ensuring the overall safety of railway operations. It helps prevent track defects that could lead to derailments or other accidents.
7. Cost-Effectiveness: By applying the optimal tamping pressure, maintenance teams can extend the intervals between major track maintenance operations, reducing overall maintenance costs and minimizing disruptions to rail services.

Railway maintenance professionals must consider all these factors when setting up and operating high-vibration hydraulic ballast tamping machines. Regular monitoring and adjustment of tamping pressure based on these factors and the observed track performance are essential practices in modern railway maintenance.

As technology continues to advance, we're seeing the development of more sophisticated tamping machines with real-time pressure adjustment capabilities. These machines can analyze track conditions on the fly and automatically adjust tamping pressures to optimal levels. Such innovations promise to further enhance the efficiency and effectiveness of track maintenance operations, contributing to safer, more reliable, and more cost-effective railway systems worldwide.

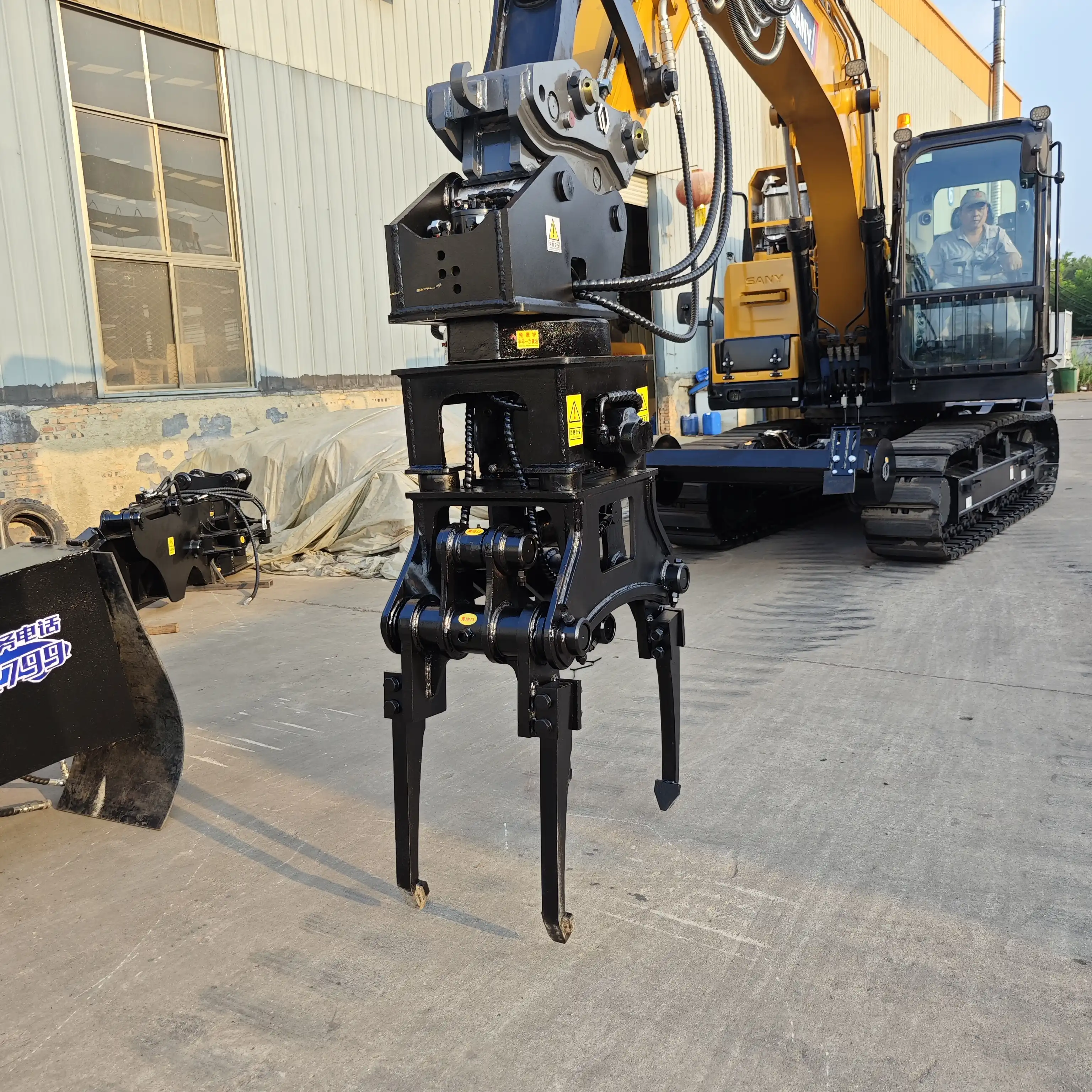

High-vibration hydraulic ballast tamping machine

The high-vibration hydraulic ballast tamping machine plays a crucial role in maintaining the stability and longevity of railway tracks. By understanding and carefully controlling the tamping pressure, railway maintenance teams can ensure optimal track performance, enhance safety, and reduce long-term maintenance costs. As railway technology continues to evolve, we can expect even more precise and efficient tamping processes, further improving the reliability and sustainability of rail transportation systems worldwide.

For all your railway maintenance needs, Tiannuo Machinery proudly presents our High-vibration hydraulic ballast tamping machine, an advanced solution designed for efficient track maintenance. Compatible with 70-50 excavators, this versatile equipment excels in post-renovation ballast tamping operations. Our machine features an impressive tamping clamping range of 180-700 mm and comes with both four-claw and eight-claw configurations to suit different operational requirements. Engineered to accommodate various track gauges, this equipment ensures optimal performance across different railway systems. For detailed information or inquiries, please reach out to our management team at arm@stnd-machinery.com, or connect with our dedicated team members at rich@stnd-machinery.com and tn@stnd-machinery.com. At Tiannuo Machinery, we are committed to delivering excellence in railway maintenance solutions.
