What Is an Excavator Grapple?

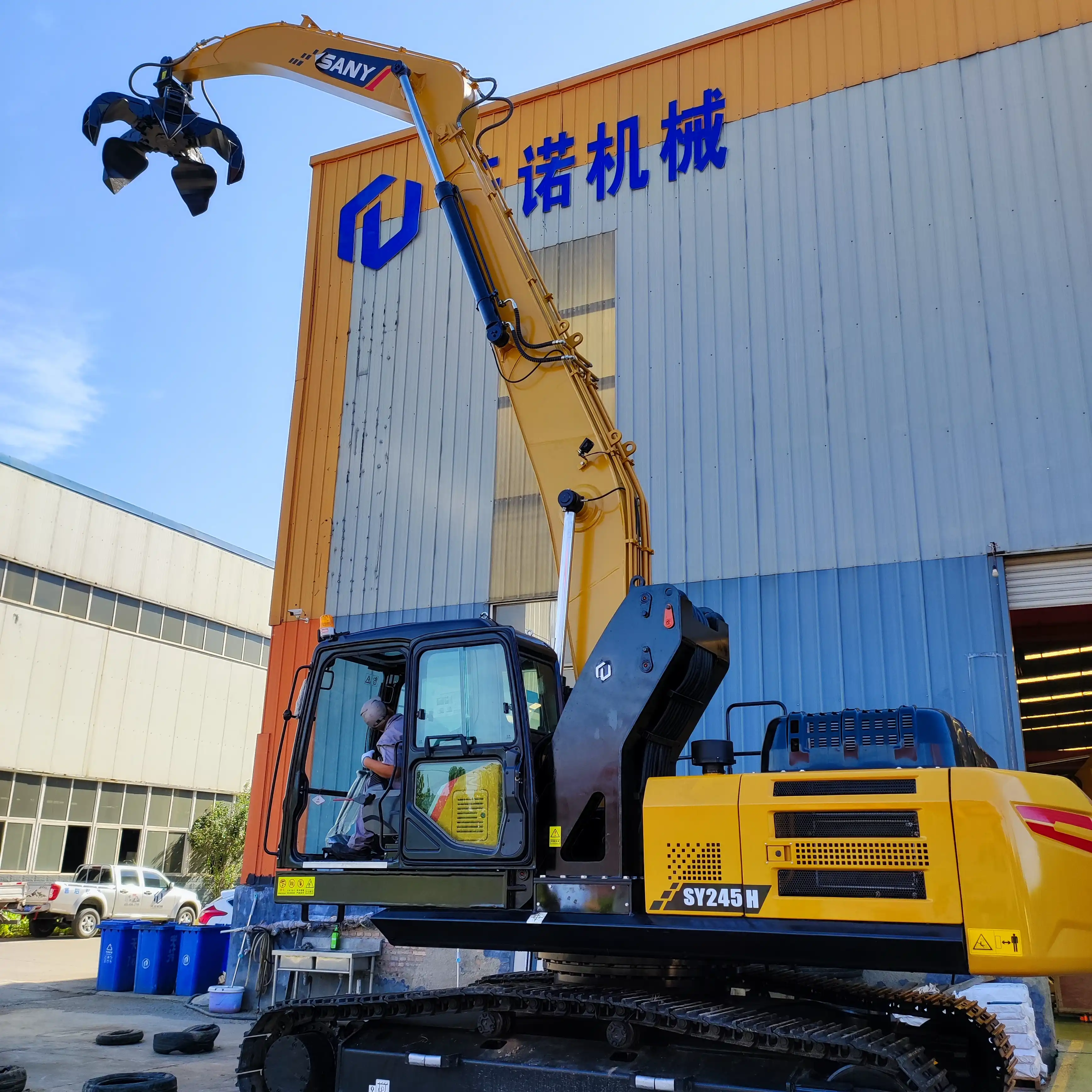

An excavator grapple, also known as an excavator grab arm, is a specialized attachment designed to enhance the functionality and versatility of standard excavators. It's essentially a hydraulically-operated clamping device that attaches to the end of an excavator arm, allowing operators to securely grip, lift, and move various materials with precision. Manufactured by companies like Tiannuo Machinery, these robust attachments significantly expand an excavator's capabilities beyond traditional digging operations. The grab arm features opposing "fingers" or "jaws" that close around materials, providing a secure grip for handling diverse objects ranging from construction debris and scrap metal to logs and large rocks. Designed with durability in mind, these attachments are constructed from high-strength steel alloys to withstand demanding work environments and heavy loads. The integration of an excavator grapple transforms a standard excavation machine into a versatile material handling solution, making it an invaluable tool across construction, demolition, forestry, waste management, and recycling industries.
Key Components & Structure
Understanding the anatomy of an excavator grab arm is essential for operators and purchasers alike. These specialized attachments are engineered with several crucial components working in harmony to deliver reliable performance in challenging environments.
Grabbing Mechanism
The heart of any excavator grab arm is its grabbing mechanism, which typically consists of two or more "fingers" or "tines" that move in opposition to grasp materials. These tines are strategically designed with varying patterns and configurations depending on the intended application. For example, models used in waste management feature more numerous, closely spaced tines to handle smaller objects, while forestry versions have fewer, more robust tines for gripping large logs. The tines themselves are crafted from wear-resistant alloy steel, often with hardened edges to extend operational lifespan. The grabbing mechanism incorporates synchronized movement patterns to ensure even pressure distribution when grasping objects, reducing the risk of material slippage during lifting operations.
Hydraulic System

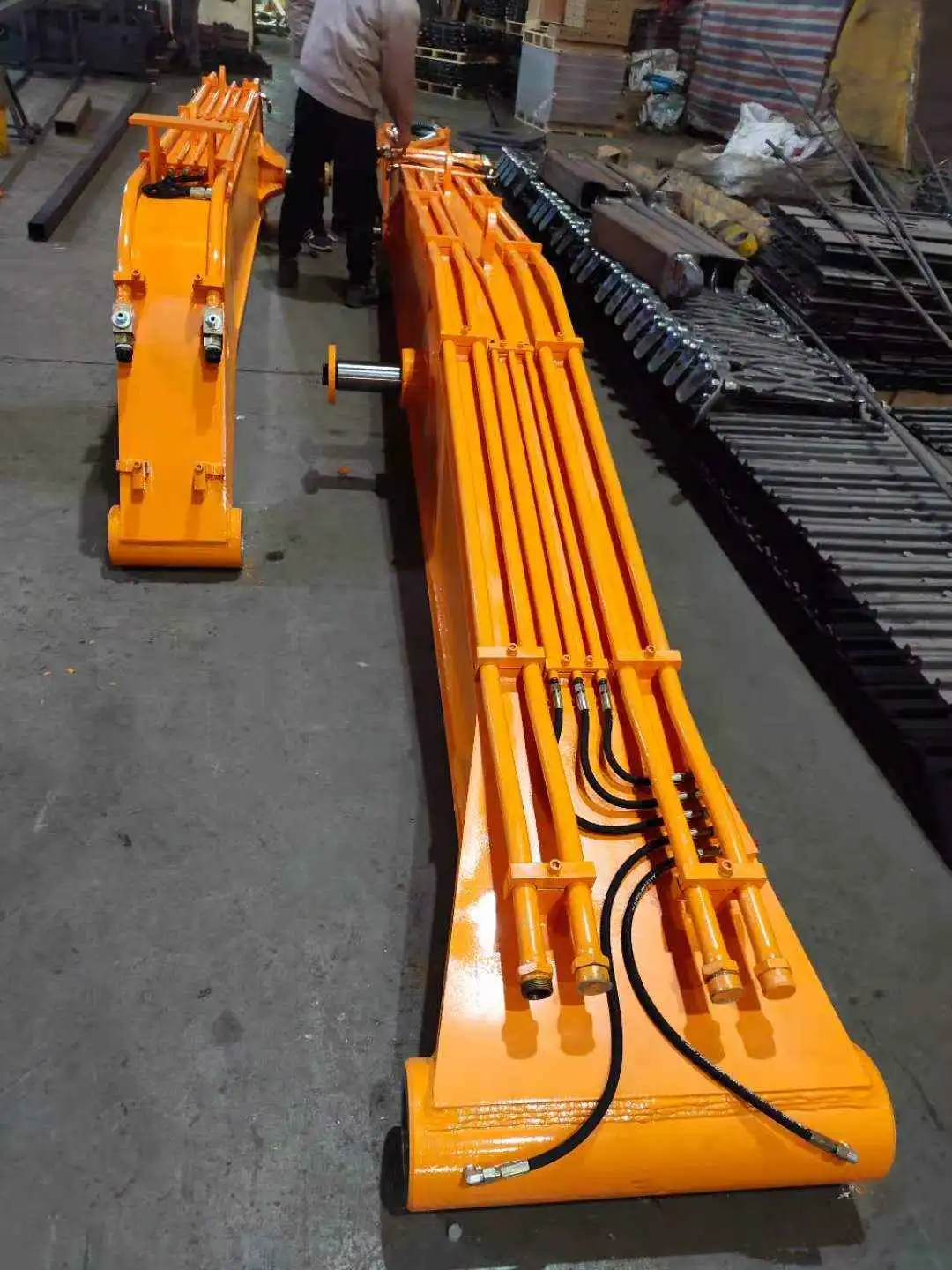

The hydraulic system powers the grabbing action and represents a critical component of the excavator grapple's functionality. This system includes high-pressure hydraulic cylinders that generate the substantial force required for the gripping mechanism. The cylinders are strategically positioned to maximize mechanical advantage while maintaining a compact profile. Most modern grapples utilize dual-action cylinders capable of both opening and closing the grabbing mechanism with precision control. The hydraulic system connects to the excavator's main hydraulic circuit through reinforced hoses and quick-connect couplings designed to withstand the high pressures involved in daily operations. Advanced models incorporate pressure-relief valves to prevent system damage when encountering immovable objects, along with flow control valves that allow operators to adjust the speed of the grapple's movement for different applications.
Mounting Interface
The mounting interface forms the crucial connection between the excavator and the grapple attachment. This interface is engineered to withstand the substantial forces encountered during material handling operations while facilitating quick attachment and detachment when needed. Standard configurations include pin-and-bushing systems and quick-coupler mounting plates that allow operators to switch between different attachments with minimal downtime. The interface incorporates hardened bushings at pivot points to minimize wear and extend service intervals. Reinforcement plates are strategically positioned to distribute loads evenly across the connection points, preventing stress concentration that could lead to premature failure. According to Tiannuo Machinery's specifications, their mounting systems are designed for compatibility with all major excavator brands, including custom options to ensure perfect integration with specific machine models.
Primary Functions
The versatility of the excavator grab arm makes it an indispensable tool across numerous industries and applications. Understanding its primary functions highlights why this attachment has become essential equipment for many operations.
Material Handling Capabilities
The fundamental purpose of an excavator grapple is precise and efficient material handling across diverse applications. In construction environments, these attachments excel at clearing demolition debris, loading trucks with rubble, and placing construction materials exactly where needed. The hydraulic gripping action provides secure control over irregularly shaped objects that would be difficult or impossible to manage with standard buckets. In recycling operations, grapples sort and separate different material types with precision, significantly improving process efficiency. The grabbing mechanism can be adjusted to apply appropriate pressure for handling delicate materials without damage while still providing sufficient force for heavier items. According to industry professionals featured in Tiannuo's testimonials, equipped excavators can reduce material handling times by up to 40% compared to traditional methods. This versatility extends to handling capabilities for materials ranging from scrap metal and concrete to organic waste and raw materials.
Industry-Specific Applications
Excavator grapples find specialized applications across numerous industries, each benefiting from the attachment's unique capabilities. In forestry operations, they're essential for gathering felled trees, clearing brush, and loading timber onto transport vehicles. The forestry-specific models feature reinforced tines and additional guarding to withstand the rigors of this demanding environment. Maritime and dock operations utilize grapples for unloading bulk cargo from ships, as mentioned in Tiannuo's product description highlighting dock unloading applications. The railway sector employs specialized grapples for railway maintenance and transportation unloading, allowing efficient handling of track materials and cargo. Scrap yards and recycling facilities depend on these attachments for sorting and processing various waste materials, including the waste steel handling mentioned in Tiannuo's application list. Mining operations utilize heavy-duty models for moving ore and clearing debris from extraction sites. Agricultural applications include handling of large bales, removal of fallen trees, and clearing of agricultural waste products.
Efficiency Improvements
The implementation of excavator grapples delivers measurable efficiency improvements across multiple operational aspects. Material processing speeds increase significantly as operators can grab, move and place materials in one continuous motion instead of the multiple steps required with conventional attachments. This streamlined workflow reduces cycle times in loading operations by eliminating the need for additional equipment or manual labor to position materials correctly. Fuel efficiency improves as machines accomplish more work per operating hour, reducing both operational costs and environmental impact. The precise grabbing capability minimizes material spillage during transfers, reducing cleanup time and material losses. The versatility of a single machine equipped with a grapple often replaces multiple specialized pieces of equipment, reducing capital investment requirements and simplifying fleet management. According to Tiannuo Machinery's product information, their grapples are specifically designed to improve material handling efficiency in construction and logistics operations. The ability to quickly switch between conventional buckets and grapple attachments further enhances overall project flexibility and resource utilization.
Difference from an Excavator Arm/Boom
Understanding the distinction between standard excavator components and specialized attachments clarifies the value proposition of grapple technology.
Structural Distinctions
While standard excavator arms and booms provide the reach and positioning capability for the machine, they lack the specialized gripping functionality that defines the excavator grab arm. Standard excavator assemblies typically consist of a main boom connected to the machine's upper structure, with a stick (or arm) attached to the boom's end, followed by a bucket or other attachment. In contrast, the grapple represents a specialized end attachment designed specifically for gripping operations. The standard components focus on providing stability, reach, and digging force, while grapples are engineered primarily for secure material handling. Unlike conventional buckets that simply scoop materials, grapples employ opposing jaws that close around objects from multiple directions. The materials used also differ significantly - while standard booms prioritize weight-optimized structural strength, grapples incorporate wear-resistant alloys at contact points to withstand abrasive materials. Tiannuo's manufacturing process for these components, as described on their website, includes beveling welding to prevent deformation and shot blasting to eliminate internal stress, techniques specifically adapted for the unique loads experienced by gripping attachments.
Operational Flexibility
The addition of a grapple attachment dramatically expands an excavator's operational flexibility compared to machines equipped only with standard arms and buckets. While conventional setups excel at digging and bulk material handling, they struggle with irregularly shaped items or precise placement tasks. Grapple-equipped machines can transition seamlessly between various material types without changing attachments, handling everything from bulk aggregates to individual objects with precision. This versatility reduces the need for multiple specialized machines on work sites, improving resource allocation. The excavator grab arm enables operations that would be impossible with standard configurations, such as selective sorting of mixed materials or handling objects that would slip from conventional buckets. According to Tiannuo Machinery's product description, their excavator grab arms offer "extended reach and enhanced articulation, allowing operators to perform complex tasks with ease." This operational advantage translates to fewer machine movements per task, reduced cycle times, and lower overall project costs across diverse applications.
Material Selection Considerations
The materials used in constructing excavator components vary significantly between standard arms and specialized grapple attachments due to their different functional requirements. Tiannuo Machinery's website specifically mentions using "high-strength alloy plates for arms" in their grapple construction, indicating the premium materials required for these attachments. Standard arms typically utilize structural steel formulations that balance weight, cost, and strength for general excavation work. In contrast, grapple components face intensive abrasion and point loading during grasping operations, necessitating specialized metallurgy. The pin shafts in Tiannuo's grapples utilize 40Cr steel, a chromium alloy known for excellent wear resistance and fatigue strength - critical properties for components experiencing repeated stress cycles. Brass bushings are incorporated at the arm base to reduce friction and extend service intervals at pivot points. Cold-drawn seamless pipe construction for iron pipes ensures consistent wall thickness and superior structural integrity compared to welded alternatives. These material differences directly impact durability, with properly constructed grapples designed to maintain performance despite the punishing conditions of grabbing abrasive materials. The selection of appropriate alloys and manufacturing techniques represents a crucial consideration when evaluating grapple attachments for specific operational environments.
FAQ
①What excavator size is compatible with Tiannuo's grab arms?
Tiannuo offers various models suitable for different excavator sizes. Their TN120 model works with 12-16 ton excavators, while their largest TN400 model is designed for 40-49 ton machines.
②What is the typical lead time for an excavator grab arm?
According to Tiannuo, the typical lead time is 4-6 weeks, depending on customization requirements.
③How do I maintain an excavator grab arm?
Regular inspection and maintenance are recommended. Tiannuo provides a detailed maintenance guide with each purchase to help maintain optimal equipment condition.
④Are Tiannuo's grab arms compatible with all excavator brands?
Yes, their grab arms are designed to be compatible with all major excavator brands, with customization options available to ensure proper fit.
In summary, excavator grapples represent a specialized yet versatile attachment that significantly enhances an excavator's functionality across numerous industries. With proper selection and maintenance, these robust attachments deliver substantial operational benefits through improved material handling capabilities and workplace efficiency. For more information about excavator grab arms or to discuss your specific application needs, contact Tiannuo Machinery at raymiao@stnd-machinery.com.
