How far can an excavator grab arm reach?
The reach capability of an excavator grab arm varies significantly based on several key factors. Typically, standard grab arms can reach between 18 to 70 feet horizontally, depending on the machine's size class. Mini excavators equipped with grab attachments might only reach 8-12 feet, while mid-sized models generally achieve 20-35 feet. The most impressive reach comes from specialized high-reach demolition excavators with custom grab arm configurations, which can extend up to 100-150 feet vertically. The precise reach depends on three critical factors: the excavator's base size, the configuration of boom and stick components, and the specific design of the grapple attachment. For operations requiring extended reach capabilities, manufacturers like Tiannuo offer customized solutions that can be tailored to specific project requirements, allowing for optimized material handling at various distances and heights while maintaining stability and operational efficiency.
Excavator's Size
The base size of an excavator plays a fundamental role in determining how far its grab arm can reach. This relationship exists because larger machines provide the necessary counterweight and stability required for extended reach operations.
Mini Excavators (1-6 tons)
Mini excavators are compact machines designed primarily for confined spaces and smaller construction projects. When equipped with a grab attachment, these compact machines typically offer:
Horizontal reach: 8-12 feet
Vertical reach: 9-15 feet
Digging depth: 5-12 feet
These measurements make mini excavators with grab attachments ideal for landscaping, small demolition projects, and precision material handling in tight spaces. However, their reach capabilities are naturally limited by their compact size and lower hydraulic power.
Mid-Size Excavators (7-30 tons)
Medium-sized excavators represent the versatile middle ground in the equipment spectrum and are frequently used with grab attachments for various applications:
Horizontal reach: 20-35 feet
Vertical reach: 22-40 feet
Digging depth: 14-24 feet
These machines offer a practical balance between maneuverability and reach capability, making them suitable for general construction, waste handling, and forestry applications where moderate reach is required.
Standard Large Excavators (30-90 tons)
Large excavators provide substantially more reach and power, making them suitable for major construction projects, mining operations, and large-scale material handling:
Horizontal reach: 35-70 feet
Vertical reach: 40-75 feet
Digging depth: 25-45 feet
The substantial counterweight and robust hydraulic systems of these machines enable them to safely handle heavier loads at greater distances, significantly enhancing operational efficiency in large-scale projects.
Boom/Stick Length
The configuration of boom and stick components directly influences how far an excavator grab arm can extend, offering various reach profiles for different applications.
Standard Configuration
The standard boom and stick configuration found on most excavators provides balanced reach characteristics suitable for general operations:
Typical boom length: 15-25 feet (varies by excavator size)
Typical stick length: 8-15 feet (varies by excavator size)
Combined reach factor: Approximately 1.5-2x the excavator's base machine length
This standard setup delivers good versatility across digging, lifting, and grabbing applications, representing the most common configuration used with grab attachments.
Long Reach Configuration
Specially designed for operations requiring extended reach, these configurations incorporate longer booms and sticks:
Extended boom length: Can be 25-50% longer than standard
Extended stick length: Can be 20-40% longer than standard
Combined reach factor: Can extend horizontal reach by 30-60% compared to standard configurations
These configurations are particularly valuable for operations like river dredging, slope maintenance, and reaching across obstacles where standard equipment would be insufficient. However, lifting capacity typically decreases as reach increases due to physics and stability constraints.
Three-Piece/Multi-Section Booms
Advanced articulated boom designs offer enhanced versatility and reach capabilities:
Articulation points: 2-3 hydraulically controlled joints
Working envelope: Significantly expanded compared to standard configurations
Maneuverability advantage: Can reach around and over obstacles more effectively
These specialized configurations allow operators to position grab arms with greater precision in complex environments, offering enhanced maneuverability that can be particularly valuable in demolition work, scrap handling, and operations in congested areas.
Grapple Design
The specific design of the grapple attachment itself influences both reach effectiveness and operational capabilities of the excavator grab arm system.
Rotator Integration
The inclusion of rotator mechanisms affects how the grab functions at extended reaches:
360-degree rotation capability: Enhances positioning precision at distance
Hydraulic integration requirements: More complex at extended reaches
Control precision: Generally decreases slightly as reach increases
Modern hydraulic technology has significantly improved rotator functionality at extended reaches, but operators must still account for increased response time and slightly reduced precision when working at maximum extension.
Jaw Configuration
The design of the grabber jaws impacts both reach effectiveness and material handling capabilities:
Wide-opening jaws: Typically provide 40-70 inches of opening capacity
Specialized forest grapples: Can reach around larger objects effectively
Demolition grapples: Designed for precise grabbing at height
The jaw design must be matched appropriately to both the reach requirements and the material being handled, as certain jaw configurations may limit effective working reach due to weight and hydraulic power constraints.
Weight Considerations
The weight of the grapple attachment directly impacts the effective reach of the system:
Standard grapple weight: 500-4,000 pounds (depending on size)
Weight impact on reach: Each additional 1,000 pounds may reduce maximum reach by 5-10%
Load capacity relationship: Higher capacity grapples generally reduce maximum reach
Weight calculations must consider both the grapple itself and the maximum anticipated load, as these combined factors determine the effective working reach of the system. Tiannuo Machinery's custom grab arm solutions are engineered to optimize this relationship for specific applications.
FAQ
①How does an excavator's reach differ from its digging depth?
An excavator's reach measures the horizontal distance from the machine's center point to the furthest extension of the attachment, while digging depth refers to how far below ground level the machine can effectively excavate. The reach is particularly important for grab arm operations involving material handling at a distance.
②Can excavator grab arms be customized for specific reach requirements?
Yes, manufacturers like Tiannuo specialize in creating custom excavator grab arm configurations that can be tailored to specific reach requirements. These customizations may involve modified boom/stick lengths, specialized hydraulic systems, or counterweight adjustments to maintain stability at extended reaches.
③What safety considerations apply when operating grab arms at maximum reach?
When operating at maximum reach, operators must carefully monitor machine stability, reduce maximum load capacity appropriately, ensure level ground conditions, and maintain awareness of the shifting center of gravity. The lifting capacity typically decreases significantly as the arm extends to its maximum reach.
④How does weather affect the safe operating reach of excavator grab arms?
Wind conditions can significantly impact safe operating reach, particularly when handling lightweight but bulky materials. Heavy rain may affect ground stability, potentially reducing safe operating reach. In extreme conditions, manufacturers recommend reducing maximum operating reach by 10-20% as a safety precaution.
⑤What maintenance is required to maintain maximum reach performance?
Regular hydraulic system maintenance, boom and stick inspection for wear or deformation, pin and bushing lubrication, and calibration of load moment indicators are essential for maintaining optimal reach performance. Neglected maintenance can reduce effective reach capabilities over time.
About Tiannuo
The reach capability of a grab arm is determined by a complex interplay of machine size, boom and stick configuration, and grapple design. While standard excavators offer reaches between 18-70 feet horizontally, specialized configurations can extend this range significantly for specific applications. Understanding these variables allows project managers and operators to select the optimal equipment configuration for their material handling requirements.
Tiannuo Machinery specializes in creating tailored excavator grab arm configurations optimized for extended reach with precise control. Our customized solutions are designed to meet specific project requirements for grabbing materials in various applications such as dock unloading, railway transportation unloading, and waste steel handling.

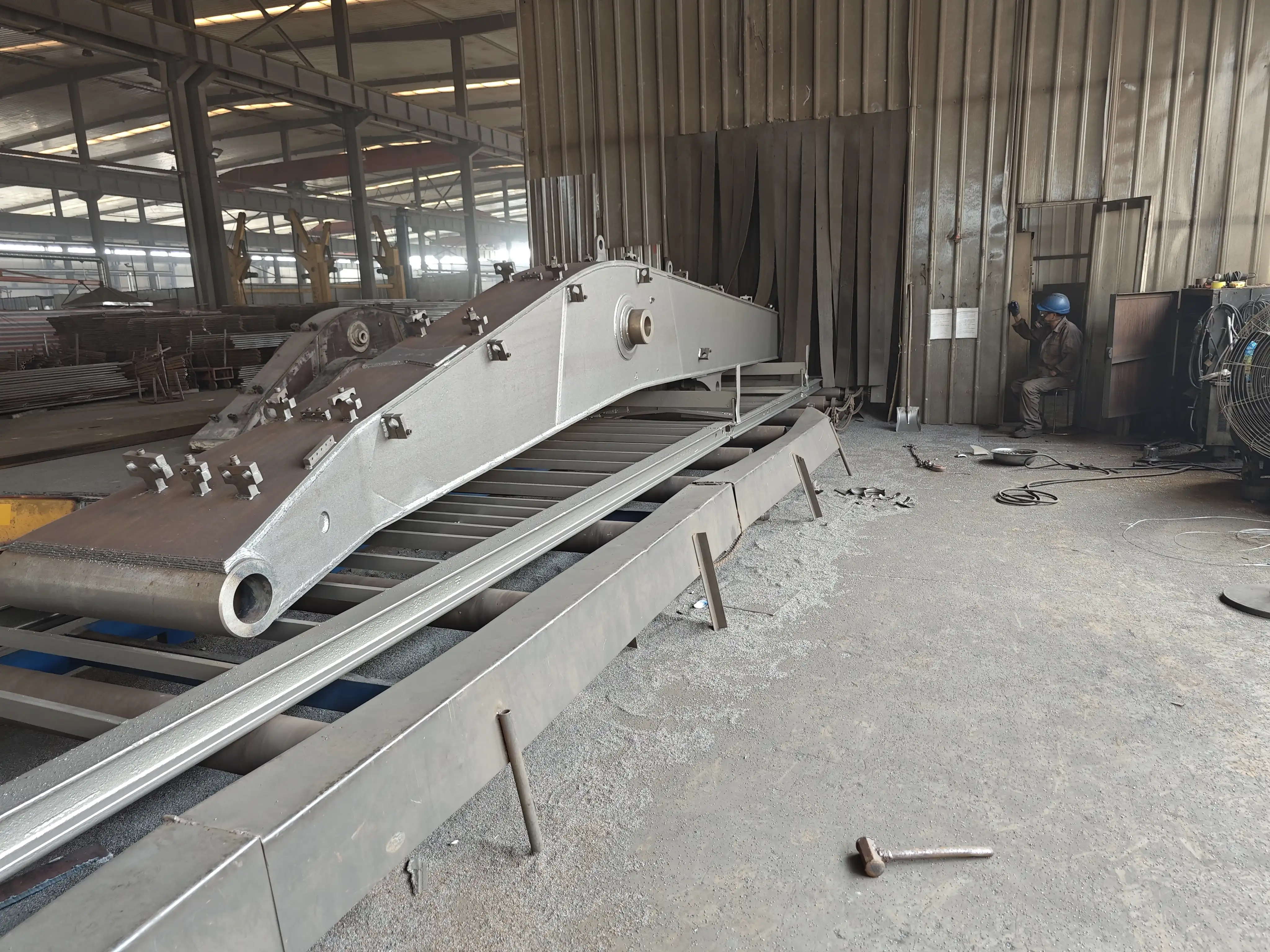

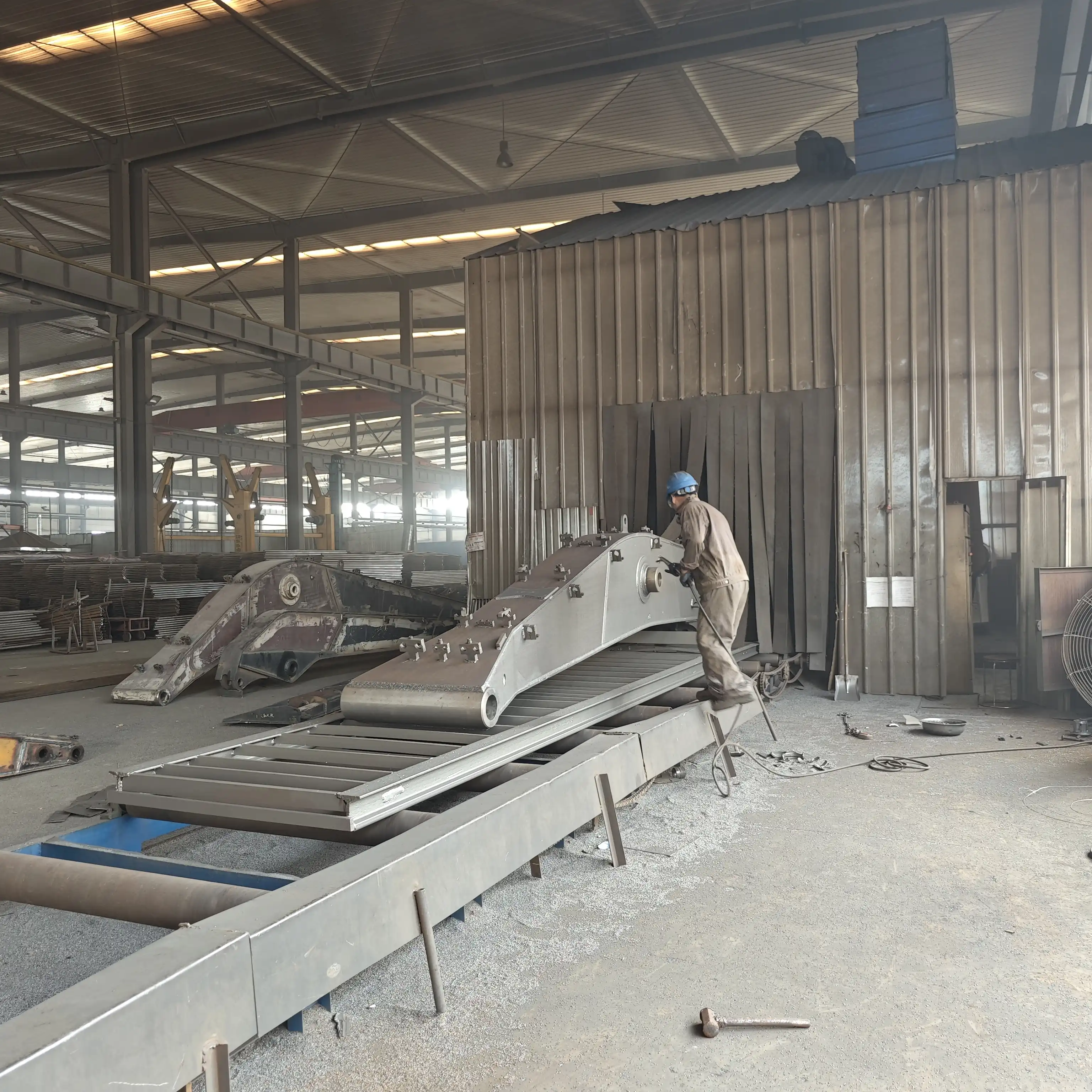

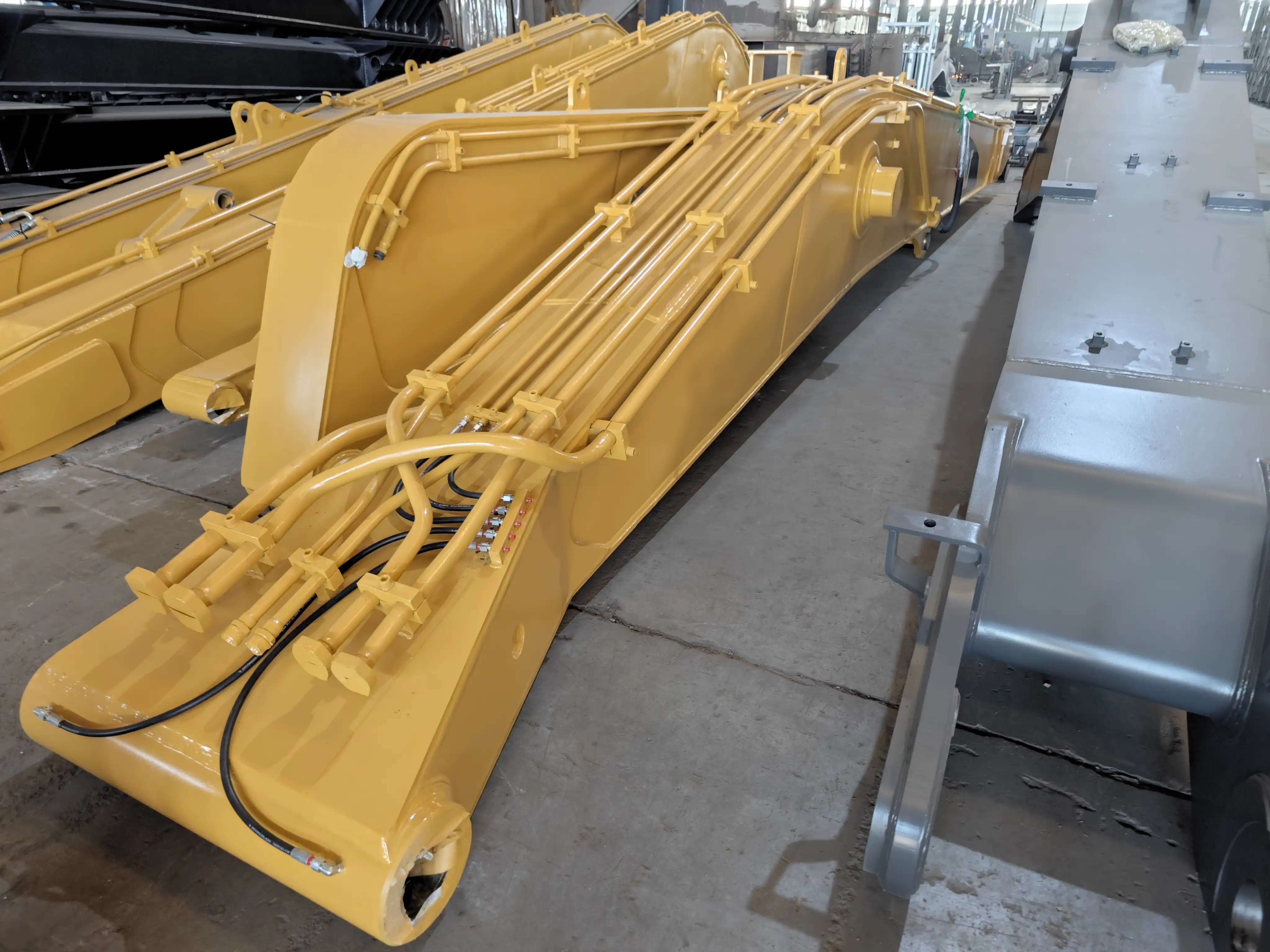

The grab arms are manufactured using high-strength alloy plates for durability, cold-drawn seamless pipes for iron pipes, 40Cr steel for pin shafts, and brass bushings for the arm base. Our manufacturing process includes beveling and welding to prevent deformation, shot blasting to eliminate internal stress, and post-welding treatment involving grinding, painting, quality inspection, and warehousing.
These customization options are built for heavy-duty performance and improve material handling efficiency in construction and logistics. If you need more information about our custom excavator attachments designed for your specific reach requirements, feel free to contact our engineering team at arm@stnd-machinery.com.
