What are the components of loader tire anti-skid tracks?
Loader tire anti-skid tracks are essential components in heavy machinery, particularly in challenging environments such as mines, quarries, and construction sites. These tracks provide enhanced traction, stability, and protection for loader tires, significantly improving operational efficiency and safety. Shandong Tiannuo will explore the key components, functions, and materials used in their construction.
How do base plates and side plates contribute to track stability?
The foundation of any loader tire anti-skid track system lies in its base plates and side plates. These components work in tandem to provide the necessary stability and support for the entire track assembly.
Base plates, also known as baseboards or grouser plates, form the primary contact surface between the track and the ground. They are typically made from high-strength materials such as 35CrMo, a chromium-molybdenum alloy steel known for its excellent wear resistance and toughness. The base plates are designed with a specific pattern or profile that enhances traction on various surfaces, from soft mud to hard rock.
Key features of base plates include:
- Grouser bars or cleats for improved grip
- Reinforced edges to resist bending and deformation
- Optimized spacing to balance traction and self-cleaning properties
Side plates, on the other hand, are vertical components that connect the base plates and form the links of the track chain. Typically manufactured from 45# carbon steel, side plates provide lateral stability and help distribute the load evenly across the track. The design of side plates is crucial for maintaining proper track alignment and preventing derailment during operation.
Important aspects of side plate design include:
- Reinforced pin holes to minimize wear at connection points
- Optimized shape to reduce stress concentrations
- Adequate thickness to withstand lateral forces
The combination of well-designed base plates and side plates contributes significantly to the overall stability of loader tire anti-skid tracks. This stability is essential for maintaining control of the loader in various operating conditions, from steep inclines to uneven terrain.
Significance Of Bolts In Securing Anti-Skid Track Components
While base plates and side plates form the primary structure of loader tire anti-skid tracks, the bolts that hold these components together are equally crucial. The significance of these fasteners cannot be overstated, as they play a vital role in maintaining the integrity and performance of the entire track system.
High-strength bolts are used to secure the base plates to the side plates, creating a robust and flexible chain that can withstand the extreme forces encountered during loader operations. These bolts are typically made from alloy steel and are heat-treated to achieve the necessary strength and durability.
Key aspects of bolt selection and installation for loader tire anti-skid tracks include:
- Proper sizing to ensure adequate load-bearing capacity
- Use of lock washers or other locking mechanisms to prevent loosening
- Correct torque application during installation
- Regular inspection and maintenance to detect and address any signs of wear or loosening
The bolts used in anti-skid tracks must withstand not only the static loads of the loader's weight but also the dynamic forces generated during operation. This includes shock loads from impacts, tensile forces as the track flexes around obstacles, and shear forces as the loader turns or maneuvers on uneven ground.
Proper bolt selection and installation are critical for several reasons:
- Safety: Loose or failed bolts can lead to track failure, potentially causing accidents or equipment damage.
- Performance: Securely fastened components ensure optimal track performance and longevity.
- Maintenance: Well-designed bolt assemblies simplify track maintenance and repair procedures.
Regular inspection and maintenance of bolts are essential practices in ensuring the continued reliability of loader tire anti-skid tracks. Operators and maintenance personnel should be trained to recognize signs of bolt wear or loosening, such as unusual noise during operation or visible gaps between components.
An Overview Of Key Materials Used In Loader Track Components
The choice of materials for loader tire anti-skid track components is crucial in determining the track's performance, durability, and overall lifespan. Manufacturers like Tiannuo Machinery carefully select materials that can withstand the harsh conditions typically encountered in mining, quarrying, and construction environments.
Let's examine some of the key materials used in various track components:
1. Base Plates (Baseboards)
Material: 35CrMo (Chromium-Molybdenum Alloy Steel)
Properties and benefits:
- High strength-to-weight ratio
- Excellent wear resistance
- Good toughness and impact resistance
- Ability to withstand high stresses without deformation
2. Side Plates
Material: 45# Carbon Steel
Properties and benefits:
- Good balance of strength and ductility
- Excellent machinability for precise manufacturing
- Cost-effective solution for high-volume production
- Adequate resistance to wear and fatigue
3. Bolts and Fasteners
Material: Alloy Steel (specific grade may vary)
Properties and benefits:
- High tensile strength
- Good resistance to fatigue and stress
- Ability to maintain strength at elevated temperatures
- Corrosion resistance (when properly treated or coated)
4. Bushings and Pins
Material: Hardened Steel or Case-Hardened Steel
Properties and benefits:
- Excellent wear resistance
- High surface hardness with a tough core
- Ability to withstand high loads and impacts
- Good dimensional stability
The use of these high-quality materials contributes significantly to the overall performance and longevity of loader tire anti-skid tracks. For instance, the 35CrMo material used in base plates offers an excellent combination of strength and wear resistance, crucial for maintaining traction in abrasive environments. Similarly, the 45# carbon steel used in side plates provides the necessary strength and flexibility to withstand the dynamic forces experienced during loader operations.
It's worth noting that the manufacturing processes used to produce these components are equally important. For example, Tiannuo Machinery employs forging techniques for chain plates, which enhances their structural integrity and durability. This attention to both material selection and manufacturing processes results in anti-skid tracks that offer superior puncture-resistance, impact-resistance, and anti-slip properties.
The weight of the tracks is another crucial factor to consider. For instance, Tiannuo Machinery's 23.5-25 model standard tire anti-skid tracks for 50-ton loaders weigh 530 KG per track. This weight is carefully engineered to provide the necessary traction and protection without excessively increasing the loader's overall weight, which could negatively impact fuel efficiency and maneuverability.
When selecting loader tire anti-skid tracks, it's essential to consider the specific operating conditions and requirements of your application. Factors such as terrain type, typical load weights, and environmental conditions should all play a role in determining the most suitable track design and material composition.

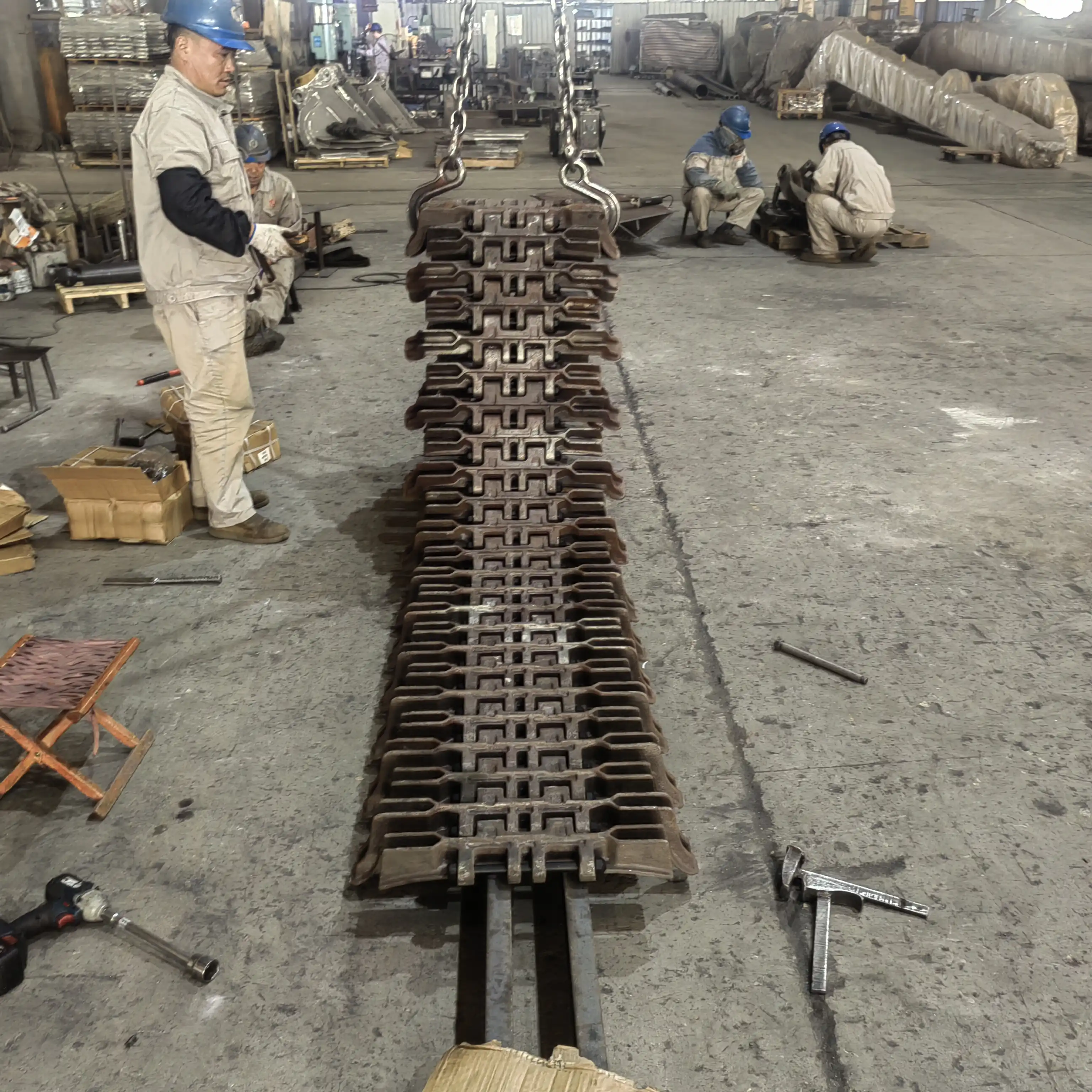

Tiannuo Machinery Loader Tire Anti-Skid Track
Loader tire anti-skid tracks are complex systems comprised of multiple components, each playing a crucial role in the overall performance and durability of the track. From the base plates that provide traction to the side plates that ensure stability, and the bolts that hold everything together, every element must be carefully designed and manufactured to withstand the harsh conditions of heavy-duty operations.
The materials used in these components, such as 35CrMo for base plates and 45# carbon steel for side plates, are selected for their specific properties that contribute to the track's strength, wear resistance, and longevity. The manufacturing processes, including forging techniques for chain plates, further enhance the structural integrity of the tracks.
Tiannuo Machinery stands out as a leading manufacturer and supplier specializing in the production of Loader Anti-Skid Crawler. With over a decade of experience in the heavy equipment industry, they have honed their expertise in creating high-quality anti-skid tracks that meet the demanding needs of various industries.
If you're looking to upgrade your 50-ton Loader with state-of-the-art 23.5-25 model standard tire anti-skid tracks, Tiannuo Machinery offers a solution designed to enhance operational efficiency and safety. Each track consists of 27 links, carefully engineered to provide superior puncture-resistance, impact-resistance, and anti-slip properties.
These tracks are ideal for use in challenging environments such as mines, quarries, tunnels, and other harsh terrains. By choosing Tiannuo Machinery's anti-skid tracks, you can provide additional protection for your equipment, reduce tire wear, increase work efficiency, and ensure job safety.
Take action now to improve your loader's performance and protect your investment. If you're in the market for a reliable loader tire anti-skid track manufacturer, we welcome you to contact our team. Reach out to our manager at arm@stnd-machinery.com, or connect with our team members at rich@stnd-machinery.com and tn@stnd-machinery.com. Let Tiannuo Machinery's expertise work for you in enhancing your loader's capabilities and safeguarding your operations.
