Key Components of an Excavator Standard Arm

Excavators are essential machines in the construction and mining industries, known for their versatility and power. At the heart of these robust machines lies a complex system of components that work together to perform various tasks efficiently. In this comprehensive guide, we'll explore the key components of an excavator, focusing on the excavator standard arm, boom, stick, and bucket. Understanding these elements is crucial for operators, maintenance personnel, and anyone involved in the heavy equipment industry.

The Excavator Standard Arm: The Backbone of Digging Power

The excavator standard arm is a critical component that plays a pivotal role in the machine's overall functionality. It serves as the main structural element connecting the excavator's body to the working attachments. The standard arm is designed to withstand immense stress and provide the necessary leverage for digging, lifting, and manipulating materials.

Key features of the excavator standard arm include:

• High-strength steel construction for durability and longevity
• Optimized geometry for improved reach and digging depth
• Reinforced pivot points to handle heavy loads and repetitive movements
• Hydraulic cylinders for precise control and powerful operation

The design of the excavator standard arm significantly influences the excavator's performance, including its digging force, lifting capacity, and overall reach. Manufacturers often offer various arm options to cater to different job requirements and operating conditions.

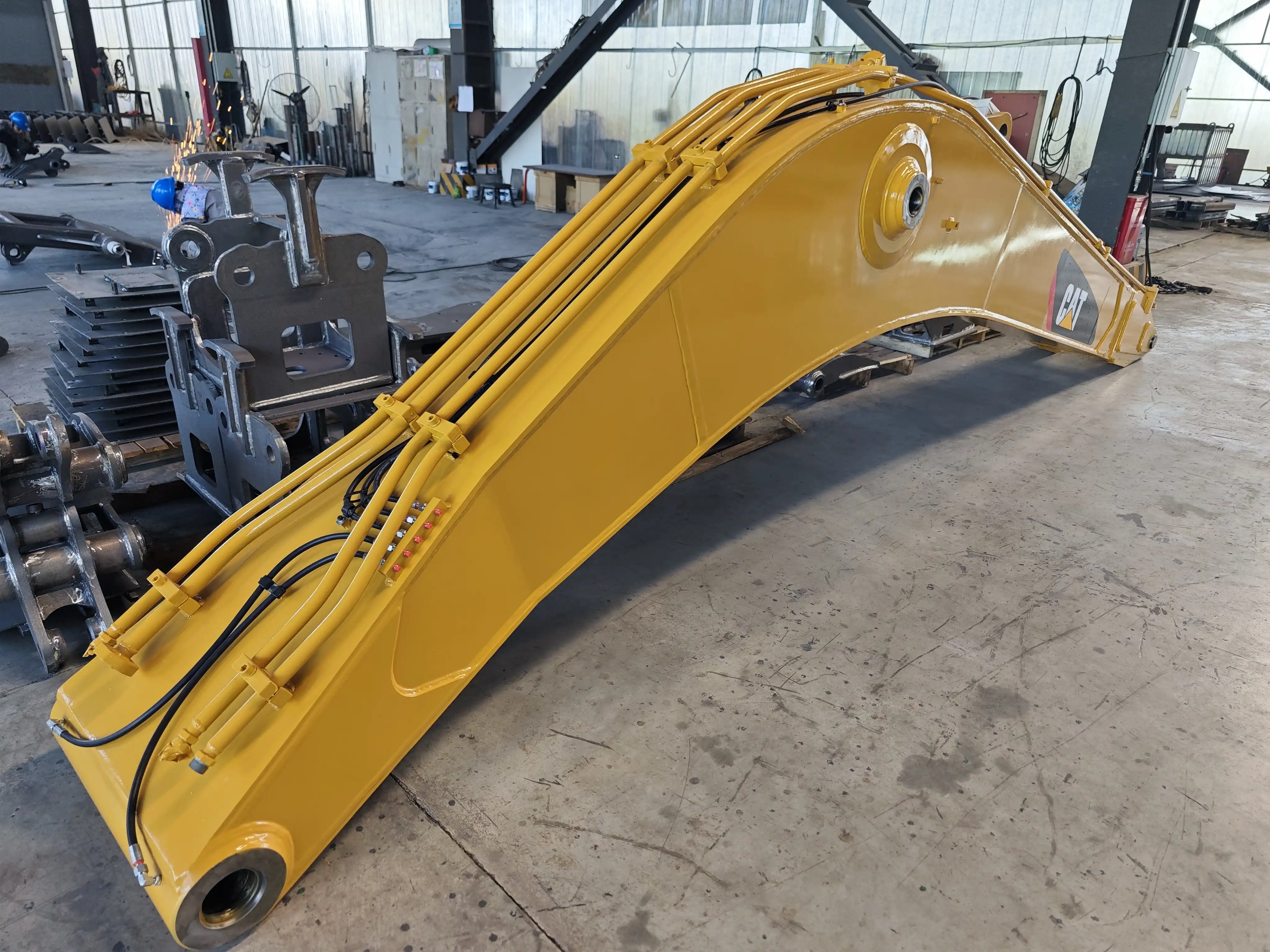

The Boom: Extending the Excavator's Reach

Working in tandem with the excavator standard arm, the boom is another crucial component of an excavator. It's the long, pivoting structure that extends from the excavator's main body and connects to the arm. The boom's primary functions include:

• Providing vertical reach for digging at various heights
• Supporting the weight of the arm, stick, and bucket
• Facilitating the swing motion of the entire front attachment

Excavator booms come in different configurations, such as:

1. Mono boom: A single-piece boom design known for its simplicity, strength, and efficiency. It provides excellent digging depth, making it ideal for general excavation, trenching, and earthmoving tasks. The rigid structure enhances stability and durability, reducing maintenance needs and ensuring long-term performance in demanding construction environments.
2. Two-piece boom: Designed for enhanced versatility, this boom consists of two articulating sections, allowing for a wider working range and increased flexibility. It is particularly useful for urban construction, demolition, and material handling, where precision and maneuverability are essential. The adjustable angles enable better reach and lifting efficiency, making it a preferred choice for complex job sites.
3. Telescopic boom: This adjustable-length boom is ideal for specialized applications requiring extended reach and compact storage. It is commonly used in deep excavation, underground construction, high-reach demolition, and tunnel projects. The telescoping mechanism allows for precise control over reach and depth, improving operational efficiency in confined or hard-to-access areas.

The choice of boom type depends on the specific requirements of the job site and the tasks to be performed. Each configuration has its advantages in terms of reach, stability, and maneuverability.

The Stick and Bucket: Precision Tools for Excavation

Completing the front attachment assembly are the stick and bucket. These components work together to perform the actual digging and material handling tasks.

The Stick:

Also known as the dipper or arm, the stick is an essential component that connects the boom to the bucket, playing a vital role in the excavator's overall digging performance and reach. Its design directly affects the machine’s digging depth, reach, and breakout force, making it a critical part of excavation operations.

• Variable lengths to suit different applications:Excavator sticks come in different lengths to accommodate various applications. Shorter sticks offer greater digging force and stability, making them ideal for heavy-duty digging and trenching tasks. Longer sticks provide extended reach, suitable for light-duty excavation, slope finishing, and material handling.
• Reinforced construction to withstand digging forces:Manufactured from high-strength alloy steel, the stick is designed to withstand extreme digging forces and heavy loads. Reinforced welding and additional gussets are often applied at stress points to improve durability and fatigue resistance, ensuring reliable performance in demanding working conditions.
• Hydraulic cylinder for precise control of the bucket's movement:The stick is equipped with a hydraulic cylinder that controls the bucket’s movement with precision. This hydraulic system allows the operator to adjust the bucket’s angle and position accurately, enhancing the excavator’s ability to perform various digging, lifting, and grading tasks efficiently.

The Bucket:

As the primary working tool of the excavator, the bucket is responsible for scooping, digging, and carrying materials. Buckets come in various sizes and designs to accommodate different tasks and soil types. Some common bucket types include:

• General purpose buckets for everyday digging and loading
• Rock buckets with reinforced edges for handling abrasive materials
• Trenching buckets for creating narrow, precise trenches
• Grading buckets for smooth finishing and landscaping work

The selection of the appropriate bucket is crucial for maximizing productivity and efficiency on the job site.

China Excavator Standard Arm Suppliers

Understanding the key components of an excavator, particularly the excavator standard arm, boom, stick, and bucket, is essential for anyone involved in the construction or mining industries. These components work together seamlessly to provide the power, precision, and versatility that make excavators indispensable on job sites worldwide.

If you're in the market for high-quality standard-size excavator booms and arms, Tiannuo Machinery is your ideal choice. With over 10 years of industry experience, Tiannuo Machinery is a leading manufacturer and supplier of excavator components, recognized for its commitment to superior quality and outstanding performance.

Our products feature:

• Built with premium high-strength steel, ensuring exceptional durability and resistance to fatigue, even in the most demanding job sites.
• Our excavator booms can extend up to 15 meters, making them ideal for deep excavation, high-reach operations, and various construction applications.
• With an impressive lifting capacity of up to 30 tons, our products ensure stability and efficiency for heavy-duty construction tasks.
• Compatibility with all major excavator brands
• We provide tailor-made solutions, including modifications in length, thickness, and mounting interfaces, to meet the unique requirements of your project.

Don't settle for anything less than the best when it comes to your excavator components. Contact Tiannuo Machinery today to discuss your requirements and discover how our expertly crafted standard size excavator booms and arms can enhance your operations.

Reach out to our team:

• Manager: arm@stnd-machinery.com
• Sales Team: rich@stnd-machinery.com or tn@stnd-machinery.com

Experience the difference that quality excavator components can make in your projects. Contact Tiannuo Machinery now and take your excavation capabilities to the next level!
