How to customize the rail track trolley to meet specific track requirements?
Rail track trolleys are essential components in various industrial settings, providing efficient transportation of heavy loads along railway tracks. However, not all rail systems are created equal, and often, standard trolleys may not meet the unique requirements of specific track configurations. This article explores the world of rail trolley customization, discussing available options, design considerations, and ways to ensure compatibility with existing infrastructure.
Rail Track Trolley Customization Options
When it comes to customizing rail track trolleys, several options are available to meet specific track requirements. These customizations can range from minor adjustments to major overhauls, depending on the unique needs of the railway system.
One of the primary customization options is adjusting the wheel configuration. This can involve changing the wheel size, material, or profile to match the rail type and ensure smooth operation. For instance, trolleys designed for heavy loads might require larger wheels with more durable material, such as forged steel, to withstand the increased stress.
Another crucial aspect of customization is the trolley's frame. The frame can be modified in terms of size, shape, and material to accommodate different load capacities and track dimensions. For example, a trolley designed for a narrow-gauge railway would need a compact frame compared to one used on a standard gauge track.
Customization can also extend to the trolley's coupling system. Different coupling mechanisms can be incorporated to ensure compatibility with various types of locomotives or other trolleys in the system. This might include automatic couplers for frequent connect-disconnect operations or more robust coupling systems for heavy-duty applications.
Designing Rail Track Trolleys for Unique Track Dimensions
Designing a rail track trolley for unique track dimensions requires careful consideration of several factors. The process typically begins with a thorough analysis of the existing track system, including its gauge, curvature, and load-bearing capacity.
The track gauge, which is the distance between the inner edges of the rails, is a critical factor in trolley design. Standard gauge railways (1,435 mm) are common in many countries, but narrow gauge and broad gauge systems also exist. The trolley's wheel spacing must be precisely matched to the track gauge to ensure stable and efficient operation.
Track curvature is another crucial consideration. Trolleys designed for tracks with tight curves may require a shorter wheelbase or specialized wheel arrangements to navigate the bends without derailing. This might involve the use of articulated designs or differential wheel speeds to reduce friction and wear on curved sections.
The load-bearing capacity of the track also plays a significant role in trolley design. Heavier loads require stronger frames and more robust wheel assemblies. However, the trolley's weight must be carefully balanced to avoid exceeding the track's load limits. This often involves using lightweight yet strong materials in the trolley's construction.
Additionally, the trolley's height and width must be considered to ensure clearance within the existing infrastructure. This includes accounting for tunnels, bridges, and platform heights along the route. A comprehensive survey of the entire track system is essential to identify any potential clearance issues.
Ensuring Compatibility Between Rail Track Trolleys and Existing Infrastructure
Ensuring compatibility between customized rail track trolleys and existing infrastructure is crucial for seamless integration and operation. This process involves several key steps and considerations.
First, a detailed assessment of the existing rail system is necessary. This includes examining not just the tracks themselves, but also associated infrastructure such as loading docks, maintenance facilities, and storage areas. The trolley design must account for all these elements to ensure it can operate effectively within the entire system.
Compatibility also extends to the power systems used in the railway. If the trolleys are powered, they must be compatible with the existing electrical systems. This might involve matching voltage requirements or ensuring that any onboard power systems do not interfere with existing signaling or communication systems.
Another important aspect is the interface between the trolley and other rolling stock. The height and configuration of coupling systems must be standardized to allow the trolley to connect with locomotives or other cars in the fleet. This may require adjustable coupling systems or the development of custom interface components.
Safety systems are also a critical consideration. The trolley must be compatible with existing brake systems and safety protocols. This might involve integrating specific types of brake systems or incorporating safety features that align with established operating procedures.
Lastly, maintenance compatibility should not be overlooked. The customized trolley should be designed with consideration for existing maintenance facilities and practices. This includes ensuring that components are accessible for routine maintenance and that any specialized parts or tools required for servicing are compatible with the maintenance team's capabilities.
Rail Track Trolley For Sale
Welcome to Tiannuo Machinery, your reliable partner in the field of heavy machinery. Our dedicated team is always ready to assist you. You can reach out to our esteemed manager at arm@stnd-machinery.com for any inquiries or business discussions. Additionally, our professional team members are available at rich@stnd-machinery.com and tn@stnd-machinery.com to provide you with prompt and comprehensive support.

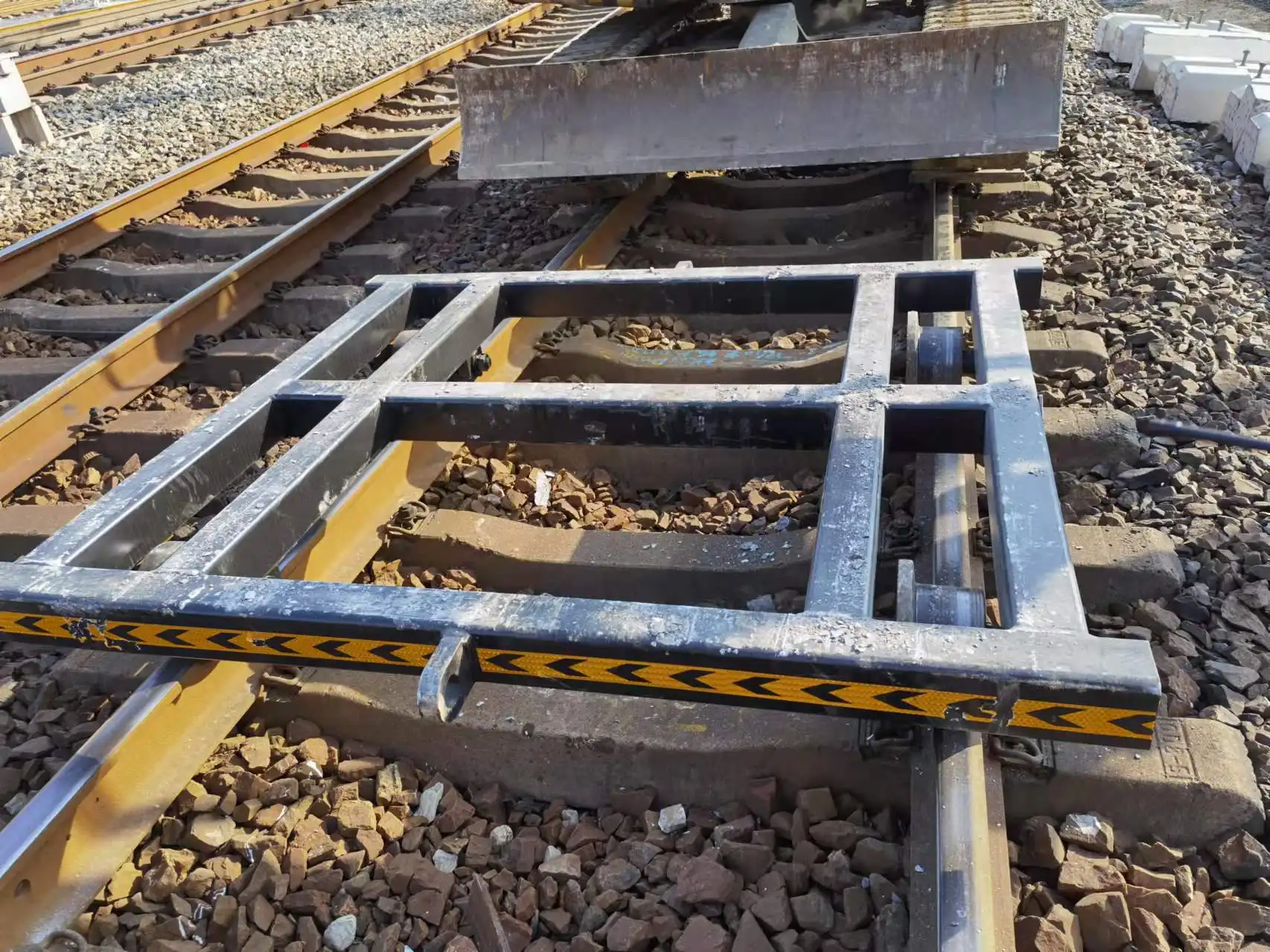

Our flagship product, the rail track trolley, is designed to meet a wide range of industrial needs. It is compatible with host machines ranging from 5 tons to 10 tons, ensuring versatility in various applications. The trolley boasts an impressive size of 1700 mm by 2000 mm, providing ample space for your operations.
One of the standout features of our rail track trolley is its adaptability to different track gauges. It can accommodate track gauges of 1000 mm, 1067 mm, 1435 mm, and 1520 mm, with the added advantage of customization options to perfectly fit your specific requirements. This flexibility makes it an ideal choice for diverse railway systems.
At Tiannuo Machinery, we are committed to providing you with top-notch products and services. We look forward to working with you and helping you achieve your goals.
