Why does the excavator have such long legs?
Have you ever wondered why some excavators tower above others with extraordinarily tall legs? These specialized machines, known as unloading train excavator legs, are purpose-built for specific industrial applications, particularly in railway operations. The distinctive height isn't just for show—it serves critical functional purposes. These elevated excavators are designed to work directly above train cars, allowing operators to efficiently unload materials without damaging the railway infrastructure. With clearances reaching up to 4200mm wide and 4300mm high, these specialized machines can comfortably position themselves over standard train cars, enabling direct access to cargo that needs to be unloaded. The elevated chassis provides operators with an unobstructed 360-degree panoramic view of operations, significantly enhancing safety and precision. This specialized design represents the perfect marriage of engineering innovation and practical necessity, allowing for dramatically improved efficiency—capable of unloading an entire train car in just 5-8 minutes compared to conventional methods that might take significantly longer.
Solving Sight Problem
Enhanced Visibility and Control

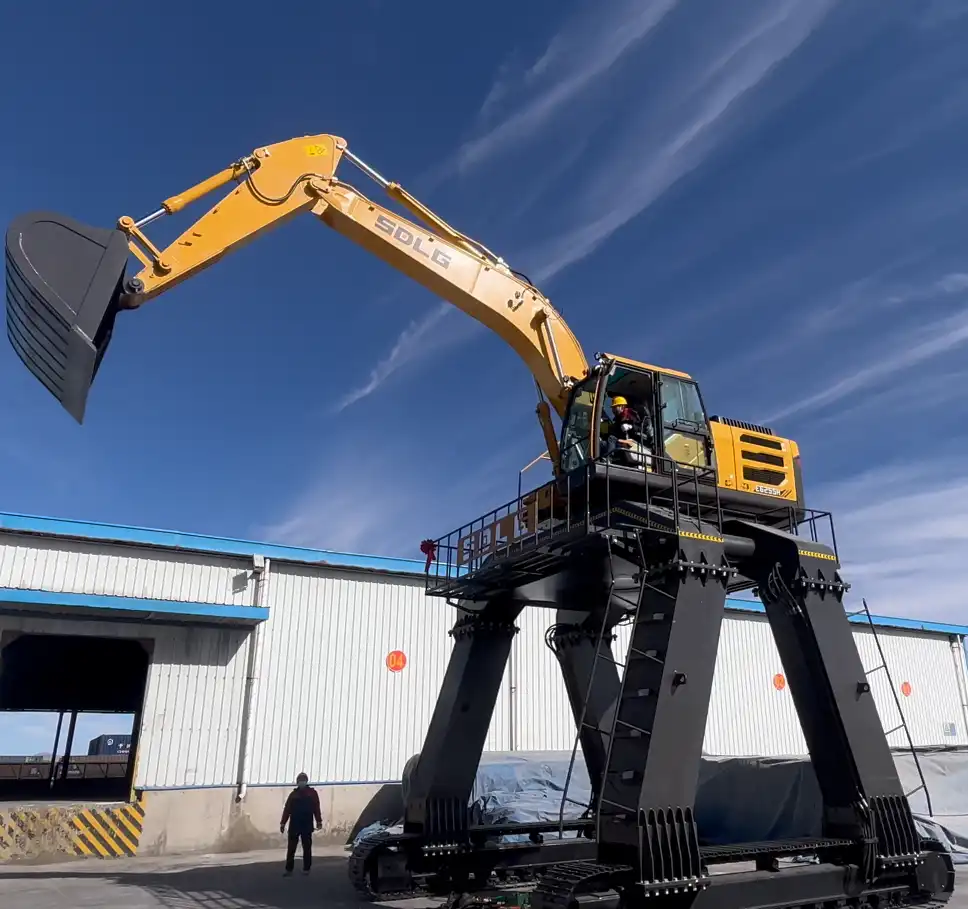

The impressive height of unloading train excavator legs directly addresses one of the most significant challenges in railway material handling—visibility. When working with standard excavators around railway cars, operators often struggle with limited sight lines, making precise operations difficult and potentially dangerous. The elevated position afforded by these specialized legs raises the operator's cabin to an optimal height, providing unobstructed views of the entire work area.
This panoramic visibility is crucial when dealing with bulk materials like coal, ore, or aggregate that need to be precisely extracted from train cars. The operator can clearly see the contents of each car, making it easier to plan the most efficient extraction sequence and avoid damaging the train car structure. The improved visibility also allows operators to monitor the surrounding environment for potential hazards or obstacles that might interfere with the unloading process.
Safety Advantages of Elevated Operations
Safety concerns are paramount in any industrial operation, and railway unloading is no exception. The elevated position provided by long-legged excavators creates a significant safety advantage by physically separating the machine from the train cars below. This separation reduces the risk of accidental contact between the excavator and the railway infrastructure, which could result in costly damage or dangerous situations.
Additionally, the height advantage allows operators to maintain a safe distance from potential hazards like dust clouds, falling debris, or material spillage that commonly occur during unloading operations. The improved visibility mentioned earlier further enhances safety by allowing operators to spot and avoid potential hazards before they become problems.
Operator Comfort and Reduced Fatigue
Working for extended periods in awkward positions can lead to operator fatigue, which ultimately affects productivity and increases the risk of accidents. The elevated cabin position in long-legged excavators is designed with ergonomics in mind, providing operators with a comfortable working environment that reduces physical strain.
Rather than constantly adjusting their position to maintain visibility of their work, operators in these specialized machines can maintain a natural, comfortable posture throughout their shift. This reduction in physical strain translates to less fatigue, higher concentration levels, and ultimately safer and more productive operations. The psychological comfort of having clear sight lines and feeling in control of the operation should not be underestimated as a factor in overall operator performance.
Adapting To Railway Operations
Meeting Specific Height Requirements
The railway industry operates with standardized equipment dimensions that create unique challenges for material handling. Standard train cars typically have significant height and width that must be accommodated by any equipment designed to work directly with them. The unloading train excavator legs are precisely engineered to meet these dimensional requirements, with clearance heights customizable to 4300mm and widths of 4200mm to ensure proper positioning over various train car configurations.
This specific dimensioning is not arbitrary but carefully calculated to provide optimal working conditions while still maintaining the stability and functionality of the excavator. The legs must be tall enough to clear the highest point of the train cars while also being robust enough to support the excavator's weight and withstand the forces generated during operation. This delicate balance between height and structural integrity represents a significant engineering achievement in the design of these specialized machines.
Integration with Railway Infrastructure
Railway operations require specialized equipment that can seamlessly integrate with existing infrastructure without causing disruption or damage. The long-legged design of these excavators allows them to work effectively within the constraints of railway facilities, including overhead lines, signals, and other infrastructure elements that must remain undamaged during unloading operations.

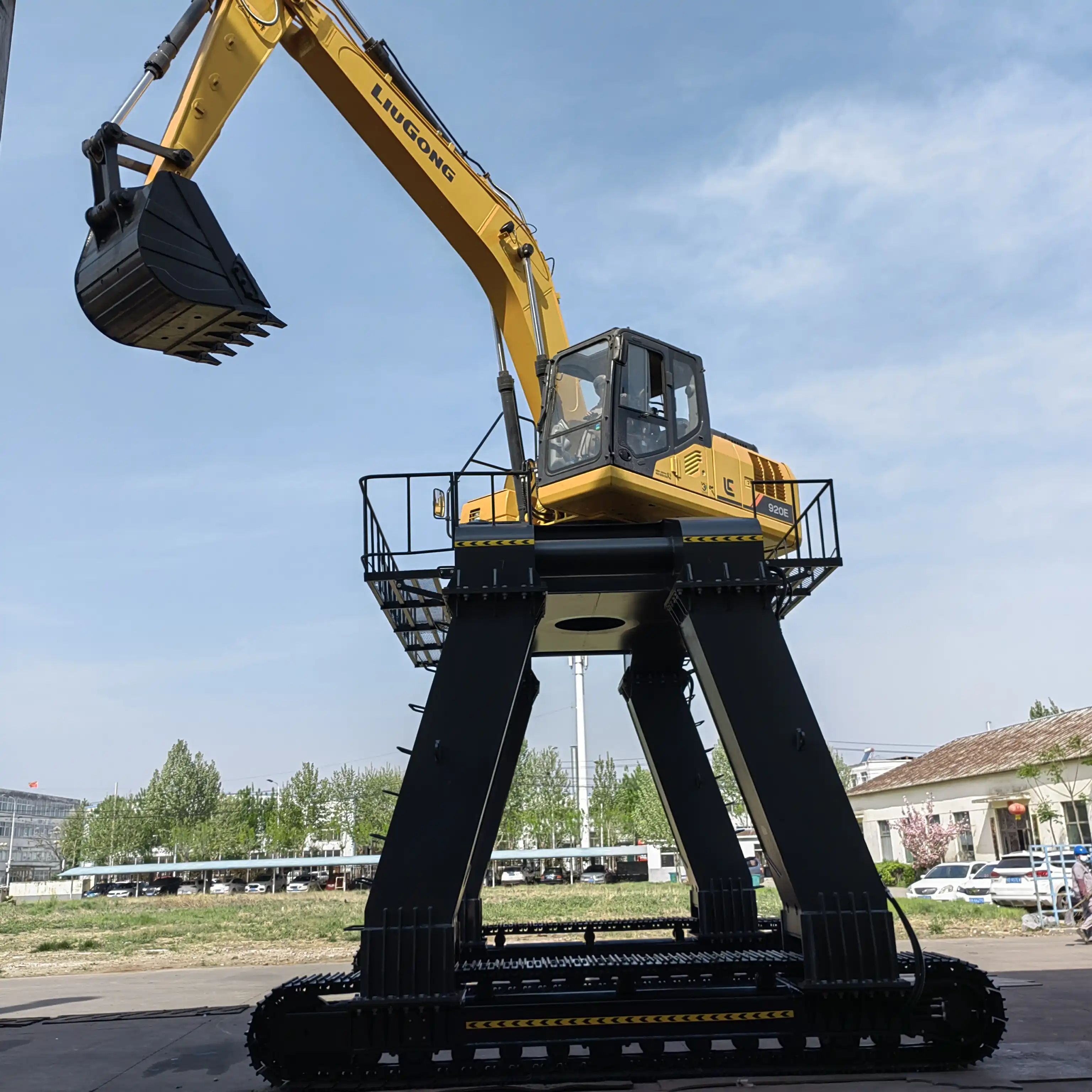

The four-leg design typically employed in these excavators provides stability while minimizing the machine's footprint on the ground. This is particularly important in railway yards where space is often limited and multiple operations may be occurring simultaneously. The ability to position the excavator directly over the train cars without interfering with adjacent tracks or equipment is a crucial advantage that standard excavators simply cannot provide.
Specialized Material Handling Capabilities
Train cars often transport specialized materials that require specific handling techniques. The elevated position of long-legged excavators allows for the integration of specialized attachments designed specifically for railway unloading operations. These might include custom buckets for different material types, grapples for handling bulkier items, or specialized attachments for particular industries.
The height advantage also provides greater freedom of movement when manipulating these attachments, allowing operators to approach the materials from optimal angles that might not be possible with standard equipment. This specialized capability makes unloading train excavator legs not just taller versions of standard excavators but purpose-built machines designed specifically for the unique challenges of railway material handling.
Enhancing Work Efficiency
Rapid Unloading Operations
The efficiency gains provided by unloading train excavator legs are substantial. Standard unloading methods often require multiple machines or elaborate conveyor systems that can be time-consuming to set up and operate. The direct-access approach enabled by these elevated excavators dramatically streamlines the process, allowing a single well-positioned machine to unload an entire train car in just 5-8 minutes.
This rapid turnaround time has significant implications for the entire supply chain. When train cars can be unloaded more quickly, they can return to service faster, increasing the overall capacity of the railway system. For facilities that handle multiple train cars daily, these efficiency improvements can translate to substantial operational and economic benefits, including reduced demurrage costs and improved throughput capacity.
Reducing Material Handling Steps
Traditional unloading methods often involve multiple handling steps, with materials being transferred between different equipment types before reaching their final destination. Each transfer represents a potential point of material loss, quality degradation, or process inefficiency. The direct approach enabled by long-legged excavators eliminates many of these intermediate steps, creating a more streamlined operation.
By reaching directly into train cars and extracting materials in a single movement, these specialized excavators reduce the overall complexity of the unloading process. This not only saves time but also reduces wear and tear on equipment, lowers energy consumption, and minimizes material loss during transfers. The cumulative effect of these improvements can significantly enhance the overall efficiency and profitability of railway material handling operations.
Adaptability to Various Materials and Conditions
Railway transport involves a wide variety of materials with different handling requirements. The elevated position and specialized attachments available for long-legged excavators make them remarkably adaptable to different material types and environmental conditions. Whether dealing with coal, aggregates, timber, or other bulk materials, these machines can be configured with the appropriate attachments to optimize handling efficiency.
This adaptability extends to weather conditions as well. The elevated operator position provides better visibility in dusty conditions or during night operations with appropriate lighting. The robust construction of these machines allows them to continue operating effectively in adverse weather conditions that might hamper other unloading methods, ensuring continuity of operations regardless of external factors.
FAQ
①What is the typical height of unloading train excavator legs?
The standard clearance height is typically around 4300mm, though this can be customized based on specific operational requirements and train car dimensions.
②How stable are these elevated excavators during operation?
Despite their height, these machines are engineered with a wide base and counterweights to ensure stability. The four-leg design distributes weight evenly, allowing safe operation even when fully extended.
③Can these long-legged excavators be used for other applications?
While primarily designed for railway operations, their height advantage makes them suitable for various applications where elevated operation is beneficial, including port operations and certain construction scenarios.
④What maintenance considerations are unique to long-legged excavators?
The leg structure requires regular inspection for structural integrity, and the hydraulic systems that support the elevated components need particular attention during maintenance routines.
About Tiannuo
The distinctive long legs on specialized railway excavators represent a perfect example of form following function in industrial equipment design. These machines aren't tall just to be impressive—though they certainly are that—but to solve specific operational challenges in railway material handling. The height advantage provides critical benefits in visibility, safety, railway compatibility, and operational efficiency that simply wouldn't be possible with standard excavator designs.
For industries relying on railway transport for bulk materials, these specialized machines offer a compelling solution that can dramatically improve operational efficiency while reducing costs and enhancing safety. As railway operations continue to evolve, we can expect to see further refinements in the design and capabilities of these remarkable machines, potentially incorporating advanced technologies like automation and remote operation to further enhance their already impressive capabilities.
For more information about unloading train excavator legs and other specialized excavator modifications for railway operations, contact the Tiannuo team of experts at rich@stnd-machinery.com.
References
Journal of Railway Engineering and Operations, "Specialized Equipment for Railway Material Handling," 2023 Edition.
International Society of Heavy Equipment Operators, "Safety Standards for Elevated Excavator Operations," Technical Guideline 47-B.
Institute of Industrial Logistics, "Efficiency Improvements in Railway Cargo Handling: Case Studies and Best Practices," Volume 12.
Railway Technology Review, "Innovations in Train Car Unloading Equipment," Issue 87, 2024.
Industrial Equipment Engineering Digest, "Structural Design Considerations for Elevated Excavator Applications," Technical Review Series.
About Author: Arm
Arm is a leading expert in the field of specialized construction and railway maintenance equipment, working at Tiannuo Company.
