How to Make a Rail Cart?
Building a rail track trolley involves several important steps, from designing the frame to installing wheels and adding safety features. These specialized vehicles are essential for railway maintenance, construction projects, and transportation of materials along tracks. Professional manufacturers like Tiannuo Machinery produce high-quality rail trolleys that can handle loads up to 30 tons and fit various track gauges (1000mm, 1067mm, 1435mm, 1520mm, and custom sizes). While industrial trolleys require specialized manufacturing, understanding the basic construction principles can help you appreciate the engineering behind these robust machines. The following guide outlines the fundamental steps for creating a rail cart, though industrial applications typically demand professional-grade equipment meeting strict safety and durability standards.
Build the Frame
Selecting the Right Materials
The foundation of any reliable rail cart begins with choosing appropriate materials. According to the specifications from Tiannuo Machinery, industrial rail track trolleys typically use Q355 steel for the frame. This high-strength structural steel offers excellent load-bearing capacity and resistance to deformation. For smaller-scale projects, you might consider alternative materials, but structural integrity should always remain a priority. The material selection directly impacts the trolley's durability, especially considering that it must withstand harsh railway environments and potentially carry heavy loads.
Designing for Load Capacity
When designing your rail cart frame, careful consideration of the intended load capacity is essential. Professional rail track trolleys from manufacturers like Tiannuo can support up to 30 tons of weight. The frame design must account for weight distribution to maintain stability during operation. This includes calculating the appropriate dimensions—commercial models typically measure around 1700 x 2000 mm—and reinforcing high-stress areas. For optimal performance, the frame should incorporate cross-bracing and support structures strategically positioned to prevent flexing under load.
Assembly Techniques
Assembly of the frame requires precision and attention to detail. Welding remains the preferred method for joining components in industrial applications, providing superior strength and rigidity. All welds should undergo thorough inspection to identify any potential weaknesses. Additionally, the frame assembly should include mounting points for axles, braking systems, and any additional features planned for the trolley. Creating a template before beginning construction can help ensure dimensional accuracy throughout the assembly process, resulting in a square and level platform that will operate smoothly on the rails.
Install the Wheels and Axles
Wheel Material Selection
The wheels represent one of the most critical components of any rail track trolley. According to Tiannuo's specifications, professional-grade trolleys utilize 40Cr alloy steel for their wheels. This material offers outstanding wear resistance and load-bearing capabilities essential for railway applications. The wheel profile must match the rail type for proper contact and rolling resistance. Each wheel requires precision machining to maintain the correct profile and ensure smooth operation along the tracks. The hardness of the wheel material significantly influences the trolley's operational lifespan and maintenance requirements.
Axle Installation Process
Proper axle installation directly impacts the trolley's performance and safety. Industrial rail carts typically feature four wheels, mounted on robust axles that distribute the load evenly across the frame. The axle assembly must maintain precise alignment to prevent binding or excessive wear during operation. This includes ensuring correct wheel spacing that matches the track gauge—which can range from 1000mm to 1520mm depending on the railway system. Bearings play a crucial role in this assembly, requiring proper lubrication and protection from contaminants to ensure long-term reliability.
Ensuring Proper Track Gauge
Maintaining the correct track gauge represents a fundamental aspect of rail cart construction. Professional rail track trolleys are built to specific gauge measurements to match the railways they'll operate on. Common gauges include 1000mm, 1067mm, 1435mm (standard gauge), and 1520mm, though customization is possible for specialized applications. The wheel spacing must precisely match this gauge to prevent derailment and ensure smooth operation. During assembly, verification tools can help confirm the exact distance between wheels, with adjustments made as necessary before final installation and securing of all components.
Add Additional Features
Safety Mechanisms
Incorporating robust safety features distinguishes professional-grade rail track trolleys from basic models. Essential safety elements include reliable braking systems that can secure the trolley when stationary or control its speed during operation. Load securing mechanisms prevent cargo shifting during transport, while visual indicators and reflective materials enhance visibility in low-light conditions. For trolleys operated by personnel, handrails and non-slip surfaces provide additional protection. These safety components require regular inspection and maintenance to ensure continued functionality, especially in demanding railway environments where equipment failure could lead to significant hazards.
Control Systems
The control system determines how the trolley will be operated and maneuvered along the tracks. Options range from manual push/pull systems to powered solutions utilizing electric or hydraulic mechanisms. For industrial applications, control systems often incorporate variable speed capabilities, directional control, and emergency stop functions. The design should prioritize ergonomics and intuitive operation, particularly for trolleys frequently used by maintenance crews. Weatherproofing these components ensures reliability in various environmental conditions, from extreme temperatures to heavy precipitation, maintaining operational capability regardless of external factors.
Customization Options
Professional rail track trolleys often benefit from customization to meet specific operational requirements. These adaptations might include specialized cargo platforms, material handling attachments, or powered lifting mechanisms. Additional features such as lighting systems enhance visibility during night operations, while communication equipment allows coordination with other railway operations. Weather protection can shield sensitive equipment or personnel from environmental elements. When planning customizations, consider both the immediate functional requirements and potential future needs, creating a versatile solution that delivers maximum value throughout its operational lifespan while maintaining the trolley's fundamental reliability and safety.
FAQ
1. What materials are best for building a rail cart?
Professional rail track trolleys typically use Q355 steel for the frame and 40Cr alloy steel for wheels due to their exceptional durability and load-bearing capabilities. These materials withstand the demanding conditions of railway environments while maintaining structural integrity under heavy loads.
2 . What safety features should be included in a rail trolley?
Essential safety features include reliable braking systems, load securing mechanisms, visual indicators, and stability enhancements. Industrial models often incorporate additional safety elements like emergency stops, locking mechanisms, and operator protection systems.
3 . Can rail trolleys be customized for different track gauges?
Yes, rail trolleys can be customized to fit various track gauges including 1000mm, 1067mm, 1435mm, 1520mm, and custom specifications. Manufacturers like Tiannuo offer customization options to ensure compatibility with specific railway systems worldwide.
4. What is the typical load capacity of a professional rail track trolley?
Professional rail trolleys from manufacturers like Tiannuo can support loads up to 30 tons, depending on the model and configuration. The robust construction and high-quality materials enable these high capacity ratings while maintaining operational safety.
5. How many wheels does a standard rail trolley have?
Standard industrial rail trolleys typically feature four wheels, though configurations may vary based on specific applications and load requirements. This design provides optimal stability and weight distribution across the trolley frame.
Grasping the intricacies involved in constructing rail trolleys clearly reveals the significant benefits of collaborating with seasoned manufacturers that have a deep-seated expertise in railway maintenance equipment. The process of creating a rail trolley, from meticulously designing the frame to precisely engineering the wheels, demands a high level of technical proficiency and industry knowledge.
For individuals or enterprises intrigued by professional-grade rail track trolleys or those with unique railway applications in need of tailor-made solutions, engaging with industry experts is a prudent step. These experts possess in-depth insights into every aspect of rail trolley design and functionality.

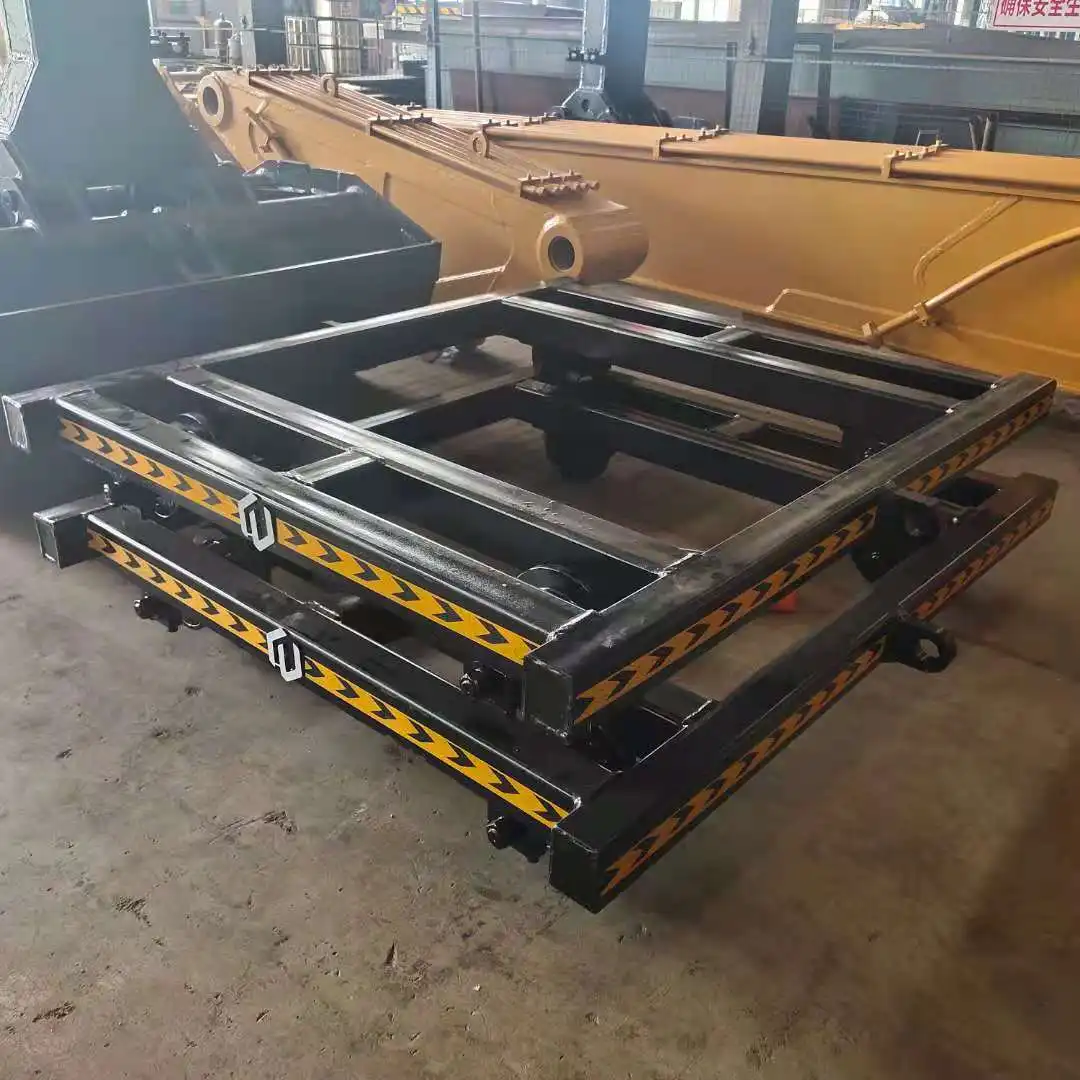

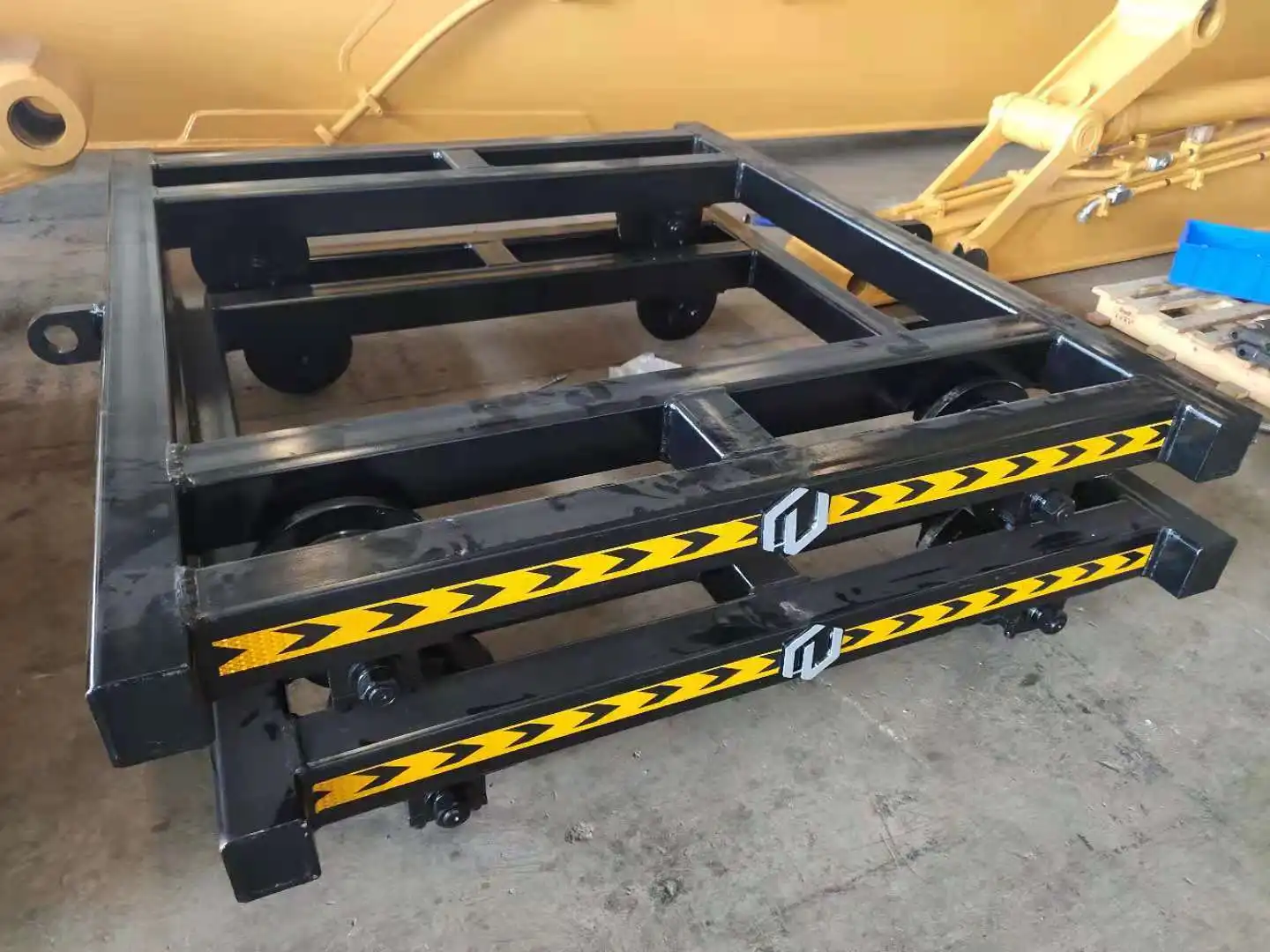

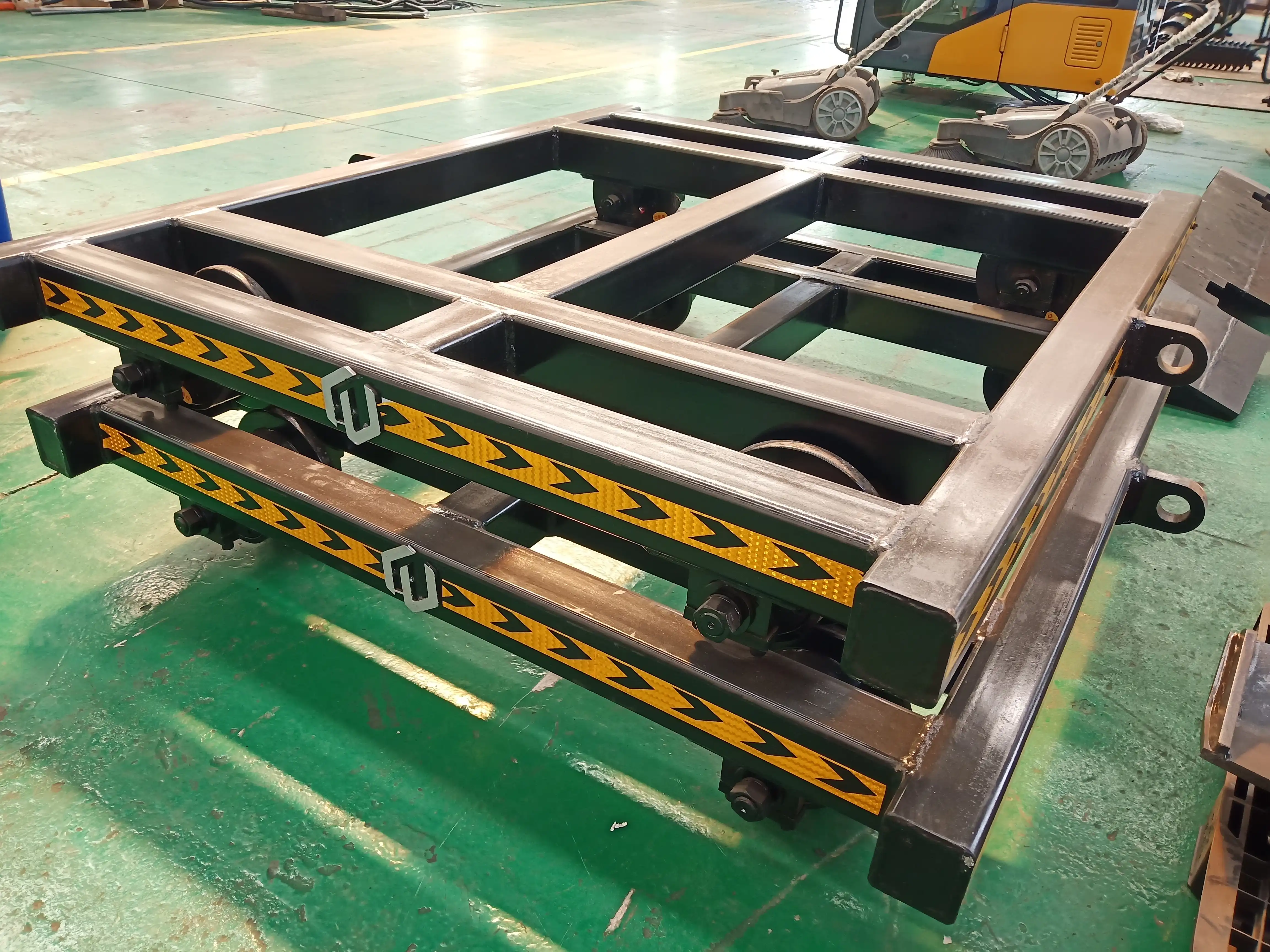

Tiannuo's rail track trolleys in question are engineered with remarkable versatility. They are designed to be compatible with host machines having a load - bearing capacity spanning from 5 tons to 10 tons. Measuring 1700 mm in one dimension and 2000 mm in the other, their size is optimized for practical usage in various railway scenarios. When it comes to track gauge compatibility, they offer great flexibility. They can operate on tracks with gauges of 1000 mm, 1067 mm, 1435 mm, and 1520 mm, and even better, the track gauge can be customized according to specific requirements.
These trolleys are built to handle substantial loads, with a capacity of less than 30 tons. Equipped with 4 wheels, they ensure stable movement along the tracks. The frame is constructed from Q355 material, which is renowned for its robust strength and durability, making it suitable for enduring the rigors of railway operations. The wheels, crafted from 40Cr material, are highly resistant to wear and tear, guaranteeing a long-lasting and smooth-running performance. By leveraging the knowledge of experts and exploring the capabilities of these well-designed rail track trolleys, railway operators can enhance the efficiency and safety of their maintenance and transportation tasks.
You can contact Tiannuo's team of specialists at arm@stnd-machinery.com, rich@stnd-machinery.com, or tn@stnd-machinery.com for personalized assistance with your railway equipment needs.
