How to choose the right rail track trolley according to track width?

Rail track trolleys are essential components in various industrial applications, providing efficient transportation of heavy loads along railway tracks. Selecting the appropriate trolley for your specific needs is crucial for optimal performance and safety. One of the key factors to consider when choosing a rail trolley is the track width. In this comprehensive guide, we'll explore the importance of track width in trolley selection, how to measure it accurately, and the differences between standard and narrow gauge tracks.

Why Does Track Width Matter for Rail Track Trolleys?

Track width, also known as track gauge, is a critical factor in determining the compatibility and effectiveness of rail track trolleys. The track width refers to the distance between the inner edges of the rails on a railway track. This measurement is crucial because it directly affects the fit and stability of the trolley on the tracks.

Choosing a rail track trolley that matches the track width of your railway system ensures several benefits:

1. Stability: A trolley designed for the correct track width will have optimal balance and stability during operation, reducing the risk of derailment or tipping.
2. Efficiency: Proper fit between the trolley wheels and the track allows for smooth movement and reduces friction, leading to improved energy efficiency and reduced wear on both the trolley and the tracks.
3. Safety: A correctly matched trolley-to-track width minimizes the risk of accidents and ensures safe operation, protecting both personnel and cargo.
4. Performance: Trolleys designed for specific track widths can maximize their load-bearing capacity and operate at optimal speeds, enhancing overall productivity.

Understanding the importance of track width in trolley selection is the first step towards making an informed decision. However, to choose the right trolley, you need to know how to measure track width accurately.

Measuring Track Width for Optimal Trolley Selection

Accurate measurement of track width is crucial for selecting the appropriate rail track trolley. Here's a step-by-step guide to measuring track width correctly:

1. Prepare the tools: You'll need a tape measure or a specialized track gauge tool. Ensure the measuring device is in good condition and provides accurate readings.
2. Choose the measurement location: Select a straight section of the track for measurement. Avoid curves or areas with switches or other track features that might affect the measurement.
3. Clean the track: Remove any debris or obstructions from the rails to ensure an accurate measurement.
4. Position the measuring tool: Place the tape measure or gauge tool perpendicular to the track, ensuring it touches the inner edges of both rails.
5. Take the measurement: Measure the distance between the inner edges of the rails. This is your track width or gauge.
6. Repeat and verify: Take multiple measurements at different points along the track to ensure consistency and accuracy.

It's important to note that track width can sometimes vary slightly due to wear, temperature changes, or other factors. Therefore, it's advisable to take an average of multiple measurements for the most accurate result.

Once you have the correct track width measurement, you can proceed to select a rail track trolley that matches your specific requirements. Many manufacturers, including Tiannuo Machinery, offer trolleys designed for various track widths, ensuring compatibility with different railway systems.

Standard Gauge vs. Narrow Gauge: Choosing the Right Trolley

When selecting a rail track trolley, it's essential to understand the differences between standard gauge and narrow gauge tracks, as this will significantly influence your choice.

Standard Gauge Tracks:

Standard gauge, also known as Stephenson gauge, is the most common track width used worldwide. It measures 1,435 mm (4 ft 8 1⁄2 in) between the inner edges of the rails. Standard gauge tracks are used in many countries for mainline railways, metro systems, and industrial applications.

Advantages of standard gauge tracks include:

• Widespread compatibility with various rolling stock and equipment
• Higher speed capabilities
• Greater stability for larger and heavier loads

Narrow Gauge Tracks:

Narrow gauge tracks have a width less than the standard gauge. Common narrow gauge widths include 1,000 mm (3 ft 3 3⁄8 in), 1,067 mm (3 ft 6 in), and 914 mm (3 ft). Narrow gauge tracks are often used in mountainous regions, mining operations, and some industrial applications.

Advantages of narrow gauge tracks include:

• Lower construction and maintenance costs
• Ability to navigate tighter curves
• Suitability for lighter loads and smaller-scale operations

When choosing a rail track trolley, consider the following factors:

1. Existing infrastructure: If you're working with an existing railway system, you'll need to select a trolley that matches the current track gauge.
2. Load requirements: Standard gauge tracks generally allow for higher load capacities, which may be necessary for heavy industrial applications.
3. Operational environment: Consider the terrain and space constraints of your operation. Narrow gauge systems might be more suitable for tight spaces or challenging terrains.
4. Future expansion: If you plan to expand or integrate your system with other railway networks in the future, consider the compatibility of your chosen gauge.

It's worth noting that some manufacturers, like Tiannuo Machinery, offer rail track trolleys that can be adapted to different track gauges. This flexibility can be particularly valuable for operations that work with multiple gauge systems or anticipate future changes in their infrastructure.

Rail Track Trolley For Sale

Welcome to Tiannuo Machinery, your reliable partner in the field of heavy machinery. Our dedicated team is always ready to assist you. You can reach out to our esteemed manager at arm@stnd-machinery.com for any inquiries or business discussions. Additionally, our professional team members are available at rich@stnd-machinery.com and tn@stnd-machinery.com to provide you with prompt and comprehensive support.

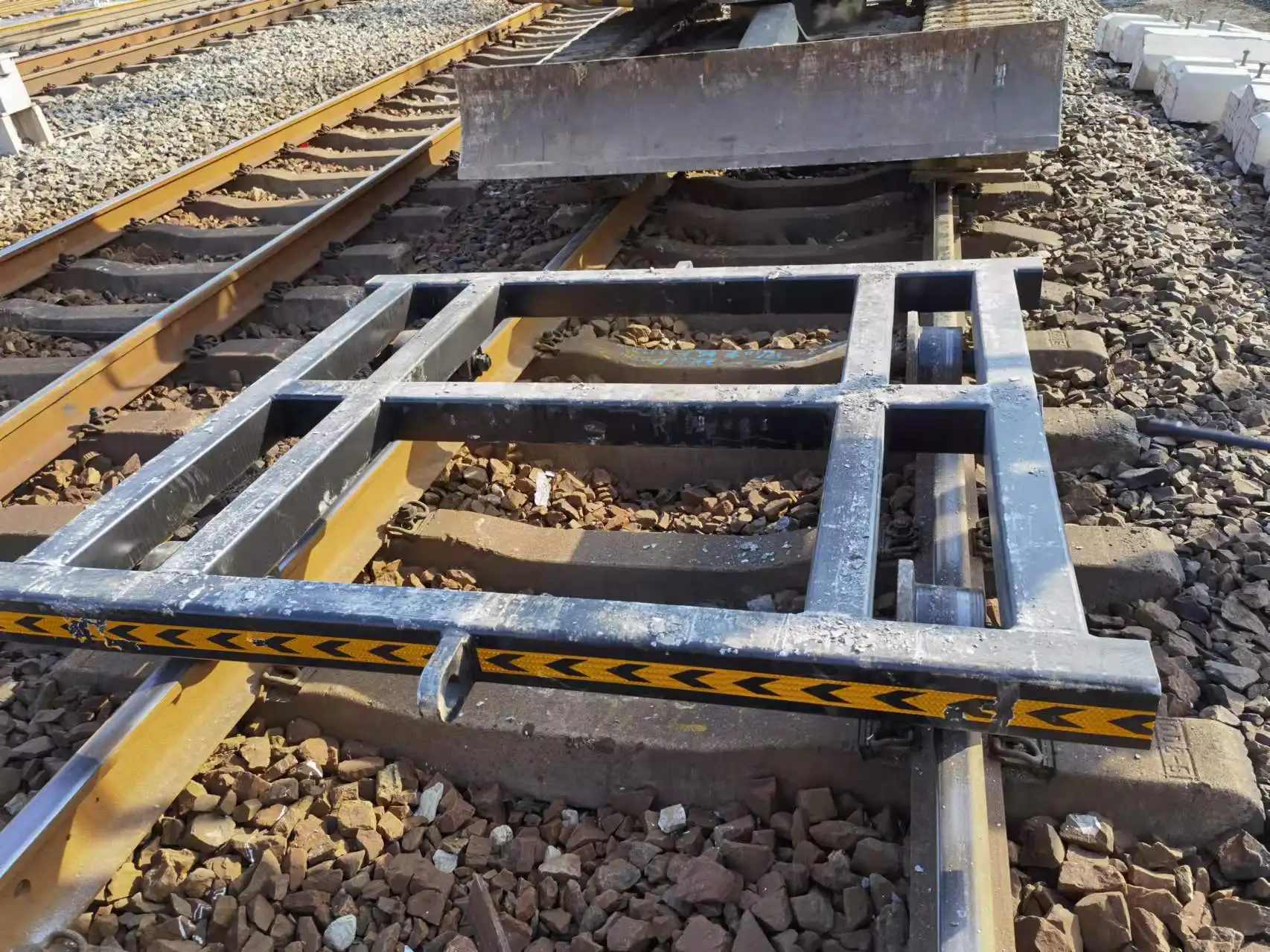

Our flagship product, the rail track trolley, is designed to meet a wide range of industrial needs. It is compatible with host machines ranging from 5 tons to 10 tons, ensuring versatility in various applications. The trolley boasts an impressive size of 1700 mm by 2000 mm, providing ample space for your operations.

One of the standout features of our rail track trolley is its adaptability to different track gauges. It can accommodate track gauges of 1000 mm, 1067 mm, 1435 mm, and 1520 mm, with the added advantage of customization options to perfectly fit your specific requirements. This flexibility makes it an ideal choice for diverse railway systems.

The trolley has a robust load capacity of less than 30 tons, allowing it to handle heavy loads with ease. It is equipped with four high-quality wheels, each meticulously crafted to ensure smooth and reliable movement along the tracks. The frame is constructed from durable Q355 material, while the wheels are made of premium 40Cr material, guaranteeing longevity and performance in even the most demanding conditions.

At Tiannuo Machinery, we are committed to providing you with top-notch products and services. We look forward to working with you and helping you achieve your goals.
