How to calculate excavator bucket volume?

Calculating the volume of an excavator bucket is a crucial skill for professionals in the construction, mining, and excavation industries. The accurate measurement of bucket capacity directly impacts project planning, machine selection, and operational efficiency. To calculate the volume of a bucket, you'll need to measure the bucket's internal dimensions - length, width, and height - and then multiply these measurements together. The basic formula is: Volume = Length × Width × Height. This calculation yields the struck capacity, which represents the volume when the bucket is filled level with its edges. For practical applications, you'll also need to consider factors like material density, heaped capacity, and fill factors to determine the actual working capacity of a bucket for the excavator in real-world conditions.

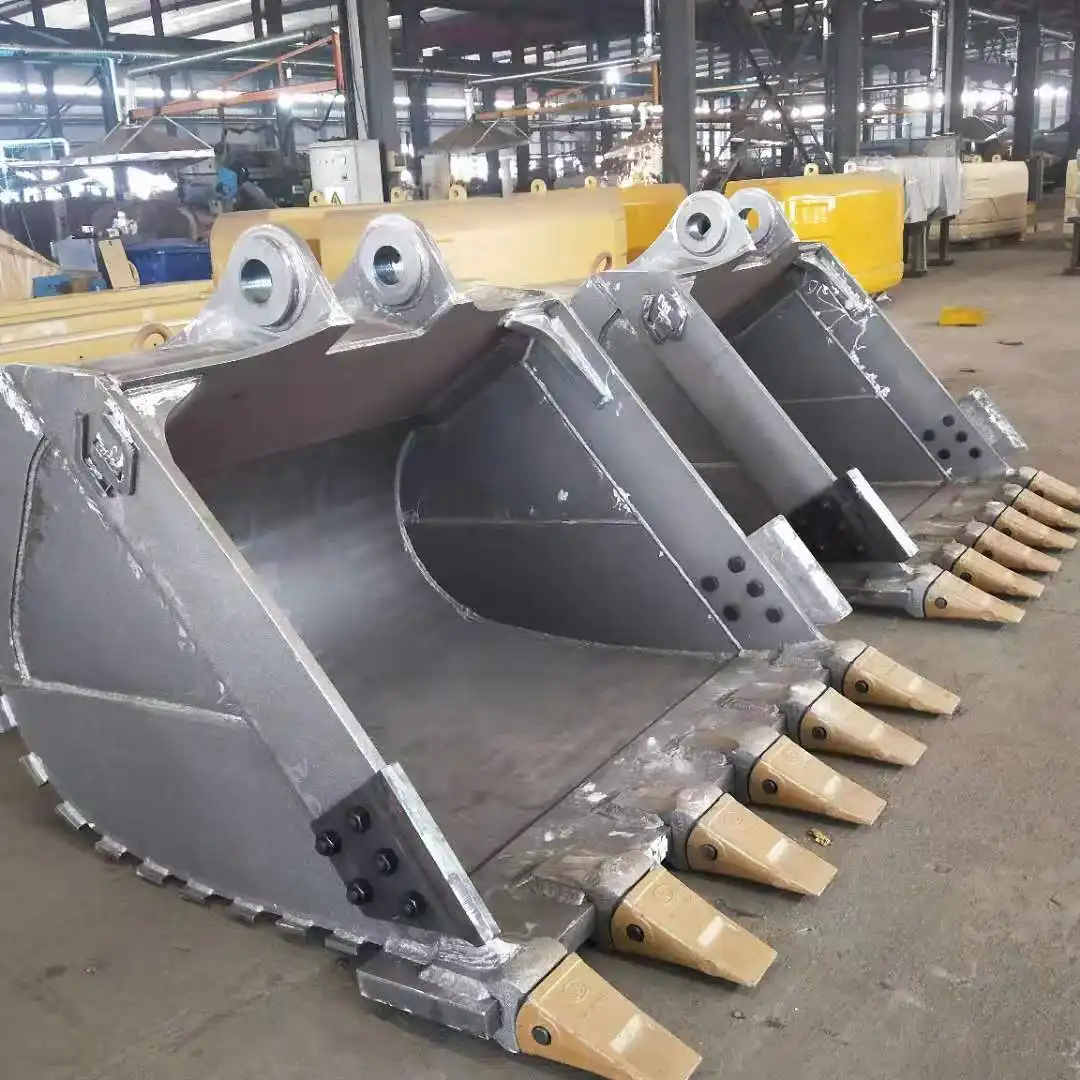

Gather Measurements

Accurately measuring your excavator bucket's dimensions is the foundation for calculating its volume. The precision of these measurements directly affects the accuracy of your capacity calculations and subsequent project planning. Here's a detailed breakdown of how to gather the necessary measurements:

Length Measurement

The length of an excavator bucket refers to the internal distance from the front cutting edge to the back wall of the bucket. To measure this dimension accurately:

• Position the bucket on level ground
• Ensure the bucket is clean and free from material buildup
• Measure from the inside of the cutting edge to the inside of the back wall
• Take multiple measurements across different points for accuracy

The length is typically measured in feet or meters, depending on your preferred unit system. Remember that even small measurement errors can lead to significant volume calculation discrepancies.

Width Measurement

The width dimension represents the internal distance between the side walls of the bucket. For proper width measurement:

Measure the inside width at several points

• Pay special attention to buckets with tapered designs
• For buckets with side cutters, measure between the inside edges
• Calculate the average width if there are variations across the bucket

Width variations are common in specialized buckets designed for specific applications. Always measure the actual working width rather than relying on manufacturer specifications.

Height Measurement

The height of an excavator bucket is measured from the interior floor to the top edge. For accurate height measurement:

• Measure from the inside floor to the top rim of the bucket
• Take measurements at multiple points along the bucket length
• For buckets with uneven heights, calculate the average height
• Ensure the bucket is positioned naturally when measuring

The height dimension is particularly important when calculating heaped capacity as it affects how material can pile above the rim of the bucket.

Apply the Formula

Once you have gathered all three dimensions, apply this formula to calculate the struck capacity:

Volume (cubic yards/meters) = Length × Width × Height

For consistency in calculations:

• Ensure all measurements use the same unit (feet, inches, meters)
• Convert the final result to cubic yards or cubic meters as needed
• Rounding to two decimal places for practical applications

For example, if your measurements in feet are:

Length: 4.5 feet

Width: 3.2 feet

Height: 2.1 feet

The calculation would be: 4.5 × 3.2 × 2.1 = 30.24 cubic feet To convert to cubic yards: 30.24 ÷ 27 = 1.12 cubic yards

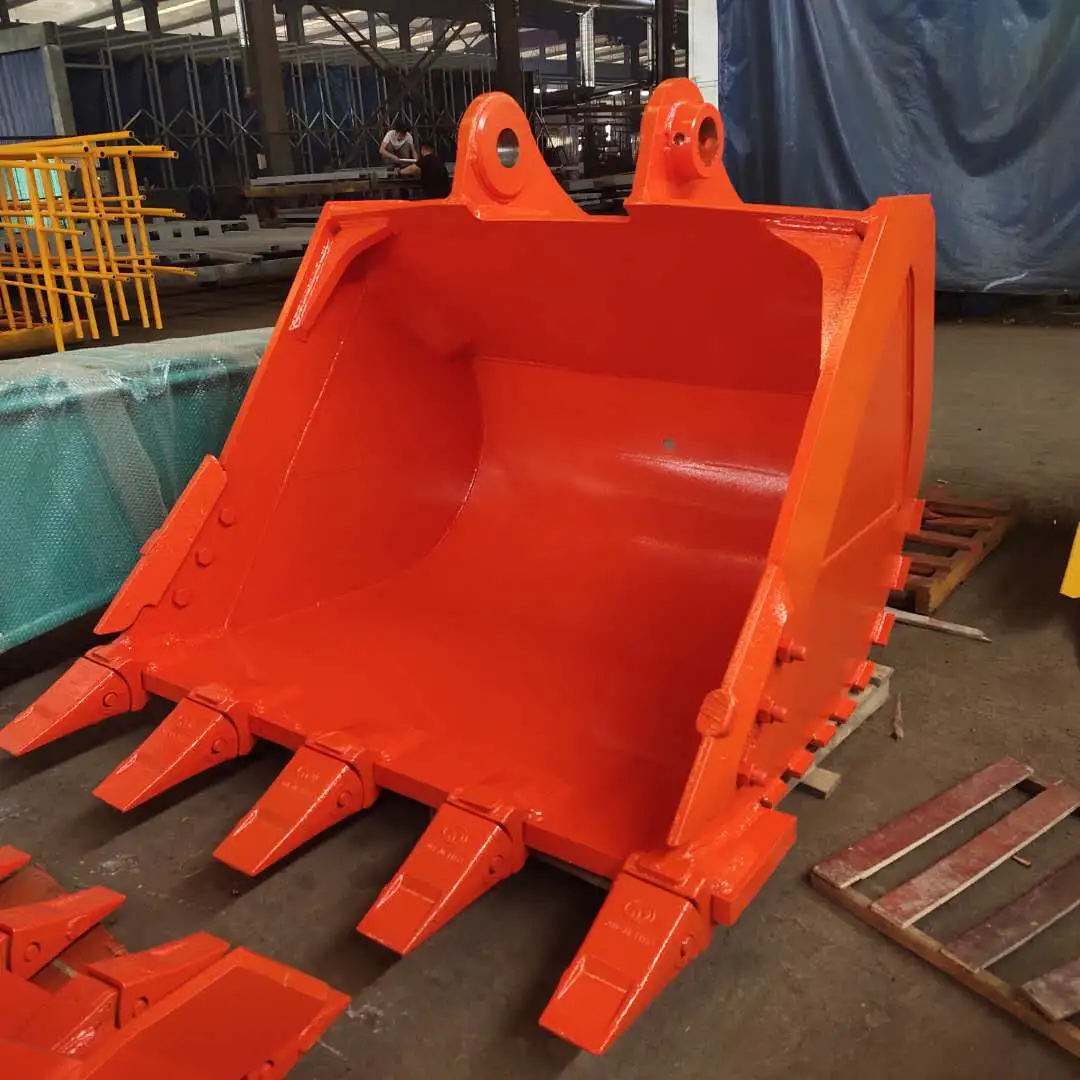

Example

Let's walk through a complete example of calculating an excavator bucket's volume to demonstrate the practical application of the measurement principles and formulas discussed earlier.

Step-by-Step Calculation

Consider a standard excavator bucket with the following internal measurements:

Length: 1.8 meters

Width: 1.2 meters

Height: 0.9 meters

Following our volume formula: Volume = 1.8 m × 1.2 m × 0.9 m = 1.944 cubic meters

This represents the struck capacity of the bucket, which is the volume when filled exactly level with the top edges.

Converting Between Units

Often, you'll need to convert between different measurement systems. Here's how to convert our example:

To convert from cubic meters to cubic yards: 1.944 cubic meters × 1.308 = 2.543 cubic yards

To convert from cubic meters to liters: 1.944 cubic meters × 1000 = 1,944 liters

Practical Application

In a real-world scenario, let's consider how this bucket would perform when excavating different materials:

For dense clay (density approximately 1,600 kg/m³):

Maximum theoretical load = 1.944 m³ × 1,600 kg/m³ = 3,110 kg

With a typical fill factor of 0.85 for clay:

Practical load per cycle = 3,110 kg × 0.85 = 2,644 kg

For loose gravel (density approximately 1,400 kg/m³):

Maximum theoretical load = 1.944 m³ × 1,400 kg/m³ = 2,722 kg

With a typical fill factor of 0.95 for loose gravel:

Practical load per cycle = 2,722 kg × 0.95 = 2,586 kg

This example demonstrates how the same bucket capacity yields different practical loading capabilities depending on material properties.

Verification Methods

To verify your calculations, you can:

Compare with manufacturer specifications if available

Perform a water test by filling the bucket with water and measuring the volume

Use the weight method by weighing a full bucket of material with known density

These verification methods can help ensure your calculations accurately reflect the true volume capacity of your excavator bucket.

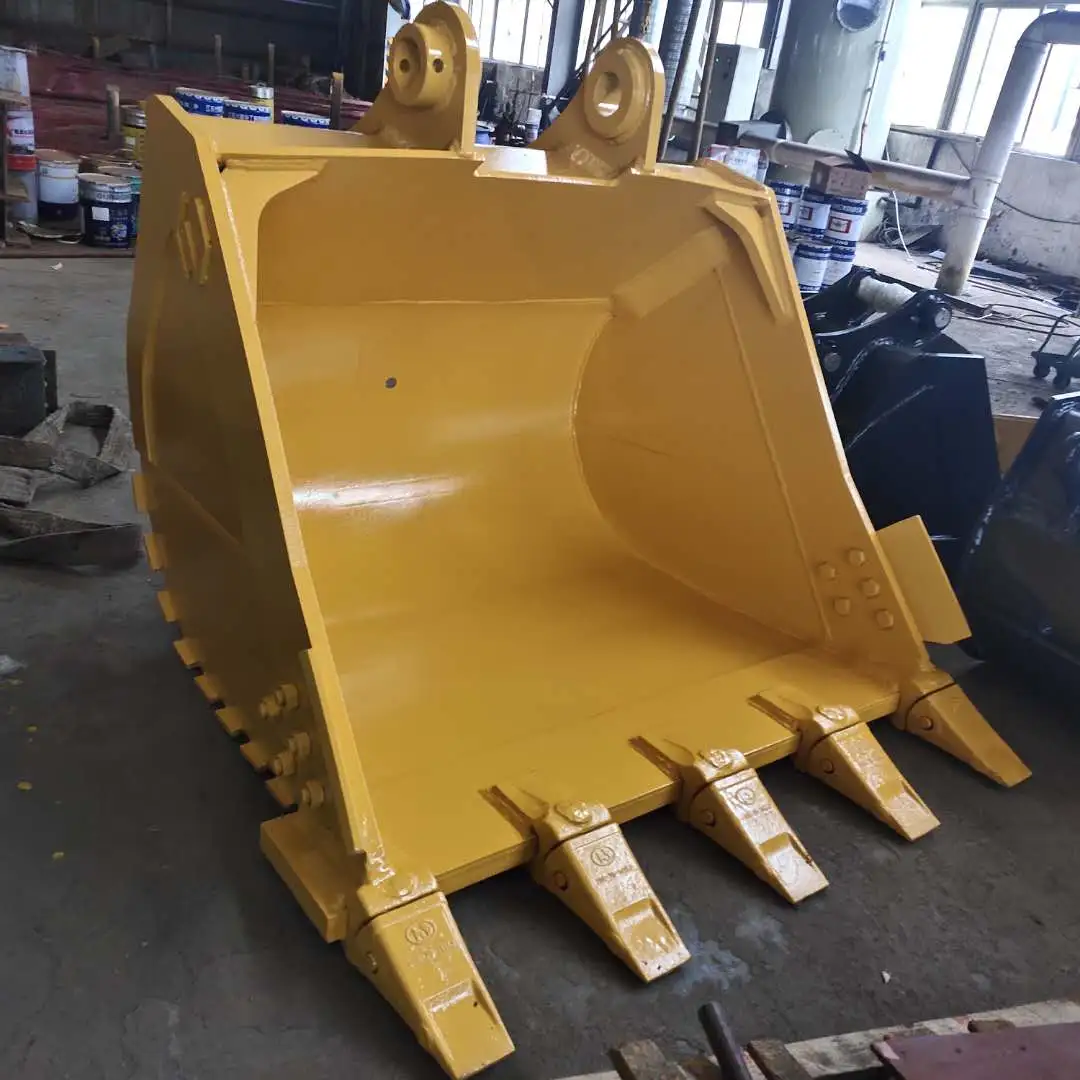

Important Considerations

When calculating and applying excavator bucket volume measurements, several critical factors must be considered to ensure accurate operational planning and machine efficiency.

Heaped vs. Struck Capacity

The difference between heaped and struck capacity is essential for practical excavation planning:

• Struck Capacity: This represents the volume of material contained within the bucket when filled precisely level with its edges. It's calculated using the basic length × width × height formula we've discussed. Struck capacity is the conservative baseline measurement used for precise engineering calculations.
• Heaped Capacity: This represents the total potential volume including material that piles above the bucket rim in a natural angle of repose. Heaped capacity is typically 10-25% greater than struck capacity, depending on material characteristics. To calculate heaped capacity:

Heaped Capacity = Struck Capacity × (1 + Heap Factor)

Common heap factors range from 0.1 to 0.25 based on material properties and bucket design.

For most construction applications, heaped capacity provides a more realistic estimate of actual productivity, while struck capacity offers a guaranteed minimum volume.

Material Density

Material density dramatically affects how much weight an excavator can move per bucket:

To calculate the weight of material per bucket: Weight = Volume × Material Density

Understanding material density helps prevent overloading and optimize equipment selection. When working with denser materials, you may need to reduce the fill level to stay within the excavator's safe operating capacity.

Fill Factor

The fill factor accounts for the efficiency of bucket filling in different materials:

• Loose, free-flowing materials (like dry sand) typically achieve fill factors of 0.95-1.0
• Mixed materials (like loamy soil) typically achieve fill factors of 0.85-0.95
• Cohesive materials (like wet clay) typically achieve fill factors of 0.75-0.85
• Rocky or uneven materials typically achieve fill factors of 0.60-0.75
• To calculate actual working volume: Working Volume = Bucket Volume × Fill Factor

The fill factor significantly impacts productivity estimates and cycle time calculations. Experienced operators consistently achieve higher fill factors through proper bucket positioning and excavation techniques.

When planning excavation projects, always account for material properties, environmental conditions, and operator skill level when applying these considerations to your bucket volume calculations.

FAQ

1. What is the standard formula for calculating excavator bucket volume?

The standard formula for calculating excavator bucket volume is Length × Width × Height of the interior bucket dimensions. This calculation provides the struck capacity, which represents the volume when the bucket is filled level with its edges. For more accurate practical measurements, this basic volume should be adjusted using appropriate fill factors and material density considerations.

2. How do I convert cubic meters to cubic yards for excavator bucket capacity?

To convert cubic meters to cubic yards, multiply the cubic meter value by 1.308. For example, a bucket with a capacity of 2 cubic meters would be equivalent to 2.616 cubic yards (2 × 1.308 = 2.616). This conversion is essential when working with specifications or requirements stated in different measurement systems.

3 . How does material density affect excavator bucket selection?

Material density directly impacts the weight that an excavator must lift with each bucket load. Denser materials like wet clay or rock require smaller bucket volumes compared to lighter materials like dry soil to avoid exceeding the excavator's lifting capacity. Always match your bucket selection to both the excavator's specifications and the density of materials you'll be moving to optimize productivity while maintaining safe operation.

4 . What's the difference between WGP and ESCO bucket volume ratings?

WGP (Water Grade Plane) and ESCO ratings represent different industry standards for measuring bucket capacity. WGP measures struck capacity as the volume up to an imaginary plane across the bucket's top edges, while ESCO ratings typically include a specific heaped calculation method. These different standards can result in capacity variations of 10-15% for identical buckets, so it's important to know which standard your specifications reference.

5. How often should excavator bucket volume be recalculated?

Excavator bucket volume should be recalculated whenever there are significant changes to the bucket, such as repairs, modifications, or after extensive wear to the cutting edge or side walls. Regular recalculation, approximately every 500-1000 operating hours, ensures accurate production estimates and proper machine utilization, especially in high-demand applications where precise volume calculations impact project planning and costing.

Contact Tiannuo

Understanding how to calculate bucket volume is essential for optimizing equipment selection, project planning, and operational efficiency in construction and excavation projects. By accurately measuring bucket dimensions and applying the appropriate factors for material density, heap capacity, and fill factors, operators and project managers can ensure maximum productivity while maintaining safe working loads.

For high-quality excavator buckets designed for optimal performance across various applications, Tiannuo Construction Machinery Co., Ltd. offers a comprehensive range of products suitable for all major excavator brands. With over a decade of manufacturing expertise since our establishment in 2014, we provide customized solutions that enhance your machine's capabilities while meeting the specific demands of your projects.

For more information about our excavator attachments, bucket options, extended arms, and specialized equipment, please contact our team at arm@stnd-machinery.com, rich@stnd-machinery.com, or tn@stnd-machinery.com. Our engineering team is ready to help you determine the ideal bucket specifications for your operational requirements.

References

Construction Equipment Guide. (2023). Excavator Bucket Capacity Measurement Standards for Industry Professionals.

Johnson, R. (2024). Applied Mathematics in Heavy Equipment Operations. Engineering Press.

International Organization for Standardization. (2023). ISO 7451:2023 - Earth-moving machinery — Volumetric ratings for hoe-type and grab-type buckets of hydraulic excavators and backhoe loaders.

Smith, T. & Wilson, P. (2024). Excavator Performance Optimization: Equipment Selection and Application Guide.

Association of Equipment Manufacturers. (2023). Volumetric Rating of Excavating Equipment.
