How does the three-section design of an excavator high altitude demolition arm contribute to its stability?
In the world of construction and demolition, excavator high altitude demolition arms have revolutionized the way we approach the challenging task of dismantling tall structures. These specialized machines offer a safer, more efficient alternative to traditional demolition methods. At the heart of their effectiveness lies the innovative three-section design of the demolition arm, a feature that significantly enhances the excavator's stability and operational capabilities. This article delves into the intricacies of this design, exploring how it contributes to the overall performance and safety of these powerful machines.
Structural Configuration

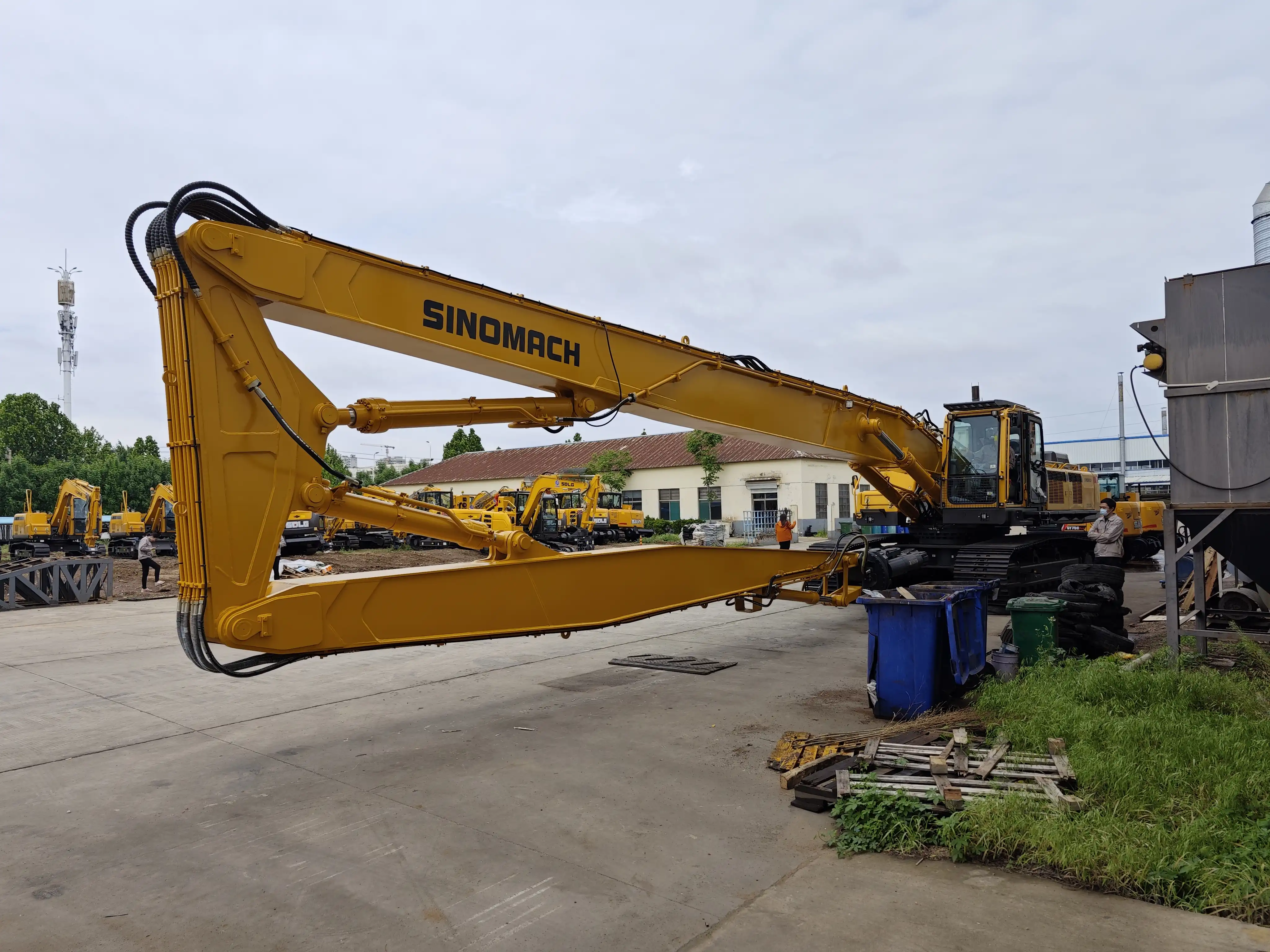

The three-section design of an excavator high altitude demolition arm is a marvel of engineering that provides unparalleled flexibility and reach. This configuration typically consists of a lower boom, middle arm, and upper arm, each connected by robust hydraulic joints. This segmented approach allows for a greater range of motion and improved maneuverability compared to traditional single or double-section arms.
The lower boom, anchored to the excavator's body, serves as the foundation of the arm. It's designed to bear significant loads while maintaining stability. The middle arm acts as a bridge between the lower and upper sections, facilitating smoother transitions and more precise positioning. The upper arm, often equipped with various attachments such as hydraulic shears or breaker hammers, is responsible for the actual demolition work.
This tri-sectional configuration allows operators to reach higher and farther than ever before, with some models capable of working at heights of up to 65 meters or more. The ability to fold the arm into compact positions also enhances transportation and storage efficiency, making these machines more versatile and easier to deploy across different job sites.
Moreover, the articulation points between each section are engineered to distribute stress evenly across the entire structure. This design feature is crucial in preventing localized wear and tear, thereby extending the operational lifespan of the equipment. The use of high-strength materials in these joints further enhances durability, ensuring that the arm can withstand the rigors of demanding demolition tasks day after day.
Hydraulic System Synergy
The stability and precision of an excavator high altitude demolition arm are not solely dependent on its structural design. The hydraulic system plays an equally critical role in ensuring smooth, controlled operations. The three-section design integrates seamlessly with advanced hydraulic systems, creating a synergy that enhances overall performance and stability.
Each section of the arm is powered by dedicated hydraulic cylinders, working in concert to provide precise control over the arm's movements. This distributed hydraulic power allows for more nuanced adjustments, essential when working at great heights or in confined spaces. The system's ability to maintain consistent pressure across all sections of the arm contributes significantly to its stability, even when fully extended.
Advanced hydraulic control systems often incorporate load-sensing technology, which automatically adjusts the hydraulic pressure based on the weight and position of the load. This dynamic response system ensures that the arm remains stable regardless of the attachment being used or the specific demolition task being performed. It also helps to prevent sudden movements or jerks that could compromise the excavator's balance.
Furthermore, many modern excavator high altitude demolition arms feature hydraulic quick-coupler systems. These allow for rapid attachment changes without the need for manual intervention, enhancing both safety and efficiency on the job site. The ability to quickly switch between different tools - such as crusher buckets, hydraulic breakers, or grapples - without compromising the arm's stability is a testament to the sophistication of the hydraulic system integration.
Center of Gravity Adjustment
One of the most critical factors in maintaining the stability of an excavator high altitude demolition arm is the management of its center of gravity. The three-section design offers significant advantages in this regard, allowing for more precise control over the machine's balance during operation.
As the arm extends and retracts, the excavator's center of gravity shifts dramatically. In a traditional single or double-section arm, these shifts can be abrupt and challenging to manage. However, the three-section design allows for more gradual and controlled changes in the center of gravity. This is achieved through the independent movement of each section, which can be coordinated to maintain optimal balance throughout the demolition process.
Many advanced excavator models equipped with high altitude demolition arms also incorporate counterweight systems that automatically adjust based on the arm's position. These systems work in tandem with the three-section design to ensure that the machine remains stable even when operating at maximum reach. Some models even feature extendable undercarriages that can widen the excavator's footprint, further enhancing stability during high-reach operations.
The ability to finely tune the center of gravity through the articulation of the three-section arm also allows operators to work more confidently in challenging environments. Whether demolishing structures near sensitive areas or working on uneven terrain, the enhanced stability provided by this design significantly reduces the risk of tipping or unexpected movements.
Moreover, the three-section design facilitates better weight distribution when the arm is in its transport configuration. By folding the arm into a compact position, the excavator's center of gravity is lowered and centralized, making transportation safer and more efficient. This feature is particularly valuable when moving between job sites, as it reduces the logistical challenges associated with transporting large demolition equipment.
High Altitude Demolition Arm For Sale
The three-section design of an excavator high altitude demolition arm represents a significant advancement in construction and demolition technology. By enhancing structural integrity, optimizing hydraulic system performance, and enabling precise center of gravity adjustments, this innovative configuration dramatically improves the stability and effectiveness of these powerful machines. As urban environments continue to evolve and the demand for safe, efficient demolition methods grows, the role of these specialized excavators in shaping our built environment will only become more crucial.
The high altitude demolition arm from Tiannuo Machinery offers a state-of-the-art solution for the demolition of high-rise buildings. Our three-section demolition arm is designed for installation on excavators and can be equipped with various efficient attachments, including hydraulic shears, breaker hammers, and buckets. The modification process for our demolition arm excavators encompasses three key areas: hydraulic oil circuit modification, demolition arm modification, and attachment modification. This comprehensive approach ensures optimal performance and safety in even the most challenging demolition projects.
If you're in the market for a high altitude demolition arm manufacturer, we invite you to reach out to our experienced team. Please feel free to contact our manager at arm@stnd-machinery.com, or our team members at rich@stnd-machinery.com and tn@stnd-machinery.com. Our experts are ready to discuss your specific needs and help you find the perfect solution for your demolition projects.
