How does a railway sleeper changer work?
A railway sleeper changer is a specialized machine designed to efficiently replace old or damaged railway sleepers (also called ties) with minimal disruption to railway operations. This sophisticated equipment combines hydraulic systems, precision mechanics, and advanced automation to perform what was once a labor-intensive manual process. Modern sleeper changers typically operate in three main phases: positioning and removal of old sleepers, installation of new sleepers, and final adjustment and securing. Using a hydraulic system with integrated plunger motors, these machines can extract old sleepers without disturbing the surrounding track structure, position new sleepers with millimeter precision, and secure them firmly in place. With features like 360-degree rotation capability, specialized sleeper clamps with openings up to 650mm, and travel speeds of 10-15 km/h on railway tracks, these machines have revolutionized railway maintenance by reducing track downtime, improving worker safety, and ensuring consistent installation quality across railway networks.
Positioning and Removing the Old Sleepers
Machine Positioning on the Track
The first crucial step in the railway sleeper replacement process involves properly positioning the railway sleeper changer on the track section requiring maintenance. Modern sleeper changers like those manufactured by Tiannuo are designed with dual operational modes to facilitate this positioning process. The two-wheel drive system equipped with track wheels allows the machine to travel at speeds of up to 15 km/h to reach the work site efficiently. Once at the designated location, operators can switch to the positioning mode, which engages track limit wheels that prevent the machine from derailing during operation.
The sleeper changer must be aligned precisely over the specific sleepers requiring replacement. This alignment is critical as even small deviations could result in damage to the rail infrastructure or inefficient operation. Most advanced sleeper changers feature user-friendly interfaces that allow operators to make fine adjustments to the machine's position with high precision. The hydraulic drive system, powered by integrated plunger motors, enables smooth and controlled movement along the track, ensuring that the machine can be positioned exactly where needed.
Inspection and Assessment
Before removal begins, operators conduct a thorough inspection of the sleeper to be replaced and the surrounding track structure. This assessment helps identify any potential complications that might arise during the removal process, such as severely degraded sleepers, damaged fastening systems, or unusual track conditions that might require special attention.
The inspection also determines the appropriate removal technique to be used. Modern sleeper changers are versatile enough to handle various types of sleepers, including wooden, concrete, and composite sleepers, each requiring slightly different approaches. The machine's computer system may also record data about the condition of the removed sleepers, which can be valuable for maintenance planning and track degradation analysis.
Extraction Process

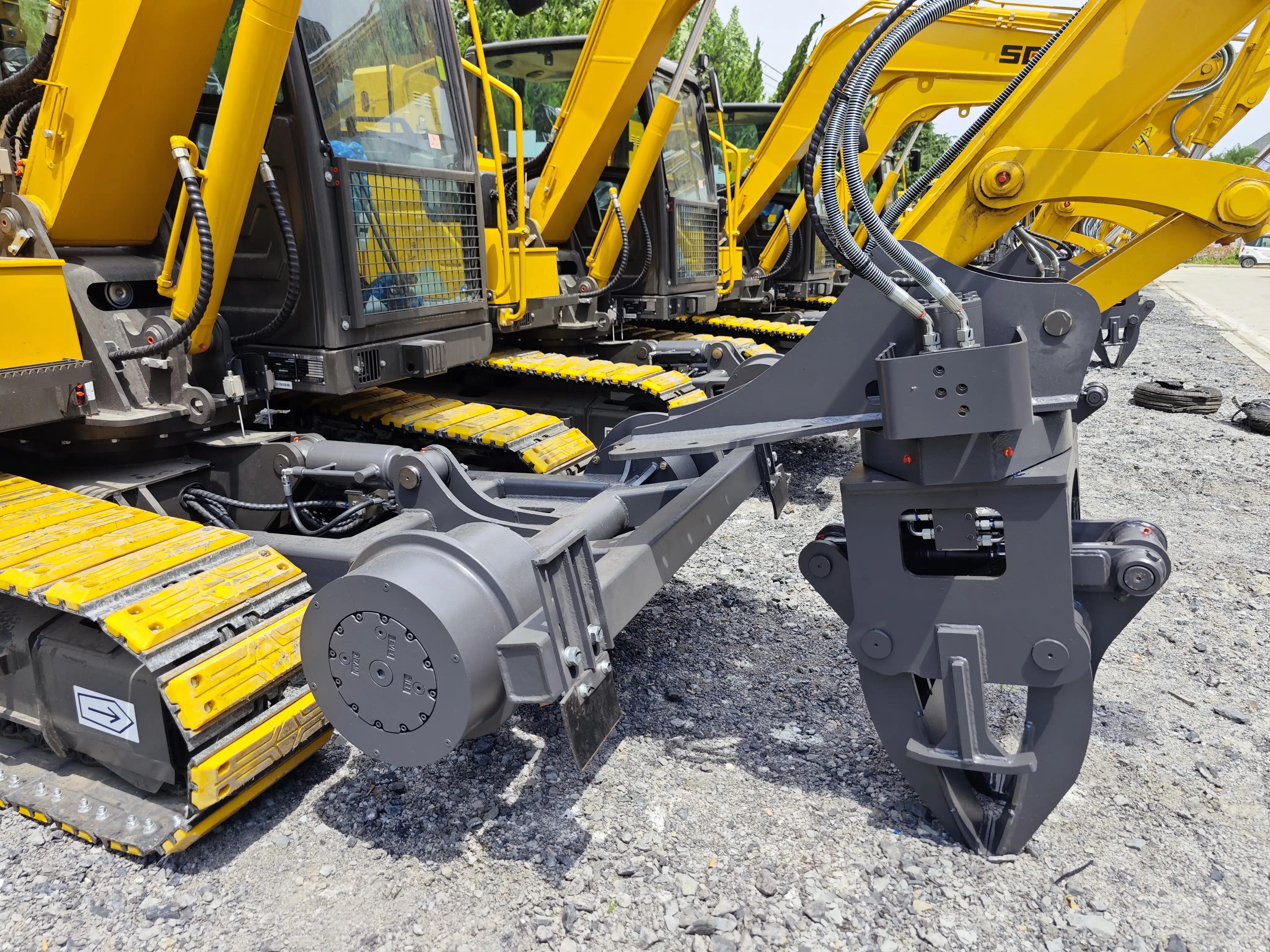

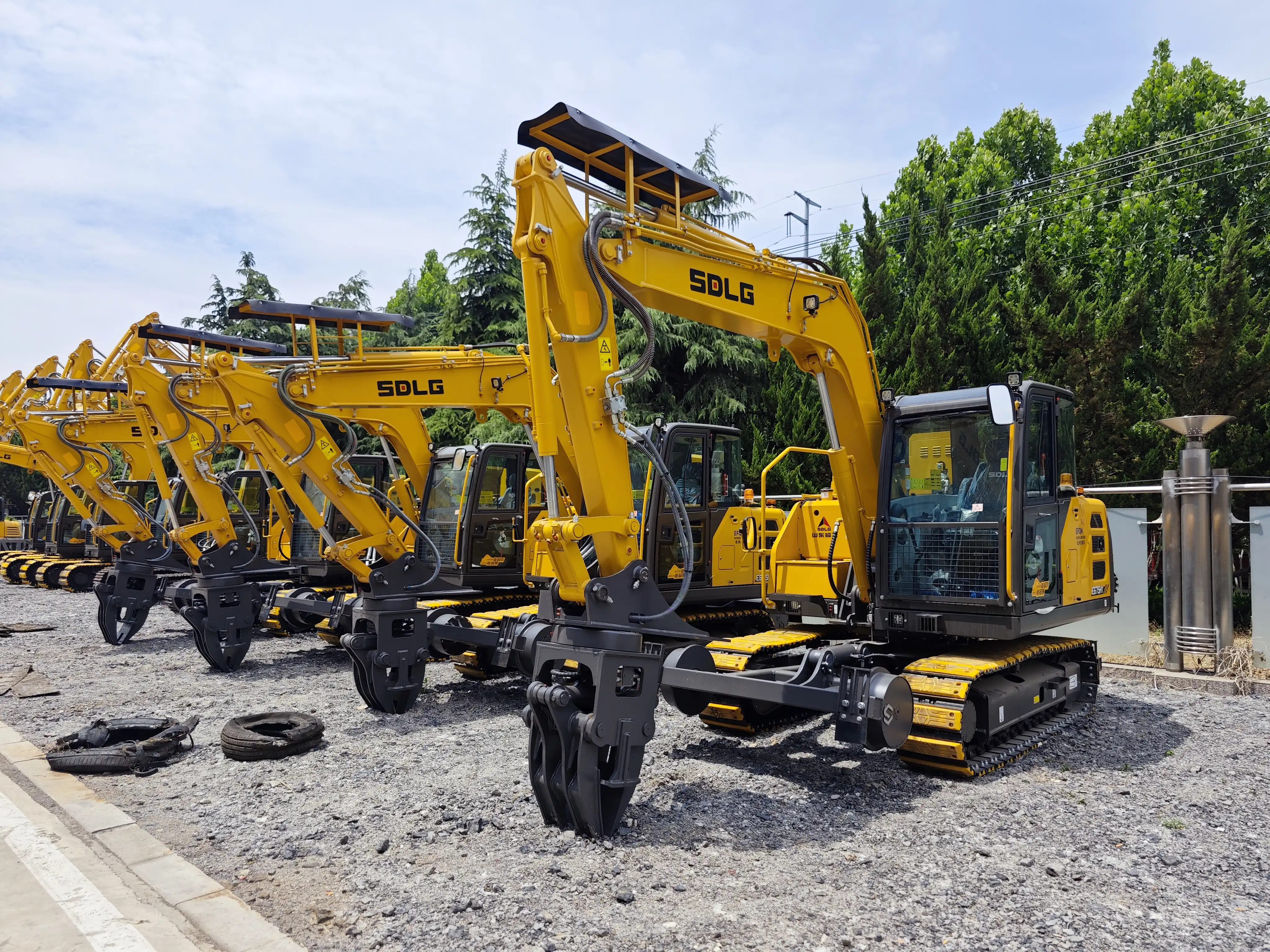

Once positioned correctly and after completing the assessment, the actual extraction process begins. The sleeper changer deploys its specialized sleeper clamp with an opening capacity of up to 650mm, which grasps the target sleeper firmly but without causing damage to the surrounding infrastructure. The clamp's design allows it to adapt to different sleeper types and conditions, providing a secure grip even on degraded sleepers.
The extraction utilizes a sophisticated hydraulic system that applies controlled force to lift and remove the old sleeper. The load-sensitive hydraulic system, typically powered by high-performance pumps like the Hengli HP3V80, ensures that appropriate force is applied consistently throughout the extraction. This precision prevents damage to the ballast bed and maintains the stability of adjacent sleepers and rails.
The machine's 360-degree rotation capability plays a crucial role during extraction, allowing the operator to maneuver the removed sleeper away from the track without disturbing the surrounding structure. This rotational flexibility is particularly valuable in confined spaces or when working on tracks with nearby obstacles. Once extracted, the old sleeper is typically moved to a designated area for disposal or recycling, making way for the installation of a new sleeper.
Installing the New Sleepers
Preparation of New Sleepers
Before installation can begin, the new sleepers must be properly prepared and positioned for efficient placement. This preparation phase is critical to ensure smooth operation and high-quality results. New sleepers are typically delivered to the worksite on specialized transport vehicles or flatbed cars and are arranged for easy access by the railway sleeper changer.
The preparation process includes inspecting each new sleeper for manufacturing defects, damage during transport, or other issues that might compromise its performance once installed. Modern sleeper changers often work in conjunction with sleeper handling equipment that can organize and feed the new sleepers into position, making the entire operation more efficient.
For concrete sleepers, which are now the most commonly used type, the preparation may also include checking pre-installed rail fastening systems and ensuring that they are ready to receive the rails. Some advanced sleeper replacement systems can even prepare the sleepers with the exact fastening configuration required for the specific track section being maintained.
Positioning and Placing New Sleepers
Once the new sleeper is ready for installation, the sleeper changer's hydraulic arm, with its powerful grip mechanism, securely grasps the sleeper. The machine's large plate width of 2800mm provides ample support during this operation, ensuring stability throughout the placement process. The sleeper is then carefully positioned over the prepared area where the old sleeper was removed.
Precision is paramount during this phase. The railway sleeper changer uses its hydraulic positioning system to align the new sleeper perfectly with the track structure. The machine's controls allow for minute adjustments in all directions, ensuring that the sleeper is placed at the exact required position and angle. This precision is crucial for maintaining proper track gauge and alignment, which directly affects train safety and ride quality.
The placement process must account for the specific requirements of different track designs and sleeper types. For instance, concrete sleepers require different handling techniques compared to wooden ones due to their weight and rigidity. The sleeper changer's versatile design allows it to adapt to these varying requirements, making it suitable for diverse railway maintenance operations.
Initial Securing and Rail Placement
After positioning the new sleeper, the machine assists in the initial securing phase. This typically involves ensuring that the sleeper sits properly in the ballast bed and is at the correct height relative to adjacent sleepers. Some advanced railway sleeper changers feature integrated tamping mechanisms that can compact the ballast around the newly installed sleeper, providing immediate stability.
For tracks where the rails were temporarily displaced during sleeper removal, the next step involves repositioning the rails onto the new sleeper. The sleeper changer's precision arm can assist in this process, ensuring that the rails are placed correctly onto the fastening systems of the new sleeper. The machine's 360-degree rotation capability is again valuable here, allowing for precise manipulation of the rails even in confined spaces.
The initial securing is designed to provide enough stability for the sleeper to remain in position during the subsequent fine-tuning and permanent fixing phases. This staged approach ensures that each component of the track structure is properly positioned before final adjustments are made, contributing to the overall quality and longevity of the railway infrastructure.
Fine-Tuning and Fixing
Track Geometry Adjustment
After the new sleeper has been placed, precise adjustments are necessary to ensure perfect track geometry. This is where the advanced capabilities of modern railway sleeper changers truly shine. The machine's sophisticated hydraulic system allows for fine-tuning of the sleeper's position with millimeter precision. This adjustment phase is crucial for maintaining proper track gauge, cant, and alignment – all critical factors in ensuring safe and comfortable train operation.
Track geometry adjustments are typically guided by laser measuring systems or other precision instruments that provide real-time feedback on the position of the sleeper relative to the desired track parameters. The sleeper changer's control system may integrate with these measurement tools, allowing operators to make informed adjustments quickly.
The adjustment process must account for the dynamic nature of railway tracks, considering factors such as thermal expansion, expected settling of the ballast, and the specific requirements of the track section based on its intended use (high-speed, freight, etc.). Experienced operators use their knowledge of these factors to make subtle adjustments that might not be immediately necessary but will ensure optimal track performance over time.
Ballast Tamping and Consolidation
Once the sleeper is correctly positioned, the surrounding ballast must be properly tamped and consolidated to provide stable support. While some railway sleeper changers have integrated tamping mechanisms, this process is often performed by specialized tamping machines that work in sequence with the sleeper replacement operation.
The tamping process involves vibrating and compacting the ballast stones around and under the newly installed sleeper. This creates a solid foundation that distributes the loads from passing trains evenly and prevents premature settlement or movement of the sleeper. Proper ballast consolidation is essential for maintaining track geometry over time and reducing the frequency of maintenance interventions.
Modern tamping systems use sensors to measure the resistance of the ballast during compaction, ensuring that consistent support is achieved across the entire length of the sleeper. This data-driven approach helps eliminate weak spots that could lead to uneven settlement and subsequent track geometry issues.
Final Fastening and Quality Control
The final step in the sleeper replacement process involves permanently securing the rails to the new sleeper using the appropriate fastening system. This can include clips, bolts, or other specialized fasteners depending on the track design. The railway sleeper changer may assist in this process by providing precise positioning support while maintenance workers secure the fastenings.
After installation is complete, comprehensive quality control checks are performed to verify that the replaced sleeper meets all required specifications. These checks typically include measurements of track gauge, sleeper spacing, fastening torque, and overall track geometry. Advanced sleeper changers may incorporate automated inspection systems that can record this data for documentation and future reference.
The quality control process also includes a visual inspection for any signs of damage or improper installation that might have occurred during the replacement process. This attention to detail ensures that each replaced sleeper contributes to a safe, efficient, and long-lasting railway infrastructure.
Once all quality checks are satisfactorily completed, the track section can be returned to service, often with little or no speed restrictions, thanks to the precision and quality achieved by modern sleeper replacement technology.
FAQ
①How many sleepers can a railway sleeper changer replace in a day?
A modern railway sleeper changer can typically replace between 60 and 120 sleepers per shift, depending on various factors including the model of the machine, track conditions, type of sleepers, and operator experience. More advanced machines with higher levels of automation can achieve the upper end of this range, while challenging conditions might reduce the daily output.
②How does a railway sleeper changer move on and off the track?

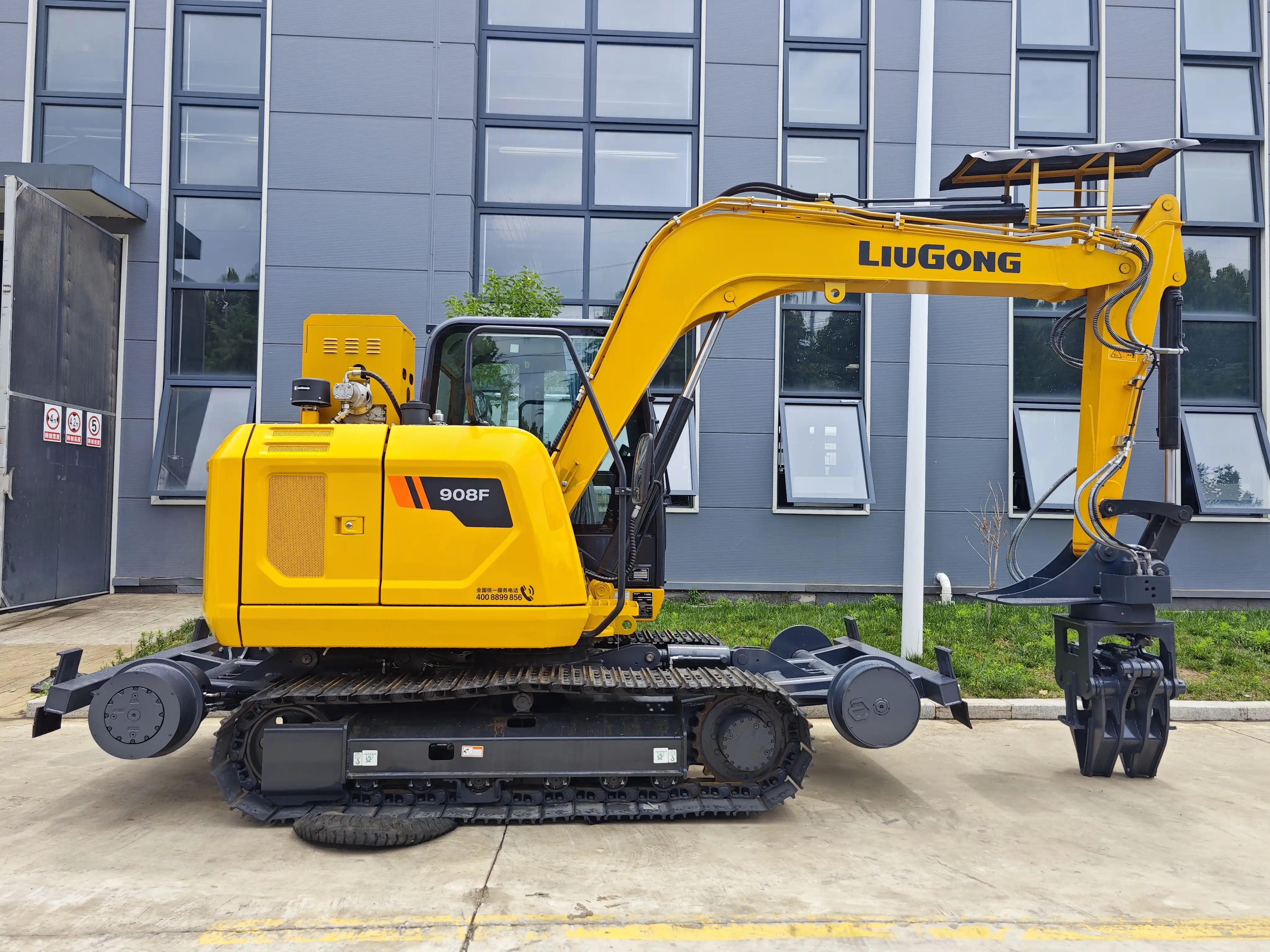

Railway sleeper changers are designed with dual mobility systems. For on-track movement, they use specialized railway wheels that allow them to travel at speeds of 10-15 km/h. For off-track movement, these machines typically have a traditional crawler undercarriage similar to excavators, enabling them to navigate normal road surfaces and access points to reach the track.
③What training is required to operate a railway sleeper changer?
Operators typically require specialized training on the specific model of sleeper changer being used, which usually takes several days to complete. This training covers machine operation, safety procedures, maintenance protocols, and railway regulations. Most manufacturers, including Tiannuo, provide comprehensive training programs for operators and maintenance personnel to ensure safe and efficient operation.
