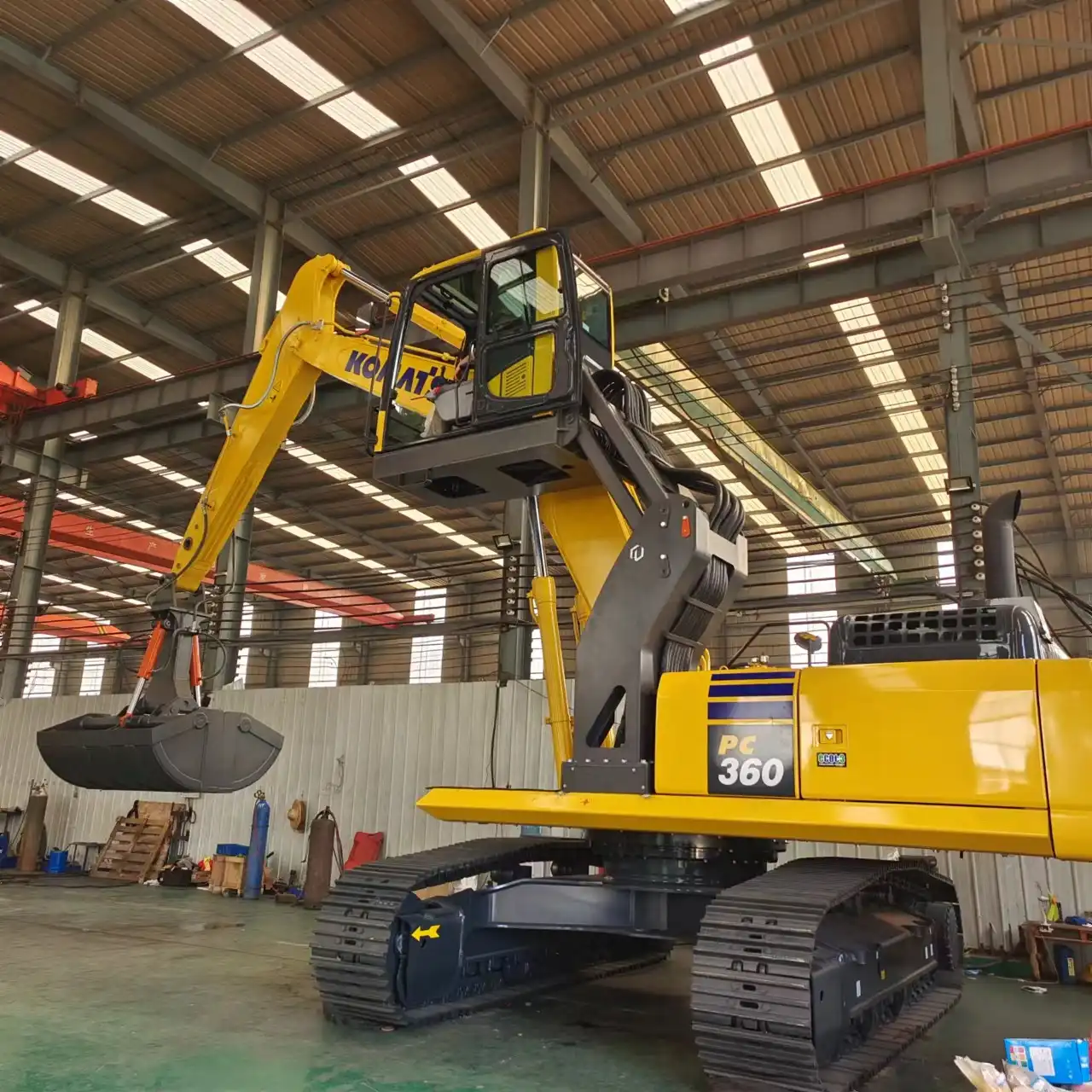

How does a clamshell bucket work?
A clamshell bucket operates through a sophisticated hydraulic system that enables precise grabbing and lifting operations in various construction environments. The mechanism employs two symmetrical shells connected by hinges that open and close like a clam. When hydraulic pressure is applied, the cylinders activate, causing the bucket to open for material collection. Upon releasing this pressure, the shells close firmly around materials such as soil, gravel, or debris. This specialized attachment excels in confined spaces where traditional excavation methods prove challenging, making it invaluable for deep trenching, material handling in ports, and precise excavation tasks. The bucket's operational efficiency stems from its ability to combine vertical lifting power with a horizontal grabbing motion, allowing operators to achieve exceptional precision even when working with loose materials or in water-logged environments.
Power Source
Hydraulic System Integration
The primary power for a clamshell bucket comes from the excavator's hydraulic system. This integration allows for seamless operation without requiring additional power sources. The excavator's hydraulic pump generates pressurized fluid that flows through hoses and valves to the bucket's cylinders. This pressurized hydraulic fluid creates the necessary force for the opening and closing actions of the bucket shells.
The hydraulic system typically operates at pressures between 3,000 to 5,000 psi, depending on the excavator model and bucket size. This high-pressure fluid travels through reinforced hoses designed to withstand the demanding conditions of construction environments. The hydraulic circuits include safety valves that prevent system overload, ensuring consistent operation even under varying load conditions.
Control Mechanisms
Operators control the clamshell bucket through dedicated levers or joysticks in the excavator cab. Modern excavators feature electronic proportional controls that allow for precise modulation of hydraulic flow. This precision enables operators to adjust the opening width and closing force based on the material being handled.
The control system includes multiple sensors that monitor hydraulic pressure, temperature, and flow rates. These sensors feed data to the excavator's onboard computer, which optimizes performance and prevents damage to the hydraulic components. Some advanced models incorporate memory functions that allow operators to preset common opening widths for repetitive tasks, enhancing productivity.
Power Distribution
Power distribution in a clamshell bucket system involves directing hydraulic pressure to different cylinders based on the desired action. The excavator's hydraulic manifold contains directional control valves that route pressurized fluid to the appropriate cylinders. When opening the bucket, hydraulic pressure flows to the extension side of the cylinders; when closing, pressure redirects to the retraction side.
This power distribution system includes flow control valves that regulate the speed of cylinder movement. By adjusting these valves, operators can increase or decrease the speed of bucket opening and closing without affecting the gripping force. The system also incorporates pressure compensators that maintain consistent performance regardless of the load weight or resistance encountered during operation.

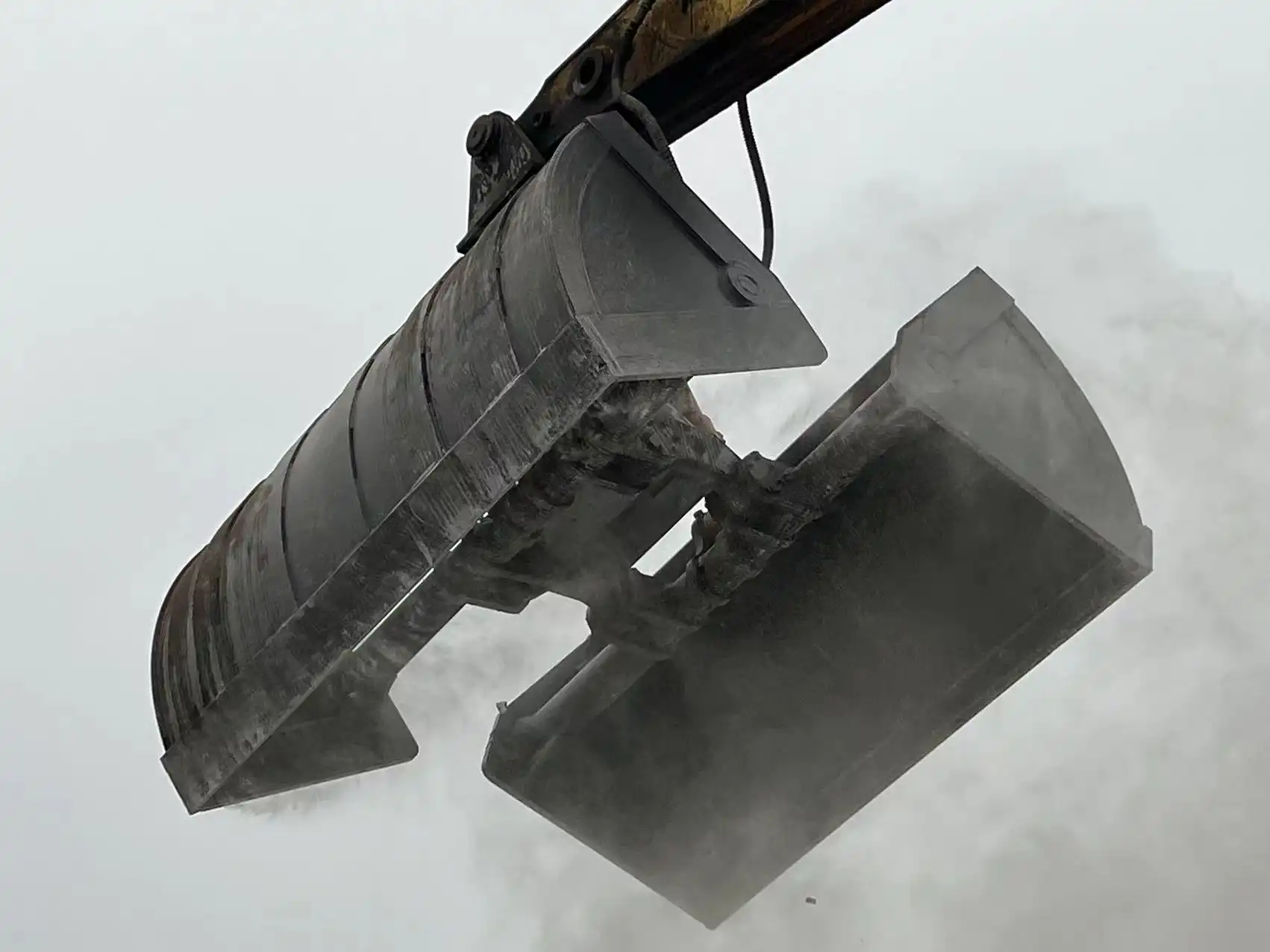

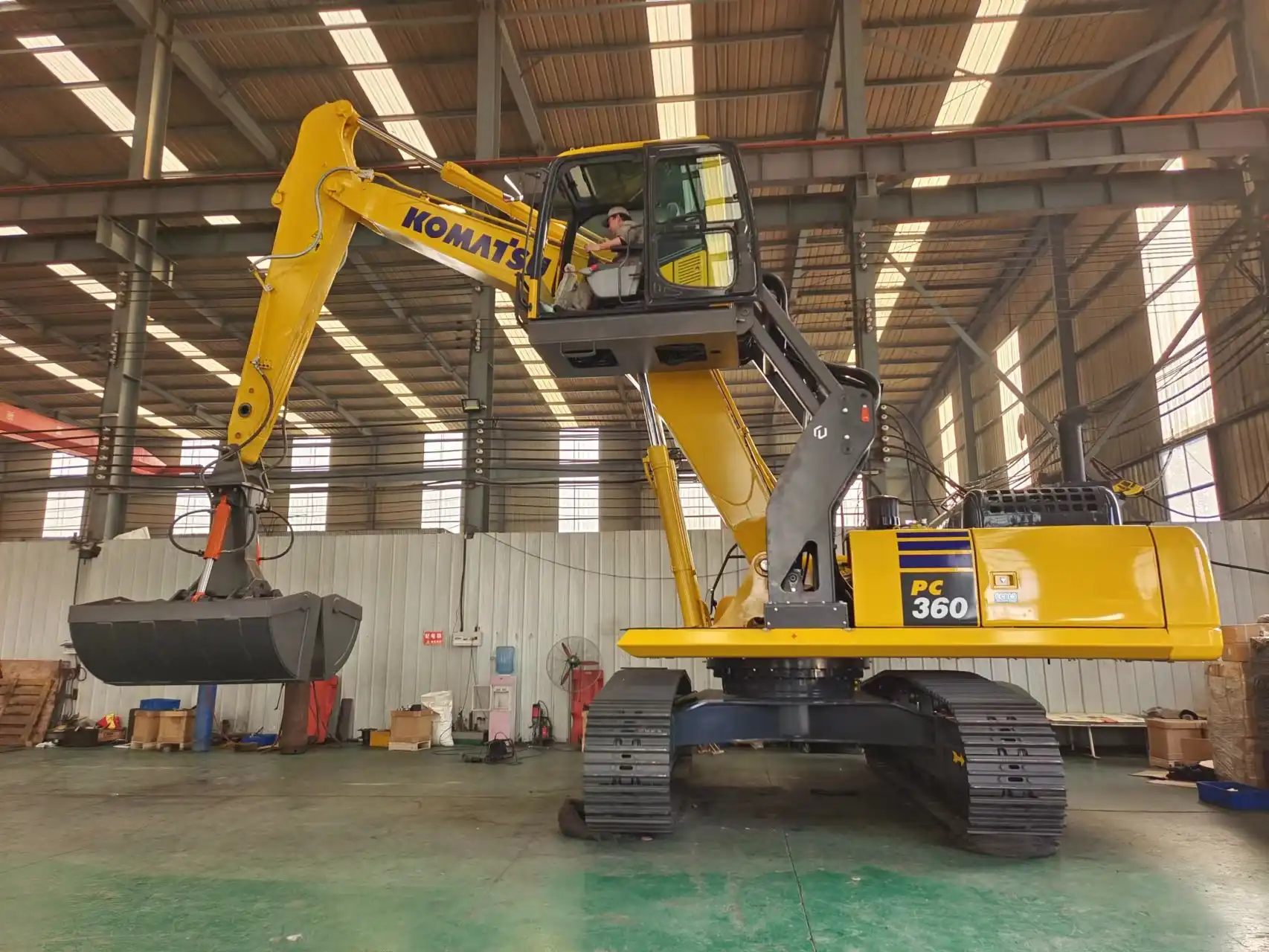

Opening And Closing Action
Hydraulic Cylinder Function
The opening and closing mechanism of a clamshell bucket relies on hydraulic cylinders strategically positioned between the two bucket halves. These cylinders consist of a piston rod that extends or retracts within a sealed chamber. When hydraulic fluid enters the cylinder chamber behind the piston, it forces the piston forward, extending the rod and opening the bucket shells. Conversely, when fluid enters the opposite chamber, the piston retracts, pulling the shells together for the closing action.
Most designs utilize dual cylinders mounted in parallel to ensure balanced force distribution across the bucket shells. This dual-cylinder configuration prevents twisting or uneven closing that could compromise grabbing efficiency. The cylinders feature chrome-plated rods and specialized seals that resist contamination from dust, dirt, and moisture prevalent in construction environments. Piston protection devices shield vital components from impact damage during operation.
Mechanical Linkage System
The mechanical linkage system transforms the linear motion of hydraulic cylinders into the rotational movement required for bucket operation. This system typically consists of pivot points, hinges, and connection arms that transfer force efficiently while maintaining structural integrity. The linkage geometry is carefully engineered to optimize the bucket's opening angle and closing force throughout its operational range.
Key components of this system include hardened steel pins at pivot points, bushings that reduce friction, and reinforced connection points that distribute stress evenly across the bucket structure. The linkage system allows for a maximum opening width of approximately 45-60 inches, depending on the model, while maintaining structural stability under load. Regular lubrication of these mechanical components ensures smooth operation and extends service life in demanding conditions.
Synchronization Mechanisms
Proper synchronization between the two bucket shells ensures even closing and optimal material retention. This synchronization occurs through mechanical connections that link both shells to a central pivot point. As hydraulic pressure activates the cylinders, both shells move at identical rates, maintaining alignment throughout the operation cycle.
Advanced clamshell buckets incorporate timing valves that regulate hydraulic flow to each cylinder, compensating for any potential imbalance caused by uneven loading or resistance. Some models feature electronic synchronization systems that use position sensors to monitor shell alignment and automatically adjust hydraulic pressure to maintain perfect synchronization. This technology proves particularly valuable when handling irregularly shaped materials or working in challenging underwater conditions.
Grabbing And Lifting
Material Engagement
The effectiveness of a clamshell bucket largely depends on its material engagement capabilities. The bucket shells feature specially designed edges that penetrate materials for secure grabbing. These edges vary based on the intended application – serrated edges for rocky materials, straight edges for sand and finer particles, or reinforced edges for demolition work. The shell design creates optimal pressure distribution across the grabbed material, preventing spillage during lifting operations.
The interior surface of the shells often incorporates wear-resistant liners that extend bucket lifespan when handling abrasive materials. Some specialized models feature perforated shells that allow water drainage when working with waterlogged materials, significantly reducing unnecessary weight during lifting operations. The shell geometry creates a compression zone that holds materials securely even when subjected to the vibrations and movements common during excavator operation.
Load Capacity Management
Clamshell buckets must effectively manage varying load weights while maintaining operational stability. The bucket's load capacity typically ranges from 0.2 to 2.0 cubic meters, depending on the model and excavator size compatibility. Weight distribution across the bucket structure plays a crucial role in preventing stress concentration that could lead to structural failure.
Built-in pressure relief valves within the hydraulic system prevent overloading by automatically releasing excess pressure when the bucket encounters resistance beyond its design capacity. Load-sensing technology in advanced models monitors the weight and adjusts hydraulic pressure accordingly, optimizing energy efficiency while extending component life. The bucket's center of gravity shifts during operation, requiring sophisticated stabilization systems that compensate for these changes to maintain excavator balance.
Precision Control Features
Modern clamshell buckets incorporate numerous features that enhance operational precision. Proportional hydraulic controls allow operators to modulate closing force based on material characteristics – applying greater pressure for dense materials and reduced pressure for fragile items. This variable pressure capability proves invaluable in demolition work where selective material grabbing is required.
Position sensors installed at key points provide real-time feedback on bucket shell position, allowing for millimeter-precise positioning when working in confined spaces. Some advanced models feature programmable stopping points that allow operators to preset partial opening positions for specialized tasks. Rotation mechanisms enable 360-degree bucket rotation, eliminating the need to reposition the entire excavator when working in tight spaces or performing complex material handling tasks.
FAQ
1. What are the main applications for clamshell buckets?
Clamshell buckets excel in numerous applications including deep excavation in confined spaces, bulk material handling in ports and terminals, underwater excavation, precise trenching for utilities, dredging operations, demolition waste management, and railway maintenance tasks where targeted material removal is required.
2 . How do hydraulic and mechanical clamshell buckets differ?
Hydraulic clamshell buckets utilize the excavator's hydraulic system for operation, offering precise control and variable pressure capabilities. Mechanical versions rely on cables and pulleys for opening and closing actions, providing simpler operation but with less precise control. Hydraulic models generally offer higher grabbing force and better productivity in demanding applications.
3 . What maintenance does a clamshell bucket require?
Regular maintenance includes greasing all pivot points and hinges, inspecting hydraulic components for leaks, checking shell edges for wear, examining hydraulic cylinders for damage, and ensuring all fasteners remain properly torqued. Replacement of wear parts such as cutting edges and liners should be performed as needed based on visual inspection.
High-Quality Clamshell Buckets
The bucket represents an essential tool in modern construction, mining, and material handling operations. Its unique design combines powerful hydraulic systems with precision mechanical components to deliver exceptional grabbing and lifting capabilities. By understanding the fundamental principles behind its operation – from power source integration to sophisticated control mechanisms – operators can maximize productivity while extending equipment lifespan.
For those seeking high-quality clamshell buckets engineered for durability and performance, Tiannuo Machinery offers comprehensive solutions tailored to specific industry requirements. Our products incorporate advanced features while maintaining the reliability demanded by professional operators. To learn more about our excavator attachments or to discuss your specific application needs, please contact us at arm@stnd-machinery.com, rich@stnd-machinery.com, or tn@stnd-machinery.com.
References
Johnson, M. (2023). Heavy Equipment Hydraulic Systems: Principles and Applications. Construction Engineering Journal, 45(3), 112-128.
Zhang, L., & Williams, T. (2022). Advanced Excavator Attachments in Modern Construction. International Journal of Construction Technology, 18(2), 75-89.
Roberts, C. (2023). Material Handling Equipment: Design and Operation. Industrial Engineering Press.
Thompson, S., & Davis, R. (2022). Hydraulic Systems in Construction Equipment: Maintenance and Troubleshooting. Equipment Technology Review, 29(4), 203-217.
Chen, Y., & Miller, J. (2023). Railway Maintenance Equipment: Innovations and Applications. Railway Engineering Quarterly, 37(1), 58-72.
