How do wood clamps attach to an excavator?
Excavator wood clamps are essential attachments in the forestry and logging industries, enabling efficient handling and transportation of logs and timber. These versatile tools enhance the capabilities of excavators, transforming them into powerful wood-handling machines. But how exactly do these clamps attach to an excavator? In this comprehensive guide, we'll explore the various attachment methods for excavator wood clamps, focusing on three primary systems: the Quick Coupler System, Pin Hitch System, and Hydraulic Integration.
Quick Coupler System
The Quick Coupler System is a popular and efficient method for attaching wood clamps to excavators. This system allows operators to switch between different attachments rapidly, significantly reducing downtime and increasing productivity on job sites. The Quick Coupler System consists of two main components: the coupler itself, which is mounted on the excavator's arm, and the attachment pins on the wood clamp.
To attach a wood clamp using the Quick Coupler System, the operator aligns the coupler with the attachment pins on the clamp. Once aligned, the coupler's locking mechanism engages, securely fastening the wood clamp to the excavator. This process can typically be completed in a matter of minutes, often without the operator needing to leave the cab.
One of the key advantages of the Quick Coupler System is its versatility. Many quick couplers are designed to be compatible with a wide range of attachments, not just wood clamps. This flexibility allows operators to switch between various tools throughout the day, adapting to different tasks and job requirements with ease.
However, it's important to note that not all Quick Coupler Systems are created equal. When selecting a wood clamp with a Quick Coupler attachment, it's crucial to ensure compatibility with your specific excavator model and coupler type. Some manufacturers offer universal quick couplers, while others produce brand-specific systems.
Regular maintenance of the Quick Coupler System is essential to ensure safe and efficient operation. This includes regular inspections of the locking mechanism, cleaning of the coupler and attachment points, and lubrication of moving parts as recommended by the manufacturer.
Pin Hitch System
The Pin Hitch System is a more traditional method of attaching wood clamps to excavators. This system relies on a series of pins and bushings to secure the attachment to the excavator's arm or stick. While it may not offer the same speed and convenience as the Quick Coupler System, the Pin Hitch System remains a popular choice due to its simplicity, reliability, and lower cost.
To attach a wood clamp using the Pin Hitch System, the operator aligns the mounting holes on the clamp with those on the excavator's arm. Steel pins are then inserted through these aligned holes and secured with locking mechanisms, typically in the form of retaining pins or bolts. This creates a solid, direct connection between the excavator and the wood clamp.
One of the main advantages of the Pin Hitch System is its strength and durability. The direct connection provided by the pins can handle high loads and stresses, making it suitable for heavy-duty applications. Additionally, the simplicity of the system means there are fewer components that can potentially fail or require maintenance.
However, the Pin Hitch System does have some drawbacks. Attaching and detaching implements using this method can be more time-consuming compared to the Quick Coupler System. It often requires the operator to leave the cab and may necessitate the use of additional tools or equipment. This can lead to increased downtime when switching between different attachments.
Despite these challenges, many operators and companies still prefer the Pin Hitch System for its reliability and cost-effectiveness. It's particularly popular in operations where attachments are changed less frequently or where the additional strength of a direct connection is beneficial.
When using a Pin Hitch System for attaching wood clamps, it's crucial to ensure that all pins are properly sized and rated for the expected loads. Regular inspection of the pins, bushings, and mounting points is essential to detect any wear or damage that could compromise the attachment's safety or performance.
Hydraulic Integration
Regardless of whether a wood clamp is attached via a Quick Coupler or Pin Hitch System, hydraulic integration is a crucial aspect of the attachment process. Excavator wood clamps rely on hydraulic power to operate their gripping mechanism, allowing them to securely hold and manipulate logs and timber.
The hydraulic integration process involves connecting the wood clamp's hydraulic lines to the excavator's auxiliary hydraulic system. Most modern excavators come equipped with auxiliary hydraulic circuits specifically designed for powering attachments. These circuits typically terminate at quick-connect couplings near the end of the excavator's arm.
To complete the hydraulic integration, the operator or technician connects the wood clamp's hydraulic hoses to these quick-connect couplings. It's essential to ensure that the connections are secure and that there are no leaks in the system. Many wood clamps require a two-way hydraulic flow to operate, allowing for both opening and closing of the clamp.
The excavator's cab is usually equipped with controls that allow the operator to direct hydraulic flow to the attachment. These controls may be in the form of foot pedals, joystick buttons, or switches, depending on the excavator model. Once the hydraulic integration is complete and the controls are properly set up, the operator can manipulate the wood clamp directly from the cab.
It's worth noting that different wood clamps may have varying hydraulic requirements in terms of flow rate and pressure. When selecting a wood clamp for your excavator, it's crucial to ensure that your machine's hydraulic system can meet these requirements. Insufficient hydraulic flow or pressure can result in poor performance or even damage to the attachment.
Regular maintenance of the hydraulic system is essential for the proper functioning of excavator wood clamps. This includes checking for leaks, replacing worn hoses, and ensuring that hydraulic fluid levels and quality are maintained according to the manufacturer's specifications.
Some advanced wood clamp models may incorporate additional hydraulic functions beyond the basic gripping mechanism. For example, some clamps feature hydraulic rotators that allow for 360-degree rotation of the attachment. These additional functions may require extra hydraulic circuits or control systems, so it's important to consider these factors when selecting and integrating a wood clamp with your excavator.

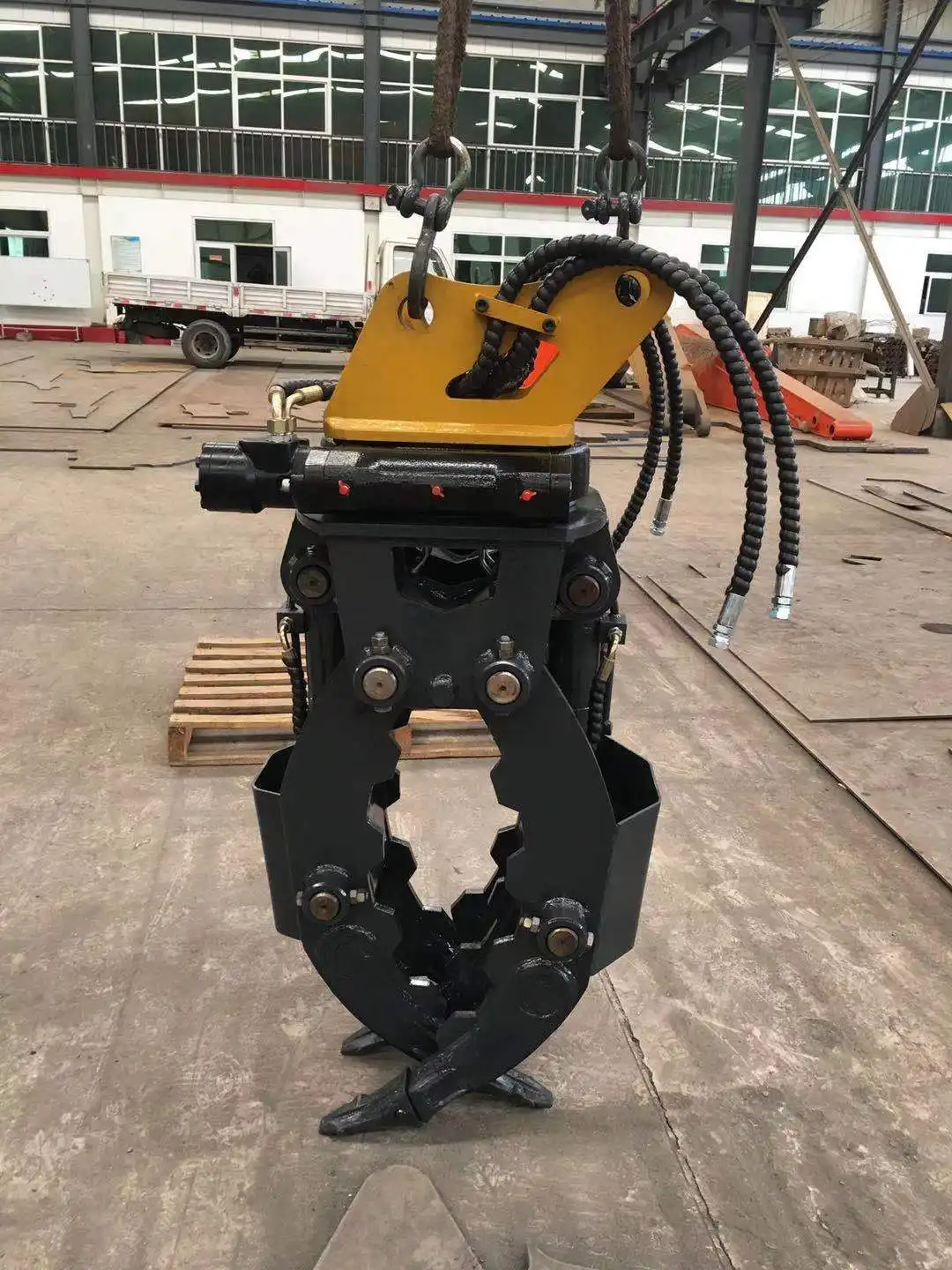

Tiannuo Machinery Excavator Wood Clamps
Excavator wood clamps are versatile attachments that significantly enhance the capabilities of excavators in forestry and logging operations. The method of attachment – whether through a Quick Coupler System or Pin Hitch System – along with proper hydraulic integration, plays a crucial role in the efficiency and effectiveness of these tools. By understanding these attachment methods, operators and managers can make informed decisions about which system best suits their operational needs, ensuring optimal performance and productivity in their wood handling tasks.
Tiannuo offers a range of excavator wood clamps designed to accommodate various excavator sizes and capacities. For 3-5 ton excavators, the clamp provides a 1250mm opening and can handle an unloading weight of up to 500 kg. For 6-10 ton excavators, the opening increases to 1400mm with a capacity of 800KG. The 11-16 ton excavators feature a 1700mm opening and can manage up to 1200 kg. For 17-22 ton excavators, the opening is 1900mm with a capacity of 1800 kg. The 23-25 ton excavators have a 2050mm opening and can handle 2300KG. These versatile clamps are designed to meet the diverse needs of excavator operations, ensuring efficient handling of heavy loads. If you are choosing your excavator wood clamps manufacturer, please feel free to reach out to our manager at arm@stnd-machinery.com and the team at rich@stnd-machinery.com and tn@stnd-machinery.com.
