Excavator Gripper Operation Manual
Excavator grippers are essential attachments for various heavy-duty tasks in construction, demolition, and material handling. These versatile tools enhance the capabilities of excavators, allowing operators to perform complex operations with precision and efficiency.
Opening and Closing the Gripper
The first step in mastering the excavator gripper operation is understanding the mechanisms for opening and closing the attachment. Most modern excavator grippers utilize hydraulic systems for smooth and controlled movement. The operator typically controls the gripper's action through joysticks or foot pedals in the excavator's cab.
To open the gripper, the operator activates the hydraulic system, which directs pressurized oil to the cylinder. This action causes the gripper's jaws to spread apart, preparing it to grasp an object. Closing the gripper involves reversing this process, with the hydraulic system retracting the cylinder and bringing the jaws together.
It's crucial for operators to practice smooth, controlled movements when opening and closing the gripper. Abrupt actions can lead to wear and tear on the equipment and potentially damage the objects being handled. Operators should aim for precise control, adjusting the speed and force of the gripper's movement as needed for different materials and situations.
Regular maintenance of the hydraulic system is essential for ensuring consistent and reliable gripper operation. This includes checking for leaks, inspecting hoses and connections, and maintaining proper fluid levels. A well-maintained system will provide smoother operation and extend the lifespan of the excavator gripper.
Gripping Objects
Once an operator has mastered the basics of opening and closing the excavator gripper, the next step is learning how to grip objects effectively. This skill is crucial for a wide range of applications, from handling construction materials to performing demolition tasks.
The first consideration when gripping an object is assessing its size, shape, and weight. The operator must ensure that the object fits within the gripper's capacity and that the jaws can securely hold it. Many modern excavator grippers feature adjustable clamp teeth, allowing operators to customize the grip for different types of materials.
When approaching an object, the operator should position the excavator arm and gripper carefully. The gripper should be aligned with the object's center of gravity to ensure a balanced lift. As the gripper closes around the object, the operator must monitor the pressure applied. Too little pressure may result in a loose grip and potential dropping of the object, while excessive pressure could damage delicate materials.
For irregularly shaped objects, operators may need to adjust the gripper's position multiple times to achieve a secure hold. This process requires patience and skill, as well as a thorough understanding of the gripper's capabilities and limitations.
Safety is paramount when gripping objects with an excavator gripper. Operators should always be aware of their surroundings, including the presence of other workers or obstacles. They should also consider the material properties of the object being gripped, as some materials may be more prone to slipping or breaking under pressure.
Lifting and Moving Objects
After successfully gripping an object, the next crucial phase in the excavator gripper operation is lifting and moving the material. This process requires a combination of skill, awareness, and adherence to safety protocols.
Before attempting to lift an object, the operator must ensure that the excavator and gripper are rated to handle the weight. Overloading can lead to equipment failure and potentially dangerous situations. It's also important to consider the object's dimensions and how they might affect the excavator's balance and stability during movement.
When lifting, the operator should raise the object slowly and steadily, monitoring for any signs of instability or slippage. The excavator's boom and arm should be positioned to maintain a stable center of gravity throughout the lift. As the object is raised, the operator may need to make minor adjustments to the gripper's position to ensure a secure hold.
Moving objects with an excavator gripper requires careful planning and execution. The operator should plan the path of movement in advance, considering obstacles, terrain, and the final placement location. Smooth, controlled movements are essential to prevent swinging or sudden shifts in the load's position.
During transportation, the object should be kept as close to the ground as safely possible. This lowers the center of gravity and reduces the risk of tipping or losing control. The operator should maintain a consistent speed and avoid sudden starts or stops that could destabilize the load.
Communication is vital when moving objects in a work environment. Operators should use established hand signals or radio communication to coordinate with ground personnel, ensuring a safe and efficient operation. This is particularly important when navigating tight spaces or working in areas with limited visibility.
When placing the object in its final location, the operator should lower it slowly and precisely. Once the object is securely placed, the gripper can be opened carefully to release it. The operator should ensure that the object is stable before fully disengaging the gripper.
China Excavator Gripper
The excavator gripper is a powerful and versatile tool that significantly enhances the capabilities of excavators across various industries. By mastering the techniques of opening and closing the gripper, gripping objects securely, and lifting and moving materials safely, operators can maximize efficiency and productivity on the job site.

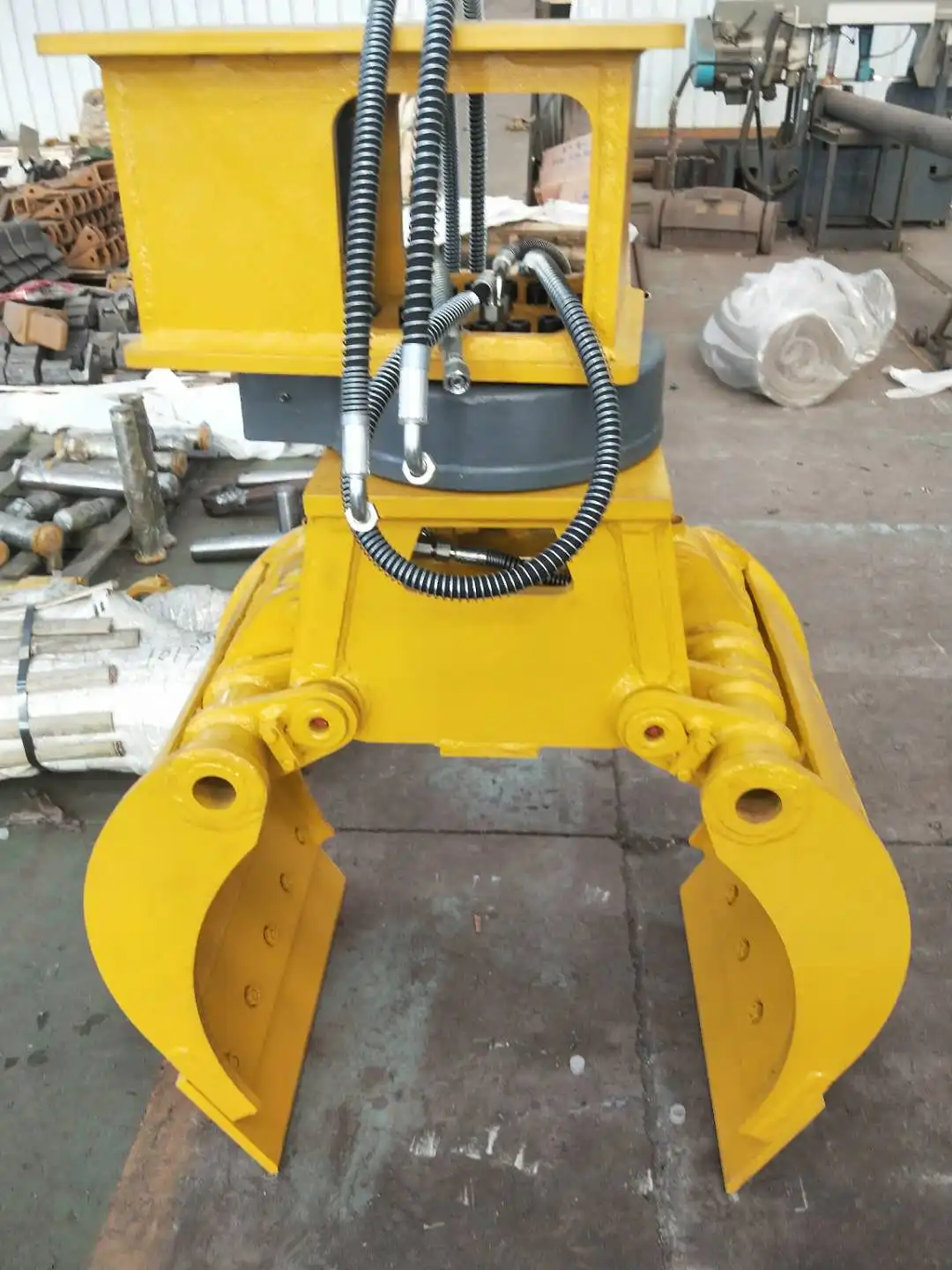

The excavator gripper, manufactured by Tiannuo Machinery, is a versatile attachment designed for various heavy-duty tasks. It features a robust Clamp Body made from high-strength steel, ensuring durability and reliability in demanding environments. The adjustable clamp teeth allow for customization to suit different tasks, making it adaptable to a wide range of applications. The Oil Cylinder powers the clamping action through hydraulic oil, providing strong and precise control. A Pipeline connects the cylinder to the control valve, facilitating smooth operation. The hydraulic system efficiently controls the clamp movement using pressure oil, enabling efficient excavation, demolition, ore extraction, and slope cleaning.
If you are choosing your excavator gripper manufacturer, we welcome you to contact our team. Our manager's email is arm@stnd-machinery.com, and our team members can be reached at rich@stnd-machinery.com and tn@stnd-machinery.com. We're here to assist you in finding the perfect excavator gripper solution for your specific needs.
