Excavator Cab Riser Applicable Models
Selecting the right excavator lift cab for your machine requires careful consideration of various compatibility factors that extend beyond simple tonnage specifications. At Tiannuo Machinery, we've engineered our excavator cab risers to work seamlessly with excavators ranging from 13 to 50 tons, with customizable lifting heights up to 2500mm. The compatibility of a lift cab system depends on several critical factors, including the machine's structural integrity, hydraulic capacity, and electrical systems. Our cab risers are designed to enhance operator visibility by elevating the cab position to approximately 3800mm from ground level while extending forward visibility by 800mm, ultimately providing operators with an expansive field of vision between 5000-5300mm. This comprehensive guide explores which excavator models work best with our lift cab systems and what technical specifications you should consider before upgrading your equipment.

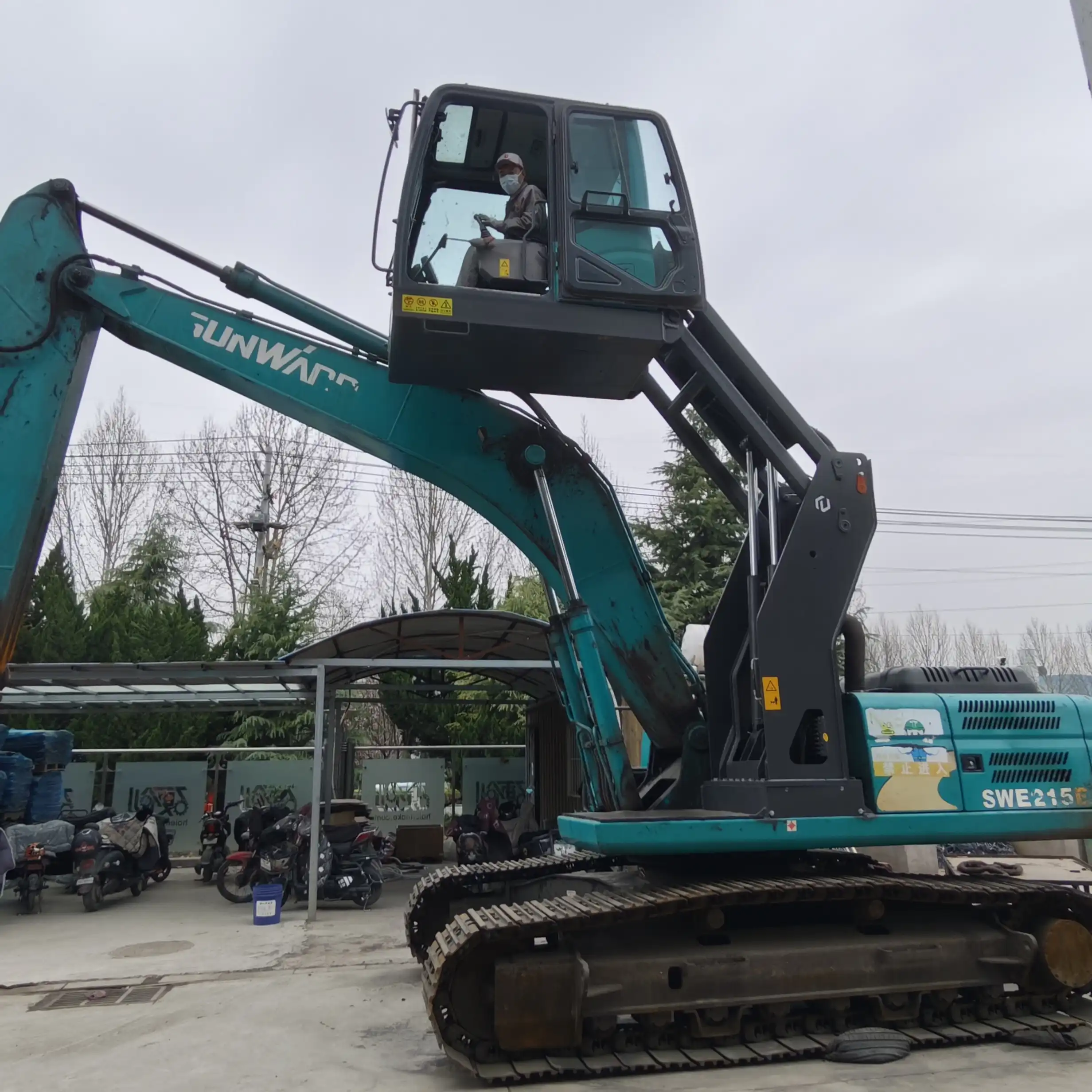

Tonnage Range
Structural Integrity Requirements

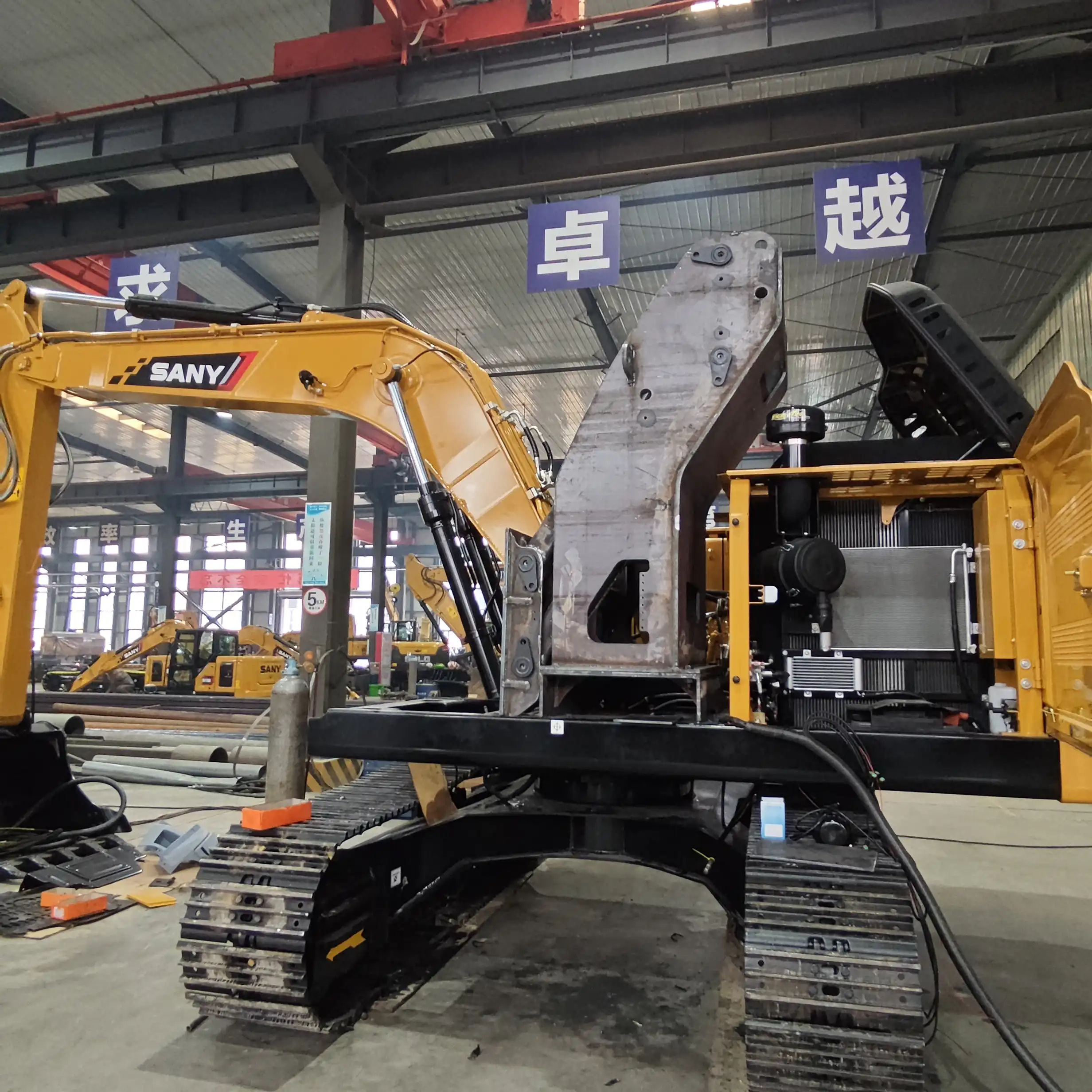

When considering an excavator lift cab installation, the machine's structural integrity is paramount. The slewing platform must have sufficient bearing capacity to support the additional weight of the cab riser system plus any counterweight adjustments. For most standard 2.5m cab risers, you'll need to account for approximately 300kg of additional weight. This means your excavator's upper structure needs to be robust enough to handle this extra load without compromising stability or operational safety.
For 13-20 ton excavators, we typically recommend our lightweight series of cab risers which are specifically designed with reduced weight materials while maintaining structural integrity. These models include popular machines like the PC130, PC138, and PC160 series excavators, which have proven compatibility with our systems.
Mid-range excavators from 20-30 tons (such as PC200, PC220, and PC240 series) can generally accommodate our standard lift cab systems without significant modifications. Their slewing platforms are designed with ample load capacity, making them ideal candidates for visibility enhancements.

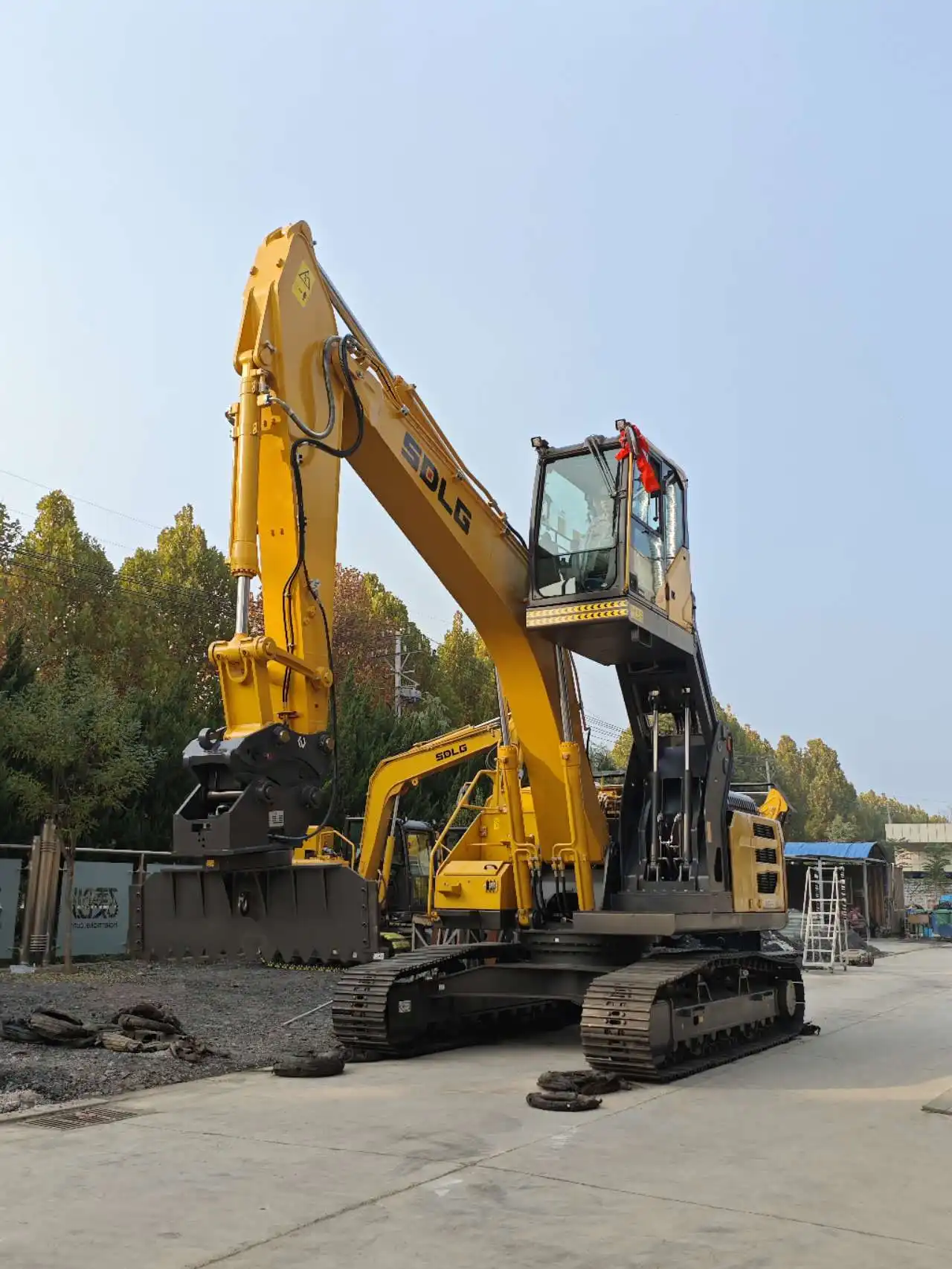

For larger machines in the 30-50 ton range (PC300, PC350, and PC400 series), our heavy-duty cab risers provide exceptional stability even at maximum extension heights. These excavators feature reinforced chassis designs that easily accommodate the additional weight distribution requirements.
Counterweight Considerations
When installing an excavator lift cab, counterweight adjustments are often necessary to maintain machine balance. The general rule is that for every 2.5m of cab height increase, approximately 300kg of counterweight should be added to the rear of the machine. However, this varies based on the specific model and operation requirements.
For 13-20 ton models, we typically recommend a 200-250kg counterweight increase to compensate for the forward cab displacement. This ensures the machine maintains proper balance during operation, particularly when working on uneven terrain.
Mid-range excavators (20-30 tons) usually require 250-350kg of additional counterweight, while larger machines in the 30-50 ton range may need 350-450kg of counterweight adjustment to maintain optimal stability with our lift cab systems.
It's important to note that exceeding the manufacturer's specified counterweight limits can void warranties and compromise machine safety. Our engineering team works closely with clients to ensure all modifications comply with OEM specifications.
Center of Gravity Analysis
Another critical factor in determining excavator compatibility with our lift cab systems is how the modification affects the machine's center of gravity. When the cab is elevated and potentially extended forward, this shifts the machine's balance point, which can impact stability during operation.
For excavators in the 13-20 ton range, the center of gravity shift is more pronounced due to their smaller base footprint. We address this by limiting the maximum lift height and forward extension on these models to maintain safe operating parameters.
Machines in the 20-36 ton range offer greater flexibility, allowing for our full 2500mm lift height and 800mm forward extension without significantly compromising stability. These excavators have a larger structural footprint and more evenly distributed weight, making them ideal candidates for maximum visibility enhancements.
For operations requiring extreme reach or lift capabilities, excavators in the 40-50 ton range provide the most stable platform for our advanced excavator lift cab systems, including telescopic models that can be adjusted on-the-fly to match specific job requirements.
Hydraulic System Matching
Pump Capacity Requirements
The hydraulic system is the heart of any excavator lift cab installation. For proper operation, your excavator's hydraulic system must have sufficient capacity to power both the standard machine functions and the additional cab lift mechanism. Our engineers have determined that most excavators in the 13-50 ton range have adequate hydraulic resources to accommodate our lift cab systems, but there are important specifications to consider.
For optimal performance, the excavator should have a minimum main pump flow rate of 2 liters per minute dedicated to the cab lift function. This ensures smooth, controlled movement of the cab without affecting other machine operations. Most modern excavators in the 13-36 ton range easily exceed this requirement with their standard hydraulic systems.
Machines with multi-pump hydraulic systems (such as those found in 20+ ton excavators) offer the best integration options, as we can tap into secondary pumps without affecting primary digging functions. For single-pump systems commonly found in smaller machines, we install priority valves to ensure critical functions maintain proper hydraulic flow during cab operation.
For telescopic cab systems that require more frequent adjustments, we recommend excavators with hydraulic systems rated at 220 bar (3,200 psi) or higher to ensure responsive control and adequate lifting power.
Control Valve Integration
Integrating the excavator lift cab control valves with the existing hydraulic system requires careful planning and execution. Our systems are designed to work with both open-center and closed-center hydraulic architectures found across different excavator brands and models.
For 13-20 ton excavators, we typically install a dedicated proportional control valve that allows for precise speed control during cab raising and lowering operations. This valve is integrated into the existing hydraulic circuit with minimal modifications to the main control block.
Mid-range excavators (20-30 tons) often feature more sophisticated hydraulic systems with electronic proportional controls. Our engineers can integrate directly with these systems, providing seamless operation through the existing joystick controls or our dedicated cab control panel.
For larger excavators (30-50 tons) with multiple hydraulic circuits, we can implement more advanced features such as automatic leveling during lifting, programmable height presets, and emergency power-down functions that operate even when the main engine is shut down.
Hydraulic Cylinder Specifications
The hydraulic cylinders that power our excavator lift cab systems are engineered to match the specific requirements of different excavator models. These cylinders must deliver both the power needed for smooth lifting and the precision required for safe operation.
For fixed-height systems on 13-20 ton excavators, we typically employ dual synchronized cylinders with 80mm bores and 40mm rods, providing ample lifting power while maintaining compact dimensions that integrate neatly into the machine's profile.
Telescopic systems for 20-36 ton excavators utilize multi-stage cylinders with larger 100mm bores and 50mm rods, capable of extending to the full 2500mm height while supporting the cab and operator safely. These cylinders feature integrated cushioning to eliminate jolting at the end of travel.
Our premium systems for 40-50 ton excavators incorporate advanced cylinder technology with electronic position sensing, allowing for programmable height settings and automatic leveling. These heavy-duty cylinders are rated for continuous operation in the most demanding conditions, with enhanced sealing systems that prevent contamination even in dusty or wet environments.
Electrical Interface
Power Supply Requirements
The electrical interface for an excavator lift cab system must be carefully matched to the host machine's electrical architecture. Most modern excavators in the 13-50 ton range operate on 24V DC systems, which aligns perfectly with our lift cab control requirements.
For basic fixed-height systems, power requirements are minimal, typically drawing less than 5 amps during operation. These systems can be connected directly to the excavator's auxiliary power circuit without affecting other electrical functions.
Telescopic and advanced lift cab systems require more substantial power resources, drawing up to 15 amps during operation. For these installations, we recommend connecting to the excavator's main power distribution block with appropriate circuit protection.
All our systems include voltage regulation and surge protection components to ensure reliable operation even with fluctuating input voltages commonly experienced during heavy machine operation. This protects both the lift system and the excavator's electrical components from potential damage.
Control System Compatibility
The control systems for our excavator lift cab installations are designed to integrate seamlessly with the host machine's existing electrical architecture. We offer several control interface options to match different excavator models and operator preferences.
For 13-20 ton excavators with simpler electrical systems, we typically install a standalone control panel with dedicated switches for lift/lower functions. This approach minimizes integration requirements while providing reliable, intuitive operation.
Mid-range excavators (20-30 tons) with more sophisticated electrical systems can benefit from our integrated control solution, which interfaces with the machine's existing joystick controllers. This allows operators to adjust cab height without removing their hands from the primary controls.
For premium installations on 30-50 ton excavators, we offer advanced control systems with touchscreen interfaces that provide not only lift/lower functionality but also status monitoring, maintenance reminders, and programmable height presets that can be saved for different operating conditions.
Safety Circuit Integration
Safety is paramount in any excavator lift cab installation, and our systems include comprehensive safety circuits that integrate with the host machine's existing safety systems. These include emergency stop functions, overload protection, and failsafe lowering mechanisms.
For all excavator models, our lift cab systems include pressure relief valves that prevent overextension or excessive force application. Additionally, flow control valves ensure the cab cannot drop suddenly even if hydraulic pressure is lost.
Our one-click descent emergency system is standard across all models, allowing operators to quickly lower the cab to its base position in case of emergency. This system operates independently from the main hydraulic circuit, ensuring functionality even if the primary system fails.
For 20-50 ton excavators with more sophisticated electrical systems, we offer advanced safety features including tilt sensors that prevent operation on excessive slopes, proximity warnings for overhead obstacles, and automatic lockout when the machine is in travel mode.
FAQ
①What excavator brands are compatible with Tiannuo lift cab systems?
Our excavator lift cab systems are designed to be compatible with all major excavator brands including but not limited to Komatsu, Caterpillar, Hitachi, and others in the 13-50 ton range. Our engineering team creates custom mounting solutions specific to each machine model, ensuring proper fit and function regardless of brand.
②Can a lift cab be installed on excavators smaller than 13 tons?
While technically possible, we don't recommend installing lift cabs on excavators smaller than 13 tons due to stability concerns. The added weight and height significantly affect the machine's center of gravity, potentially creating unsafe operating conditions. For special applications requiring enhanced visibility on smaller machines, we recommend alternative solutions such as camera systems or specialized attachments.
③How does adding a lift cab affect fuel consumption?
Most customers report minimal impact on fuel consumption after installing our excavator lift cab systems. The additional hydraulic demand during cab adjustment is temporary and intermittent. Once positioned, the system requires no additional power to maintain height. The slight increase in machine weight (approximately 300kg) has a negligible effect on overall fuel efficiency during normal operations.
④Is it possible to reinstall the original cab if needed?
Yes, our lift cab installations are designed to be reversible if required. We preserve all original mounting points and connections, allowing for the excavator to be returned to its original configuration if needed. This is particularly valuable for rental fleet operators or companies that may want to resell the machine in its standard configuration in the future.
At Tiannuo Machinery, we're committed to helping you find the perfect excavator lift cab solution for your specific equipment and operational needs. Whether you're working in material handling, demolition, forestry, or railway maintenance, our customizable lift cab systems can dramatically improve operator visibility, safety, and productivity. For more information about compatibility with your specific excavator model or to discuss custom solutions for unique applications, please contact our technical team at tn@stnd-machinery.com.
